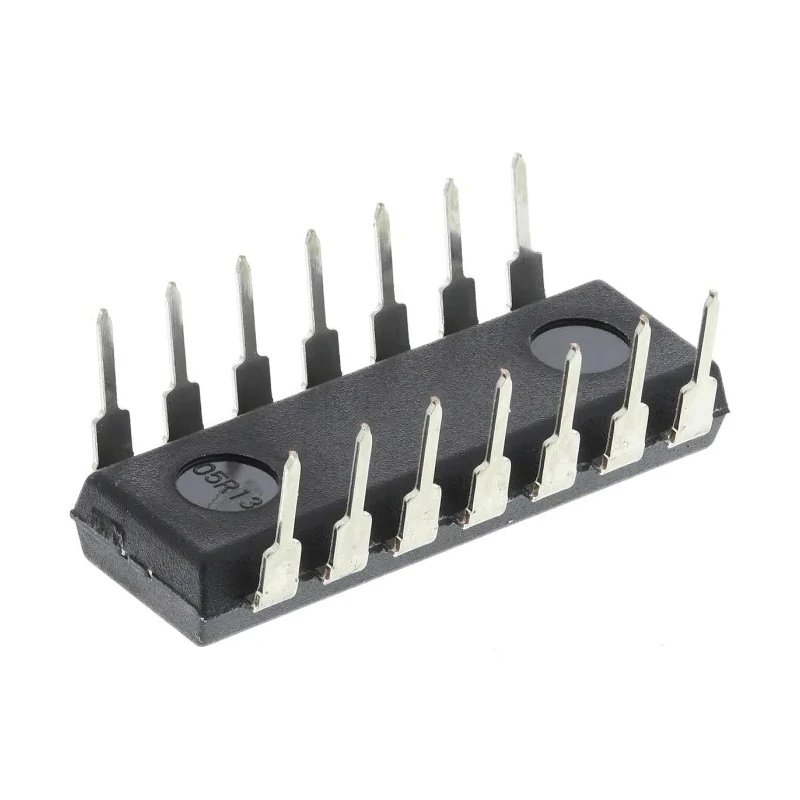

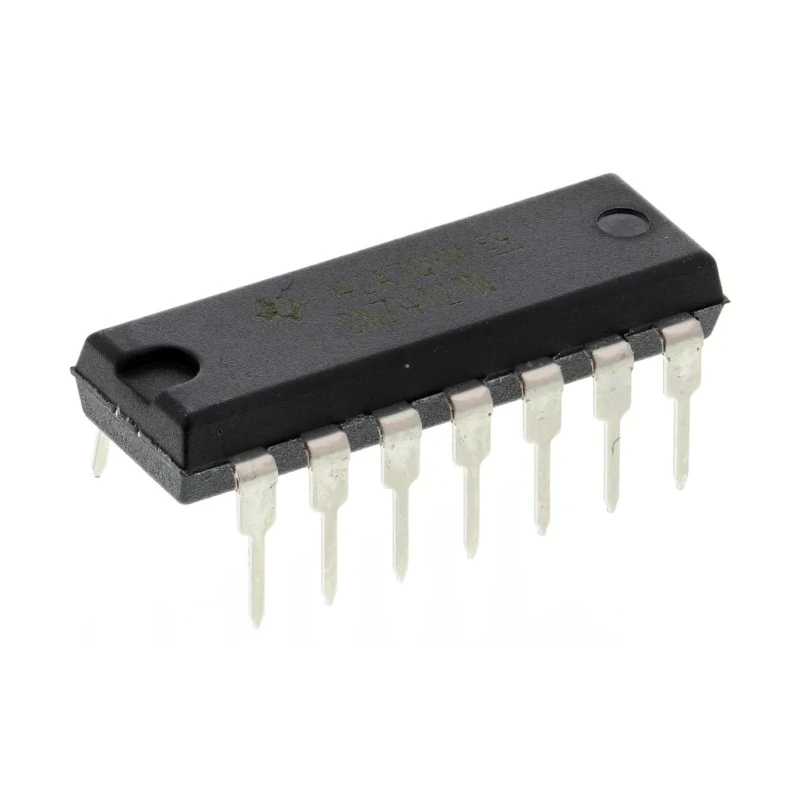

Texas Instruments Monostable Multivibrator IC 74 Series, 16 mA Output, PDIP, 14-Pin, SN74121N

The Texas Instruments SN74121N is a high-performance monostable multivibrator integrated circuit from the 74 series logic family, designed for demanding digital timing and pulse shaping applications. Its standard TTL input and output levels make it suitable for a broad range of industrial, laboratory, and electronics projects.

This IC integrates one monostable multivibrator element per chip, supporting output currents up to 16 mA and featuring a maximum high-level output current of -0.4 mA. It operates across a supply voltage range of 4.75 V to 5.25 V, ideal for TTL-compatible circuits, and utilizes a PDIP package with through-hole mounting, making it convenient for prototyping and permanent installations.

The SN74121N is built to support pulse widths as short as 50 ns, making it highly effective for rapid signal processing and timing generation in electronic systems. Its 14-pin PDIP form factor is widely supported by sockets and PCB layouts, providing engineers flexibility in design and integration.

Additional benefits include a maximum propagation delay time of 80 ns and a quiescent current capped at 13 mA, which help maintain efficient operation and precise timing. The IC is engineered to withstand temperature ranges from 0°C up to 70°C, making it suitable for commercial and light industrial environments.

Common use cases include pulse generation, clock synchronization, signal conditioning, and digital timing circuits in manufacturing, laboratory instrumentation, and industrial automation. Its compliance with the 74xx logic standard further extends its compatibility with numerous existing TTL systems.

The SN74121N comes from the proven Texas Instruments brand, renowned in semiconductor manufacturing. With its robust performance parameters and reliable TTL operation, this IC is ideal for circuit designers, R&D teams, and electronic engineers requiring precise pulse shaping and timing control.

Monostable multivibrator IC based on the 74 series standard TTL logic. Operating supply voltage from 4.75 V to 5.25 V ensures compatibility with TTL circuitry. Features one element per chip and a maximum low-level output current of 16 mA.

PDIP package with through-hole mount and a 14-pin configuration. Supports pulse widths as low as 50 ns for fast switching applications. Maximum propagation delay time of 80 ns suits high-speed digital designs. Working temperature range from 0°C to 70°C for robust performance in electronics.

Maximum quiescent current is 13 mA, optimizing power consumption. Explore more Logic ICs and Texas Instruments products in the EnvMart semiconductor category for advanced timing and signal processing solutions.
