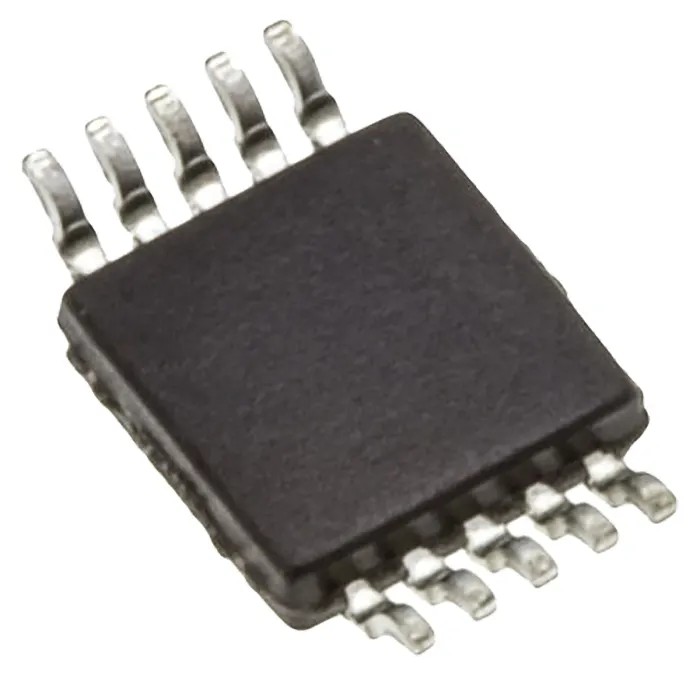

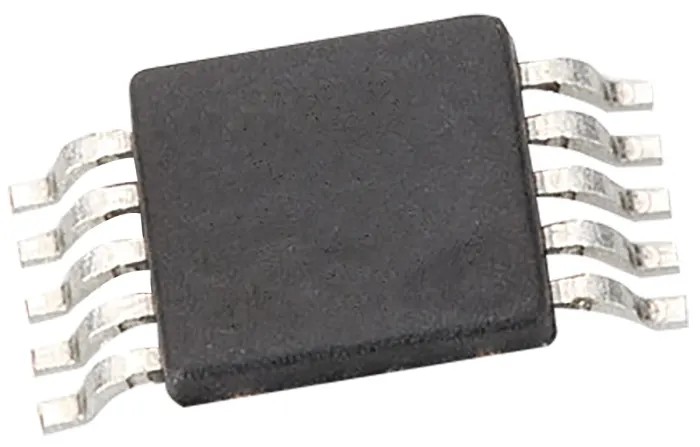

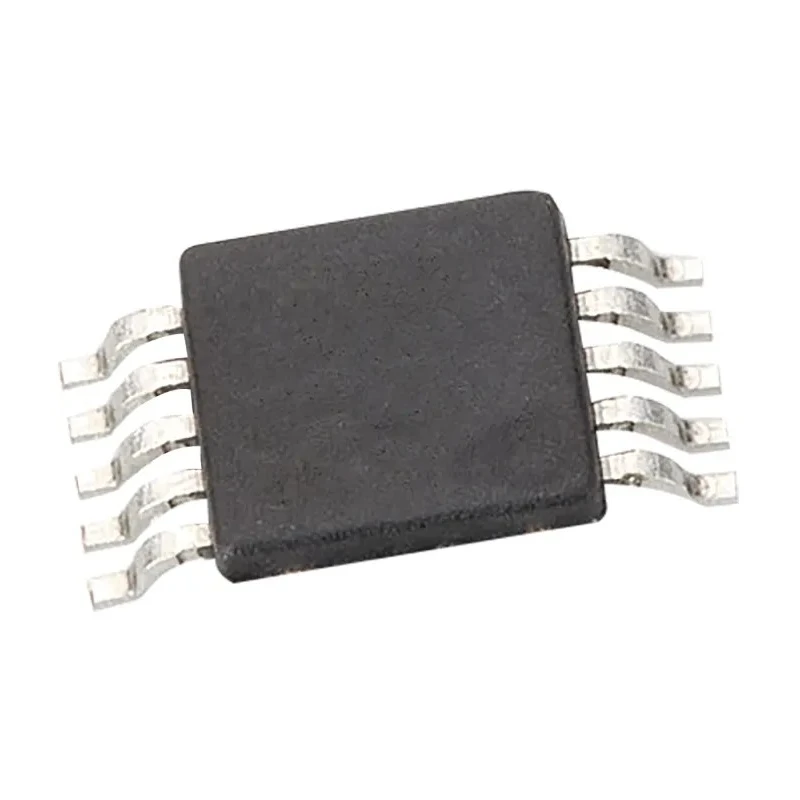

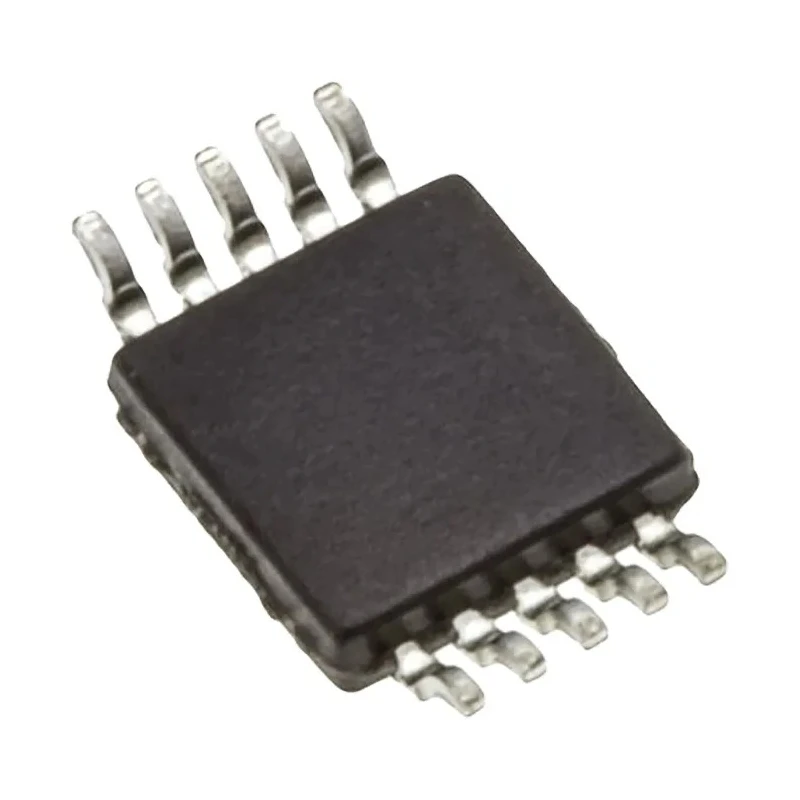

Texas Instruments Dual SPDT CMOS Multiplexer/Demultiplexer IC Surface Mount MSOP 10-Pin TS5A23159DGST
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.02mm |
| Length | 3mm |
| Model | TS5A23159DGST |
| Width | 3mm |
| Mount Type | Surface |
| Output type | CMOS |
| Configuration | Dual SPDT |
| Maximum Operating Temperature | 85°C |
| Package Type | MSOP |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 10 |
| Number of Elements per Chip | 2 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | CMOS |
| Minimum Supply Voltage | 1.65V |
| Multiplexer/Demultiplexer | Demultiplexer, Multiplexer |
| Maximum On State Resistance | 1.5Ω |
Key Features
- Operates with a supply voltage range from 1.65 V to 5.5 V.
- Features two independent dual SPDT switches per chip for versatile signal selection.
- Surface mount MSOP package with a 10-pin count provides compact installation for PCBs.
- Maximum on-state resistance is 1.5 Ω, ensuring minimal signal loss.
- Supports operating temperature from -40°C to 85°C for broad environmental compatibility.
- Logic family CMOS technology enhances low power consumption.
- RoHS compliant for global sustainability requirements.
Product Description
Texas Instruments TS5A23159DGST Dual SPDT Multiplexer/Demultiplexer IC is a high-performance signal switch designed to optimize electronic designs through reliable and flexible signal routing and selection. This IC utilizes CMOS technology for efficient operation and low power consumption, making it suitable for modern digital and analog systems where space and energy efficiency are critical.
The TS5A23159DGST integrates two dual SPDT (Single Pole Double Throw) elements per chip, allowing simultaneous switching and demultiplexing across multiple channels. Its output type is CMOS, further enhancing compatibility with contemporary logic circuits and minimizing power draw during operation. The surface mount package (MSOP, 10-pin) is particularly suited to applications requiring dense PCB layouts.
Engineered to operate within a wide supply voltage range from 1.65 V to 5.5 V, this multiplexer/demultiplexer accommodates varying voltage requirements across projects. With a maximum on-state resistance of 1.5 Ω, signal integrity is well maintained, making the device ideal for low-loss analog and digital switching tasks. The IC is tested for robust environmental performance, supporting an operating temperature range from -40°C to 85°C.
Applications for the TS5A23159DGST include signal path isolation, connector sharing, circuit minimization, and routing simplification in industrial, laboratory, manufacturing, and commercial electronics. It enables efficient circuit design, reduces PCB real estate usage, and supports flexible configuration in development and final builds.
The MSOP 10-pin package ensures ease of surface mounting with minimal space usage - dimensions are 3 mm x 3 mm x 1.02 mm. Compliance with RoHS standards guarantees the device is suitable for international industry deployment, including applications with strict regulatory requirements.
Texas Instruments is recognized for high-performance logic ICs, and this multiplexer/demultiplexer carries the company’s hallmark quality for demanding signal switching environments. Typical use cases include industrial automation, laboratory instrumentation, telecommunications, PCB design, and embedded systems.
Explore more advanced signal switching, multiplexing, and demultiplexing IC solutions from Texas Instruments and other global leaders in Logic ICs via EnvMart's Electronics & Electricals catalog.
