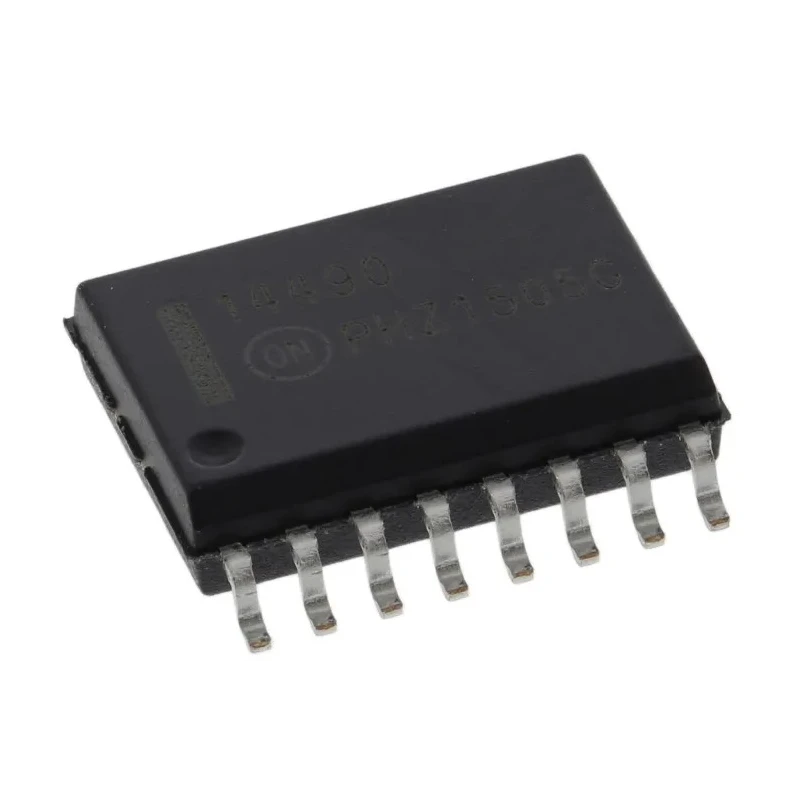

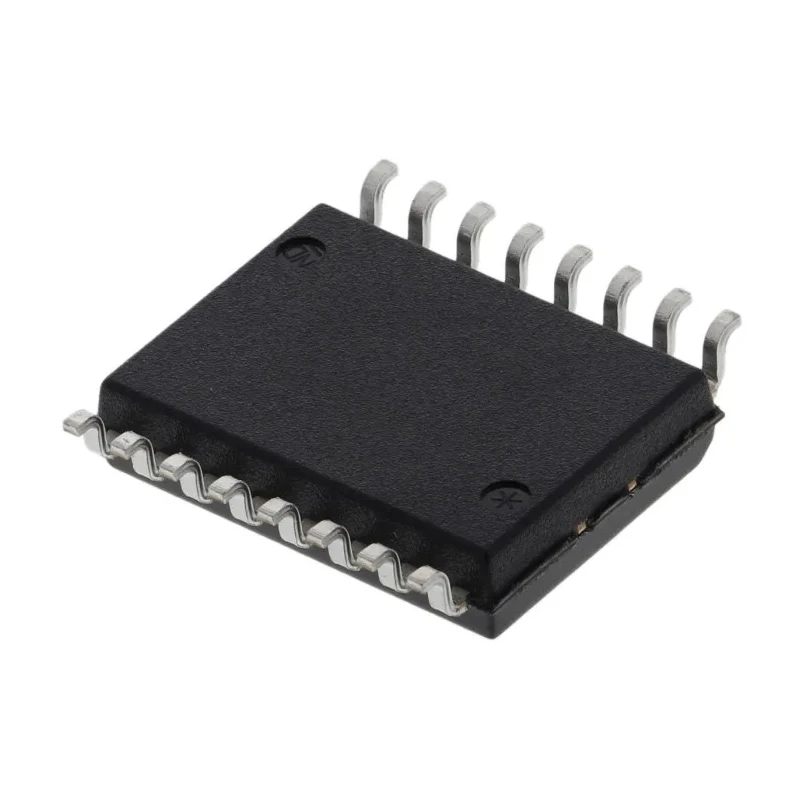

onsemi Bounce Eliminator Circuit 16-Pin SOIC, 3 - 18V, Logic Family 4000, MC14490DWG

onsemi MC14490DWG Bounce Eliminator Circuit is engineered to provide efficient elimination of contact bounce in digital switching environments. This device enables a clean interface between electromechanical switches and digital logic circuits, ensuring reliable and accurate signal transitions for robust circuit performance.

The circuit operates with a flexible supply voltage from 3V to 18V, allowing integration with a wide range of digital systems and industrial controllers. Its surface mount design, in a compact 16-pin SOIC package measuring 10.45mm in length and 2.4mm in height, facilitates straightforward PCB assembly and space-efficient layouts.

Belonging to logic family 4000, the MC14490DWG delivers fast signal processing, with a maximum propagation delay time of 570 nanoseconds. It is capable of dissipation up to 500mW, and the automotive standard AEC-Q100 compliance makes it suitable for rigorous industrial, automotive, and commercial applications requiring high reliability.

The device’s wide operating temperature range from -55°C to 125°C enables stable operation in challenging environments. Typical applications include industrial control systems, manufacturing machinery, laboratory automation, and commercial electronics where precise input handling is vital.

Key features include surface mounting, broad voltage handling, reliability in logic switching, and robust temperature tolerance. This component empowers designers to achieve accurate switch debouncing in digital circuits, minimizing errors and enhancing signal clarity.

Offers precise contact bounce elimination for electronic switching operations. Supports a wide input supply range from 3V to 18V, providing compatibility with various logic circuits. Surface mount design in 16-pin SOIC package for easy board integration.

Logic family 4000 ensures robust digital performance and reliability. Maximum propagation delay time of 570ns for fast signal processing. Operating temperature range from -55°C to 125°C suitable for industrial and commercial environments.

Maximum power dissipation up to 500mW to support demanding loads. Automotive standard AEC-Q100 compliant for high reliability applications.

This bounce eliminator circuit can be used in industrial control panels, laboratory instrumentation, and commercial digital interfaces. Browse more advanced solutions in Logic ICs and discover additional onsemi products in the EnvMart catalog for tailored electronic designs.
