Otto Hall Effect Sensor IP64, IP68 Button Actuator Linear Output 4.5-5.5 V 10 mA Supply Current 1 mA Output HPL-3322212

Name: Otto Hall Effect Sensor IP64, IP68 Button Actuator Linear Output 4.5-5.5 V 10 mA Supply Current 1 mA Output HPL-3322212
Brand: Otto
SKU: 153351
Price: 112.2 USD
Availability: InStock



Category Hall Effect Sensor Brand Otto Condition New

Specifications

Country of Origin	India
Brand	Otto
Model	HPL-3322212
IP Rating	IP64, IP68
Output type	Linear
Maximum Operating Temperature	85°C
Actuator Type	Button
Minimum Operating Temperature	-40°C
Terminal type	Solder
Maximum Output Current	1mA
Operating Force	2.0 ± 0.2 lbs
Mechanical Life	1000000Operations
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	4.5V
Supply Current	10mA
Button material	thermoplastic
Button travel	0.14 to 0.16 in

Key Features

Operates at supply current of 10 mA ensuring efficient power usage.
Maximum output current is limited to 1 mA for linear control.
Designed to operate within temperature range of -40 °C to 85 °C.
Features IP64 and IP68 ratings for robust protection against dust and immersion.
Button actuator with thermoplastic material and solder terminal type for durable connectivity.
Mechanical life rated for 1,000,000 operations ensuring long-term reliability.
Button travel distance ranges from 0.14 to 0.16 inches with operating force of 2.0 ± 0.2 lbs.
Suitable for industrial applications requiring precise linear output control.

Product Description

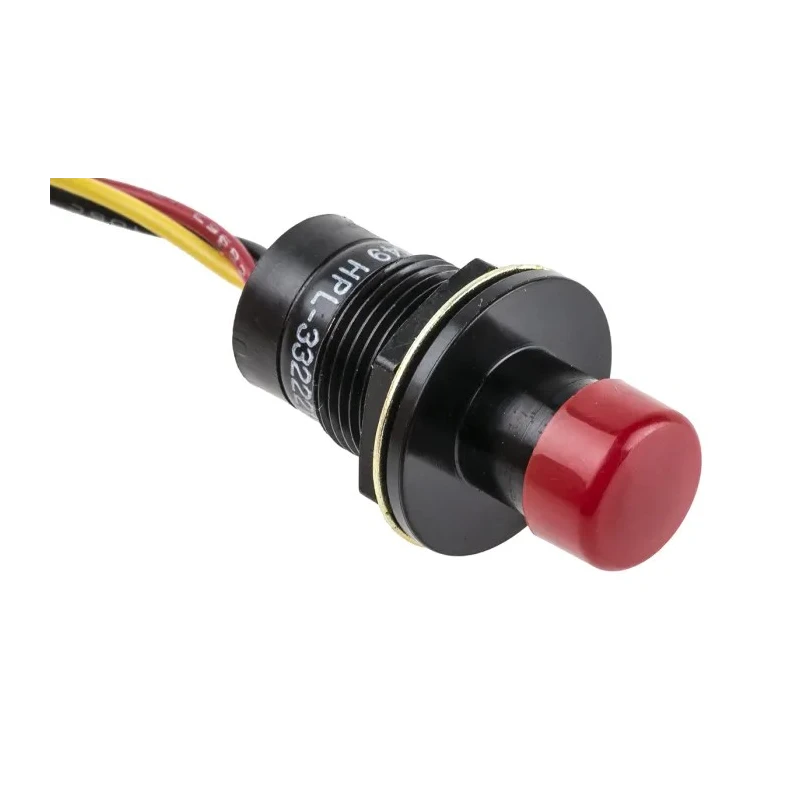

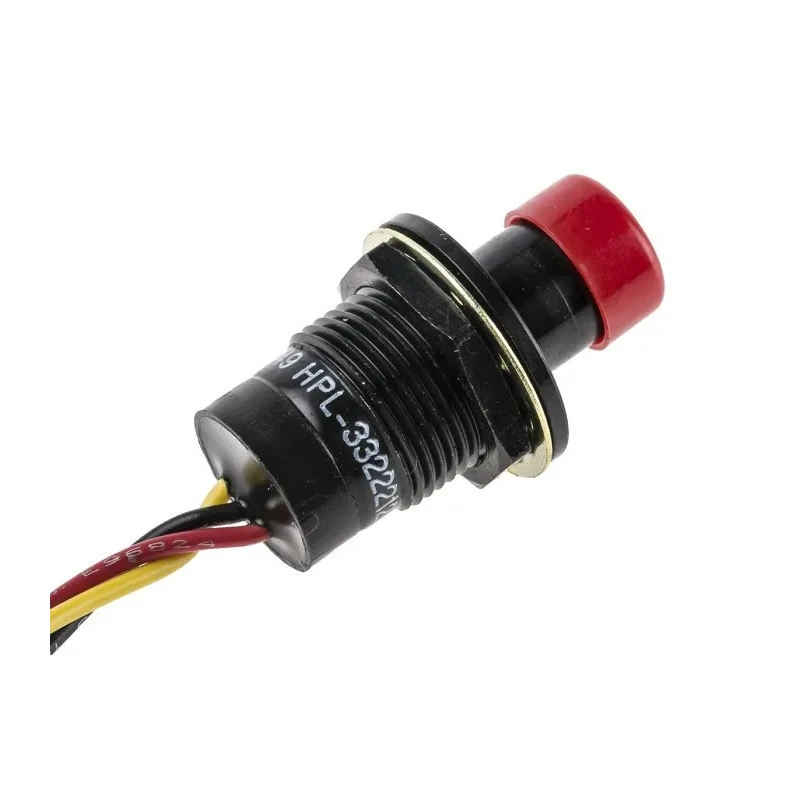

Otto HPL-3322212 Hall Effect Sensor is a linear output type sensor featuring IP64 and IP68 ingress protection ratings, making it suitable for harsh environments requiring reliable operation. It operates within a supply voltage range of 4.5 V to 5.5 V and has a supply current of 10 mA, with a maximum output current of 1 mA. The sensor’s button actuator is made of thermoplastic and has solder-type terminals for secure connections.

This Hall Effect sensor provides programmable outputs from 0.5 to 4.5 volts proportional to the travel of the button, enabling precise control of motion and speed in industrial equipment. It boasts a mechanical life of 1,000,000 operations, ensuring durability and long-term performance in demanding applications.

The sensor is designed for operation in temperatures from -40 °C up to 85 °C and features a button travel distance between 0.14 and 0.16 inches with an operating force of 2.0 ± 0.2 lbs, balancing user control and durability.

Its rugged IP64 and IP68 rated casing offers protection against dust ingress and water immersion, suited for industrial, manufacturing, heavy equipment control, and material handling environments.

Operates with supply voltage between 4.5 and 5.5 volts. Draws 10 mA supply current with a 1 mA maximum output current. Provides linear output proportional to button travel distance. Durable thermoplastic button with solder terminals.

Rated for IP64 and IP68 environmental protection. Mechanical life of 1,000,000 operations for longevity. Ideal for valve controls, variable speed drives, and industrial control applications.

This sensor is an ideal choice for engineering and industrial controls requiring reliable and precise sensor feedback under challenging operating conditions. Explore more Hall Effect Sensors and related industrial automation products on EnvMart.
