Otto P9 Series Push Button Switch Momentary Panel 0.5 in Cutout SPDT Red LED IP68 28 V dc 115 V ac P9213121W
Specifications
| Country of Origin | India |
|---|---|
| Brand | Otto |
| Operating Temperature | -55 to +85°C |
| Model | P9213121W |
| IP Rating | IP68 |
| Mount Type | Panel |
| Series | P9 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -55°C |
| Panel Cutout Size | 0.5 in |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Switch Operation | Momentary |
| Actuator Colour | Red |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 5A |
| Contact AC Voltage | 115V ac |
Key Features
- Designed for high durability with approximately one million mechanical operations.
- Sealed to IP68 standard, providing watertight protection up to 1 meter water pressure.
- Operates within temperature range from -55°C to +85°C for versatile environmental use.
- Rated contact current of 5A at 28 V dc or 115 V ac ensures reliable electrical performance.
- Includes threaded body with black bezel and provides a short panel depth of approximately 12mm.
- Equipped with 1 N/O and 1 N/C momentary contacts (form Z) for flexible circuit control.
- Suitable for use in panels, control grips, instrumentation, heavy equipment, and demanding industrial applications.
- Comes supplied with nut and panel seal gasket for secure installation and sealing.
Product Description

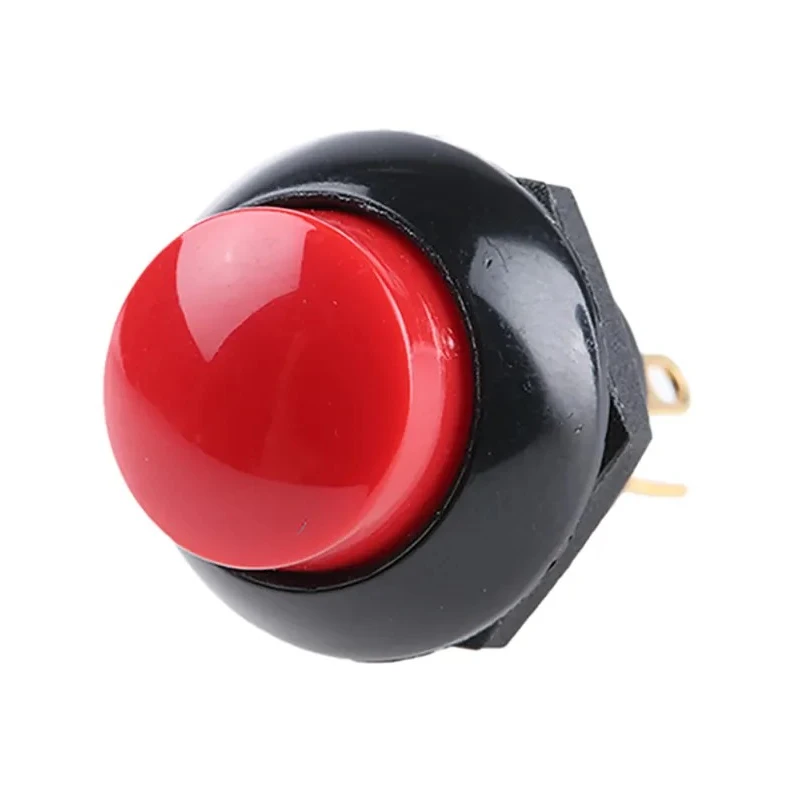

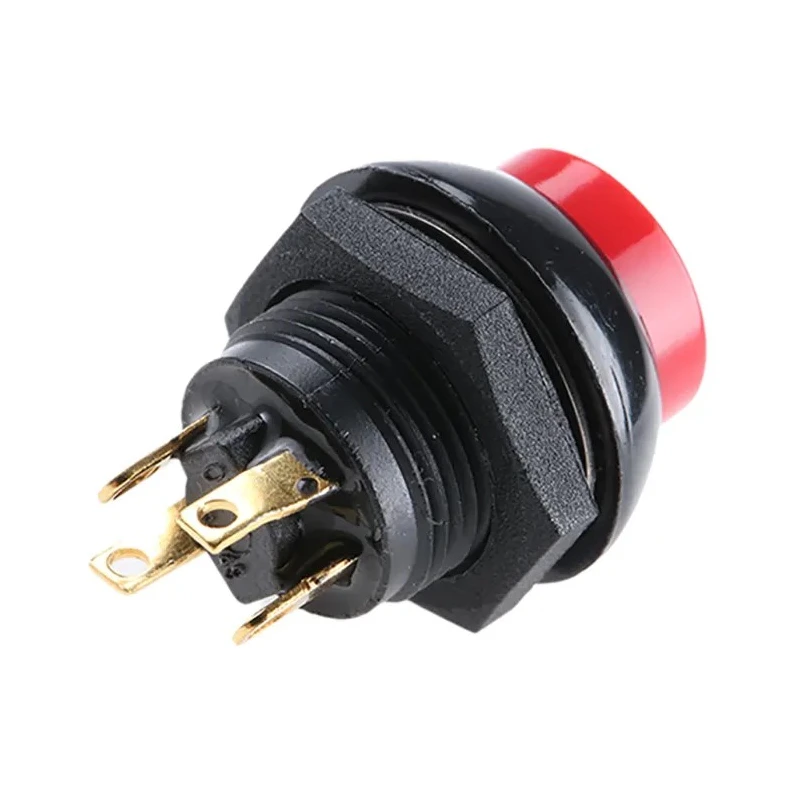

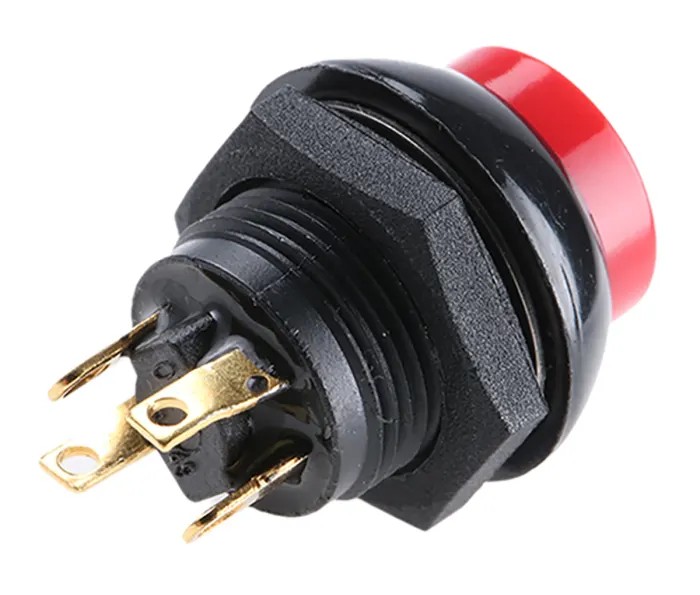

Otto P9213121W Push Button Switch is a momentary, panel mount switch from the P9 series featuring a contoured dome style push button with a black body and red LED illumination. It requires a 0.5 inch panel cutout and offers SPDT contact configuration, suitable for precise circuit switching.
This switch is designed to withstand harsh conditions with an IP68 rating, ensuring watertight sealing against submersion up to 1 meter of water pressure. It operates reliably over a temperature range from -55°C to 85°C, making it ideal for industrial, commercial, and heavy equipment applications.
The P9 series supports a contact current rating of 5A at 28 V dc or 115 V ac and includes one normally open and one normally closed momentary contact. Its threaded body design with a black bezel and short mounting depth of approximately 12mm facilitate easy and secure panel integration. The product comes with a nut and sealing gasket to enhance panel sealing.
Applications include control panels, instrumentation, automotive control grips, and other demanding environments requiring durable and precise push button control. Its momentary switch action and robust construction make it well suited for rugged industrial use.
Durable construction with approximately one million mechanical operations and 25,000 electrical operations. IP68 rated for watertight protection suitable for harsh environmental conditions. Compact design with 0.5 inch panel cutout and short panel depth for convenient installation.
Uniform contact resistance for low-level switching accuracy and reliability. Includes nut and panel seal gasket for secure mounting and environmental sealing. Compliant with RoHS environmental standards to ensure safety and sustainability.
Explore the complete Otto P9 series Push Button Switch range on EnvMart for specialized industrial and electronic control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Otto P9 Series push button switch operates within a temperature range from -55°C to +85°C.
This model has an IP68 rating, providing watertight protection suitable for submersion up to 1 meter of water pressure.
It features a Single Pole Double Throw (SPDT) contact configuration, with one normally open and one normally closed momentary contact.
The switch is rated for a contact current of 5A at 28 V dc or 115 V ac.
It requires a panel cutout size of 0.5 inches for proper installation.
This model uses solder terminals for electrical connections.
The actuator is designed as a contoured dome style and is red in color, featuring LED illumination.
It is designed for approximately one million mechanical operations, ensuring long-term usability.
Yes, it is compliant with RoHS environmental standards, ensuring safety and sustainability.
The product comes supplied with a nut and a panel seal gasket to enhance secure installation and sealing.
It is suitable for use in control panels, instrumentation, automotive control grips, and other demanding industrial applications.
The maximum operating temperature for this switch is 85°C.
