Otto Panel Mount Toggle Switch On-Off SPST Screw Terminal 20A 28V DC 115V AC T9-CS1-22

Free Delivery in India | Lowest Global Shipping Charges

Otto Panel Mount Toggle Switch On-Off SPST Screw Terminal 20A 28V DC 115V AC T9-CS1-22

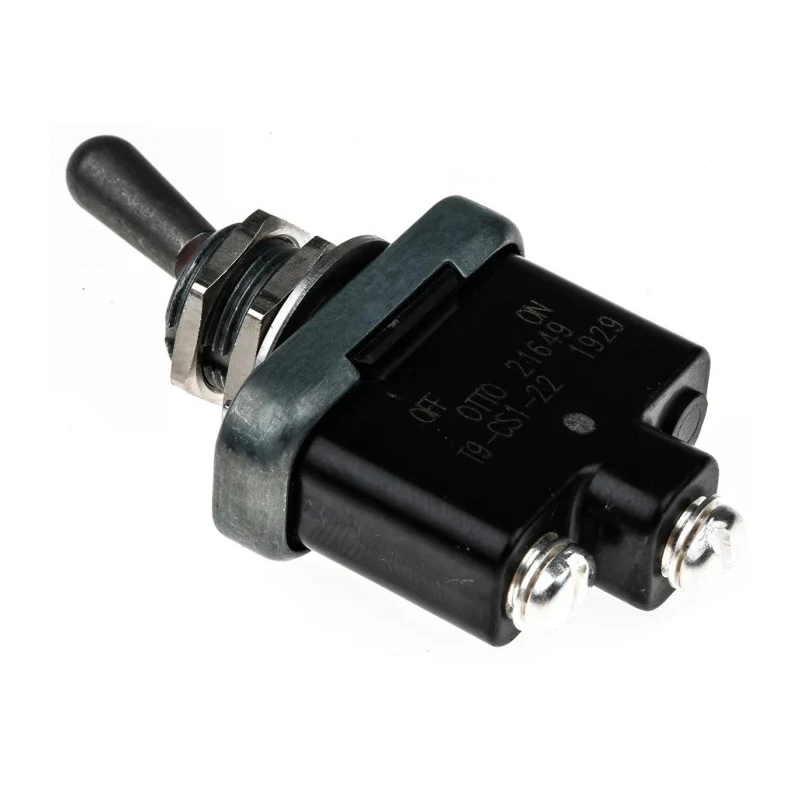

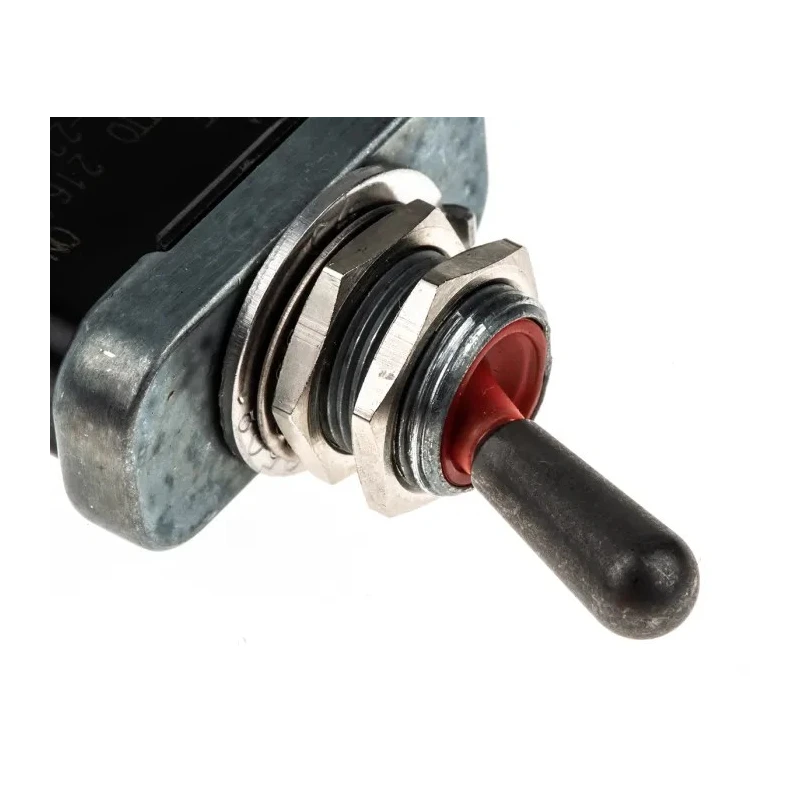

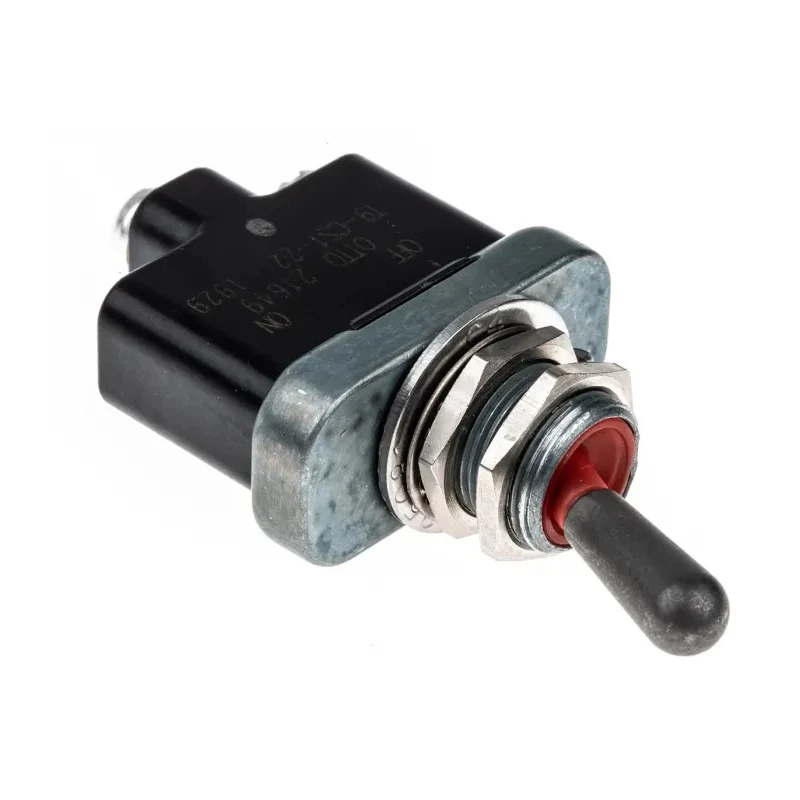

Name: Otto Panel Mount Toggle Switch On-Off SPST Screw Terminal 20A 28V DC 115V AC T9-CS1-22
Brand: Otto
SKU: 384899
Price: 4750.97 INR
Availability: InStock



Category Toggle Switch Brand Otto Condition New

Specifications

Country of Origin	United States
Brand	Otto
Model	T9-CS1-22
IP Rating	IP68S
Mount Type	Panel
Series	T9
Maximum Operating Temperature	71°C
Contact Configuration	SPST
Switch Configuration	2P
Minimum Operating Temperature	-65°C
Panel Cutout Size	0.67 mm
Terminal type	Screw
Standards/Approvals	CSA, REACH, RoHS, UL, WEEE
Switch Operation	On-Off
Actuator Length	0.69in
Contact DC Voltage	28V dc
Switch Contact Current	20A
Mechanical Life	40000Cycles
Contact AC Voltage	115V ac
Actuator Material	Stainless Steel

Key Features

Panel mount design with reliable screw terminal connections.
Sealed IP68S rating ensures durability in harsh environments.
Stainless steel actuator for corrosion resistance.
Wide operating temperature range from -65°C to 71°C.
Mechanical life expectancy of 40,000 cycles for extended usage.
Standard silver plated contacts provide consistent electrical performance.
Electrical rating supports 20A at 28V DC and 15A at 115V AC.
Compliant with CSA, REACH, RoHS, UL, and WEEE standards.

Product Description

Otto T9-CS1-22 is a high-quality panel mount toggle switch designed for On-Off, single-pole single-throw (SPST) operations. It supports a switch contact current rating of 20A and is rated for 28V DC and 115V AC, suitable for electrical control systems requiring reliable and durable switches.

The switch features a sealed IP68S rating, making it ideal for use in demanding industrial, automation, and electrical applications where resistance to dust and water ingress is critical. The actuator is made of stainless steel, providing excellent corrosion resistance and mechanical strength with a compact length of 0.69 inches.

This toggle switch withstands extreme temperatures from -65°C to 71°C, ensuring consistent operation across diverse climates and environments. It has a mechanical life of 40,000 cycles and an electrical life rated for a minimum of 20,000 operations, assuring long-lasting performance in heavy-duty use.

With large, reliable screw terminals and standard silver plated contacts, the switch offers dependable electrical connectivity and lowered contact resistance. Its robust design complies with internationally recognized standards including CSA, REACH, RoHS, UL, and WEEE. The T9 series meets MIL-DTL-3950 requirements, signifying military-grade quality and durability.

Typical applications include industrial automation, electrical panels, HVAC systems, machinery control panels, and commercial electrical installations requiring a high-reliability toggle switch with panel mounting and screw terminals.

Panel mount type with screw terminals ensures secure installation and wiring. Sealed IP68S rating for protection against dust and water entry. Stainless steel actuator provides corrosion resistance. High current rating suitable for demanding electrical loads.

Wide temperature compliance for various environmental conditions. Mechanical and electrical life cycles support durability and reliability. Compliance with multiple global standards ensures quality and safety. Manufactured in the United States under rigorous quality standards.

Explore the full range of high-performance Toggle Switches and panel mount electrical components available at EnvMart for industrial and commercial electrical applications.
