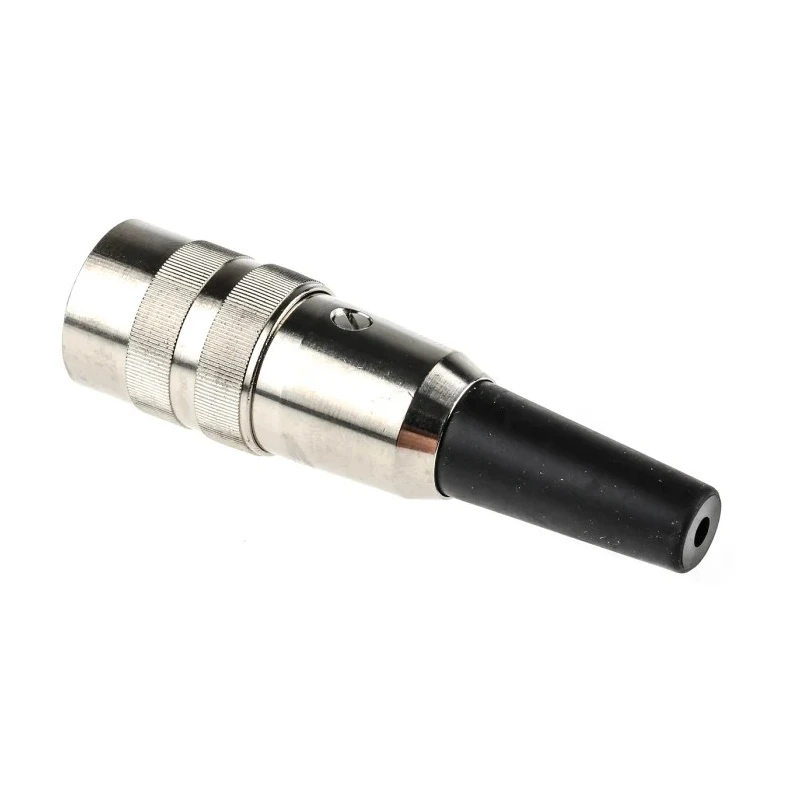

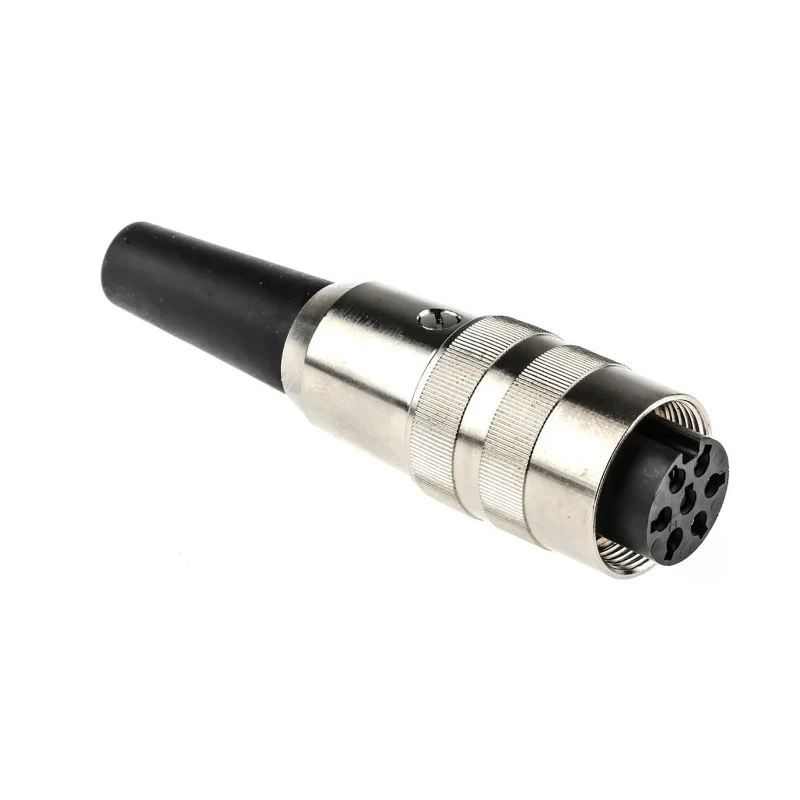

Lumberg 7 Pole Straight M16 DIN Socket Cable Female Threaded Connector 5A 250V ac KV 70
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V ac |
| Brand | Lumberg |
| Orientation | Straight |
| Current | 5A |
| Model | KV 70 |
| IP Rating | IP40 |
| Mount Type | Cable |
| Housing Material | Copper Zinc Alloy |
| Contact Material | Brass |
| Series | KV |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 7 |
| Contact Plating | Gold, Silver |
| Number of Contacts | 7 |
| Contact Gender | Female |
| Connector Gender | Female |
| Mating Type | Threaded |
| Connector Size | M16 |
| DIN Number | DIN EN 60529 |
Key Features
- Rated for 5A current and 250V AC voltage for reliable electrical performance.
- Features a threaded mating type ensuring secure connection integrity.
- Constructed with copper zinc alloy housing and brass contacts plated with gold and silver for durability and conductivity.
- Operates within a temperature range of -40°C to 85°C, suitable for demanding environments.
- Complies with DIN EN 60529 standard with IP40 rating for protection against solid objects.
- Termination is via soldering ensuring stable electrical contacts.
- Compact M16 connector size with seven poles organized in a circular layout.
- Applications include automation technology, medical instrumentation, and control engineering.
Product Description
Lumberg KV 70 is a 7 pole straight M16 DIN socket cable female connector designed for industrial and electronic component applications requiring robust and reliable connections.
This connector is cable mounted and features a threaded mating type facilitating secure coupling with corresponding plugs. It has an electrical rating of 5 Amperes current at 250 Volts AC, suitable for low to moderate power signal transmission and control systems.
The housing is made from durable copper zinc alloy, while the contacts are brass plated with both gold and silver to enhance conductivity and protect against corrosion. The contact resistance is maintained at or below 5 milliohms, ensuring efficient signal integrity.
It meets the DIN EN 60529 standard for ingress protection, rated at IP40, protecting against penetration of solid objects but not water. The temperature range of operation is wide, from -40°C up to +85°C, allowing use in harsh industrial environments.
Termination is by soldering, providing a secure and conductive electrical connection. The connector configuration includes seven poles arranged in a circular layout, following the KV series design.
Typical use cases include automation technology, medical instrumentation, and control engineering sectors, where dependable and compact circular connectors are necessary. This product is manufactured in China maintaining consistent quality standards. It is part of the Lumberg KV series of DIN connectors known for quality and reliability.
Rated current of 5 Amps and voltage of 250V AC. Threaded mating type for secure connections. 7 poles with cable mount and solder termination. Contact plating with gold and silver for high conductivity. Temperature range from -40°C to 85°C.
Copper zinc alloy housing with brass contacts. Ingress Protection rating IP40 compliant to DIN EN 60529. Suitable for applications in automation and medical instrumentation. Explore a broad range of DIN Sockets and connectors at EnvMart for all your industrial electronic connection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has an electrical rating of 5 Amperes current at 250 Volts AC, suitable for low to moderate power signal transmission and control systems.
This model operates within a temperature range of -40°C to 85°C, making it suitable for harsh industrial environments.
It complies with the DIN EN 60529 standard and has an IP40 rating, which protects against the penetration of solid objects but not water.
The housing is made from copper zinc alloy, while the contacts are brass plated with both gold and silver to enhance conductivity and protect against corrosion.
Termination is achieved via soldering, providing a secure and conductive electrical connection.
It features a configuration of seven poles arranged in a circular layout, following the KV series design.
This connector utilizes a threaded mating type, ensuring secure connection integrity.
It is a compact M16 connector size, suitable for various applications in automation and control engineering.
Typical use cases include automation technology, medical instrumentation, and control engineering sectors.
The contact resistance is maintained at or below 5 milliohms, ensuring efficient signal integrity.
This product is manufactured in China, maintaining consistent quality standards.
This model belongs to the Lumberg KV series of DIN connectors, known for their quality and reliability.
