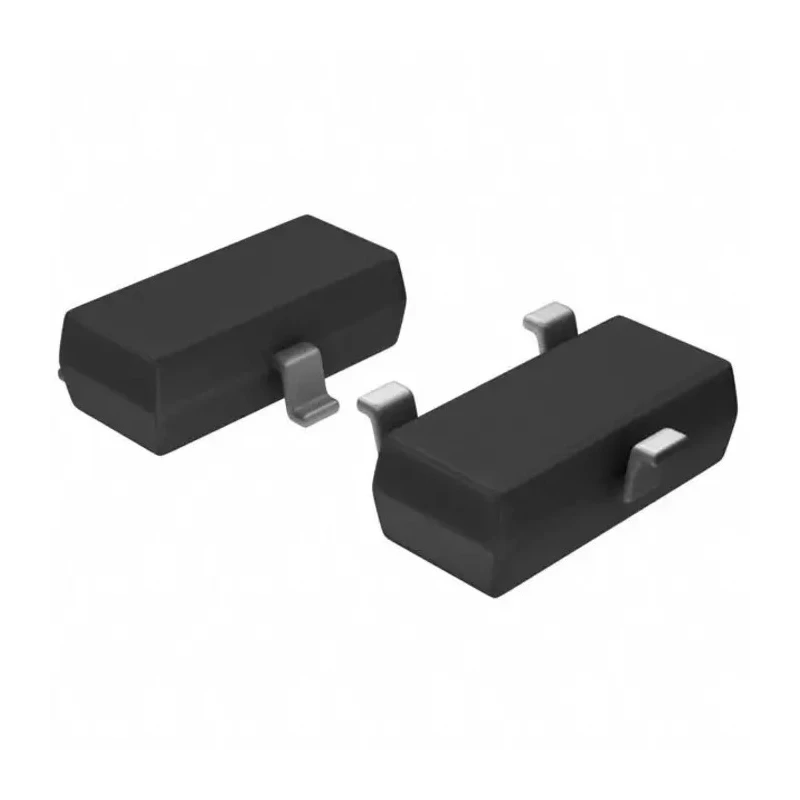

Honeywell Technologies Digital Surface Hall Effect Sensor, Latch Magnetic Type, 3V-26V, SOT-23 3-Pin SS360NT

Free Delivery in India | Lowest Global Shipping Charges

Honeywell Technologies Digital Surface Hall Effect Sensor, Latch Magnetic Type, 3V-26V, SOT-23 3-Pin SS360NT

Name: Honeywell Technologies Digital Surface Hall Effect Sensor, Latch Magnetic Type, 3V-26V, SOT-23 3-Pin SS360NT
Brand: Honeywell
SKU: 164727
Price: 1.45 USD
Availability: InStock



Category Hall Effect Sensor Brand Honeywell Condition New

Specifications

Country of Origin	China
Brand	Honeywell
Height	1.4mm
Length	2.9mm
Model	SS360NT
Technology	Digital
Sensor Type	Hall Effect
Width	1.6mm
Mount Type	Surface
Series	SS
Maximum Operating Temperature	150°C
Package Type	SOT-23
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS-compliant
Pin Count	3
Maximum Supply Voltage	26V
Minimum Supply Voltage	3V
Supply Current	8mA
Magnetic Type	Latch

Key Features

Provides high sensitivity with digital technology for accurate detection.
Offers a wide operating voltage range from 3V minimum to 26V maximum.
Compact surface mount package type SOT-23 with 3 pins.
Operates reliably in temperatures from -40°C to 150°C.
Latching magnetic type suited for stable magnetic field sensing.
Supply current is low at 8mA for efficient power consumption.
Compliant with RoHS environmental standards for restricted substances.

Product Description

Honeywell SS360NT is a digital surface Hall Effect sensor designed for high sensitivity and fast response in magnetic field sensing applications. This sensor is a latch type, meaning it maintains its output state until a magnetic field of opposite polarity is detected. It operates over a wide voltage range from 3V to 26V and accommodates temperatures from -40°C to 150°C, making it suitable for industrial, automotive, and electronic applications.

The sensor is packaged in a small SOT-23 3-pin surface mount device, measuring 2.9mm in length, 1.6mm in width, and 1.4mm in height, enabling easy integration into compact circuit boards. Its digital technology provides a stable and reliable output with minimal power consumption, drawing only 8mA supply current. The device’s durable construction and compliance with RoHS directives ensure it meets modern environmental and quality standards.

This sensor IC is employed in magnetic field detection tasks such as position sensing, speed detection, current sensing, and brushless DC motor control in industrial automation, consumer electronics, and automotive sectors. Its latch characteristic is ideal for applications requiring stable switching triggered by magnetic events.

High sensitivity digital Hall Effect sensor for reliable magnetic detection. Wide operating voltage range from 3 to 26 volts for versatile power supply compatibility. Compact SOT-23 3-pin surface mount package for space-efficient PCB layouts.

Extended temperature range from -40°C to +150°C for harsh environment use. Low supply current consumption of 8mA ensures energy efficiency. Latching magnetic type suitable for stable and consistent switching. RoHS compliant device meeting global environmental standards.

Overall, the Honeywell SS360NT surface Hall Effect Sensor provides a robust solution for precise magnetic sensing in varied electronic and industrial systems. Explore the wide range of Honeywell sensors in the EnvMart electronics catalog for your precise application needs.
