DiodesZetex Through Hole Hall Effect Sensor, Unipolar, Chopper Stabilised, 3 V - 28 V, SOT-23W, 3-Pin AH3369Q-SA-7

Free Delivery in India | Lowest Global Shipping Charges

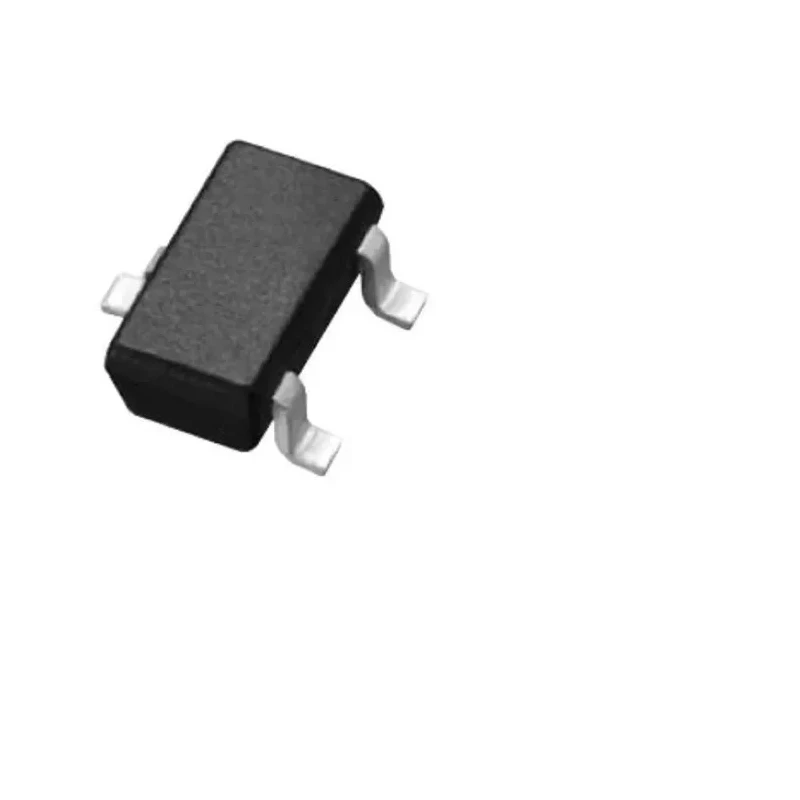

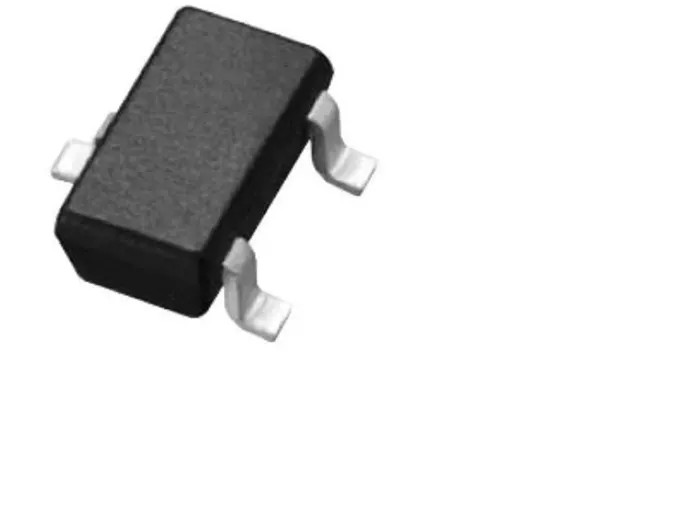

DiodesZetex Through Hole Hall Effect Sensor, Unipolar, Chopper Stabilised, 3 V - 28 V, SOT-23W, 3-Pin AH3369Q-SA-7

Name: DiodesZetex Through Hole Hall Effect Sensor, Unipolar, Chopper Stabilised, 3 V - 28 V, SOT-23W, 3-Pin AH3369Q-SA-7
Brand: DiodesZetex
SKU: 147263
Price: 0.86 USD
Availability: InStock



Category Hall Effect Sensor Brand DiodesZetex Condition New

Specifications

Country of Origin	India
Brand	DiodesZetex
Response time	3.75μs
Height	1mm
Length	3mm
Model	AH3369Q-SA-7
Technology	Chopper Stabilised
Sensor Type	Hall Effect Sensors
Width	1.4mm
Mount Type	Through Hole
Series	AH3369Q
Maximum Operating Temperature	150°C
Package Type	SOT-23W
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS, Pb-Free
Pin Count	3
Automotive Standard	AEC-Q100
Maximum Supply Voltage	28V
Minimum Supply Voltage	3V
Supply Current	3.5mA
Magnetic Type	Unipolar
Maximum Frequency Response	800kHz

Key Features

Operates with supply voltage range from 3 V to 28 V.
Features a compact SOT-23W package with 3 pins for through-hole mounting.
Offers a fast response time of 3.75 microseconds suitable for high-speed applications.
Designed for operating temperatures between -40°C and 150°C.
Supports a maximum frequency response of 800 kHz for precise sensing.
Draws a low supply current of 3.5 mA for energy-efficient operation.
Compliant with RoHS and Pb-Free environmental standards.
Meets automotive standard AEC-Q100 ensuring reliability in harsh environments.

Product Description

DiodesZetex AH3369Q-SA-7 is a through-hole Hall Effect Sensor IC using chopper stabilised technology. It supports a wide supply voltage range of 3 V to 28 V, delivering stable linear output for unipolar magnetic field detection. The sensor is housed in a compact SOT-23W 3-pin package designed for easy PCB through-hole mounting.

This Hall sensor provides excellent frequency response up to 800 kHz and features a fast response time of 3.75 microseconds. It operates efficiently with a supply current of 3.5 mA, minimizing power consumption in embedded systems. The device is rated for a wide operating temperature range from -40°C to 150°C, making it suitable for industrial, automotive, and consumer electronics applications.

Certified as RoHS compliant and lead-free, this sensor meets the AEC-Q100 automotive standard, ensuring robustness and long-term reliability in vehicle and industrial environments. It is ideal for position sensing, proximity switching, speed and current sensing in motors, and other magnetic sensing applications.

Operates between supply voltages 3 V to 28 V. Fast response time of 3.75 μs with frequency capability up to 800 kHz. Low supply current of 3.5 mA enhances energy efficiency. Compact SOT-23W through-hole package for straightforward assembly.

Wide temperature range: -40°C to 150°C for harsh conditions. Compliance with RoHS, Pb-Free, and automotive AEC-Q100 standards.

DiodesZetex AH3369Q-SA-7 is suitable for electronic system designers implementing magnetic sensing in industrial automation, automotive electronics, robotics, and consumer devices. Browse related sensor ICs and Hall Effect Sensors at EnvMart for complementary components and design solutions.
