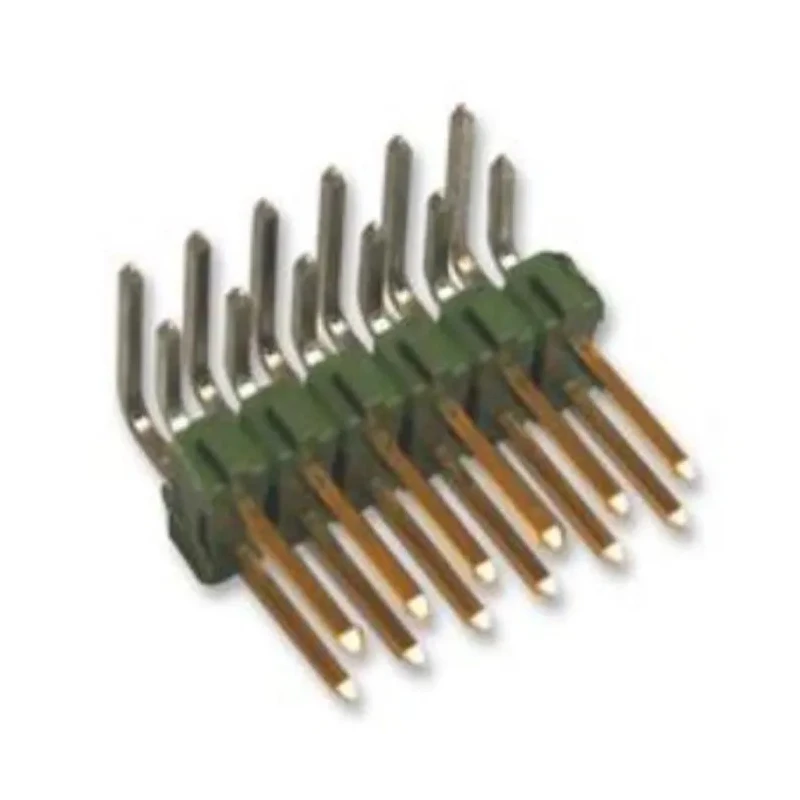

TE Connectivity AMPMODU MOD II Series Right Angle Through Hole Pin Header, 20 Contacts, 2.54 mm Pitch, 2 Row 1-826634-0

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity AMPMODU MOD II Series Right Angle Through Hole Pin Header, 20 Contacts, 2.54 mm Pitch, 2 Row 1-826634-0

Name: TE Connectivity AMPMODU MOD II Series Right Angle Through Hole Pin Header, 20 Contacts, 2.54 mm Pitch, 2 Row 1-826634-0
Brand: TE Connectivity
SKU: 205411
Price: 4.17 USD
Availability: InStock



Category PCB Headers Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Voltage	750V
Brand	TE Connectivity
Orientation	Right Angle
Current	3A
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Brass
Series	AMPMODU MOD II
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-65°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	20
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded
Connector System	Board-to-Board, Wire-to-Board
Tail Pin Length	3.2mm
Mating Pin Length	6.7mm

Key Features

The AMPMODU MOD II series features a double row, unshrouded design for versatile usage.
Constructed with brass contacts plated in gold for excellent conductivity and corrosion resistance.
Designed for through hole mounting to ensure strong physical and electrical connection.
Supports an operating voltage up to 750V and current rating of 3A.
Operating temperature ranges from -65°C to +105°C for reliable performance in harsh environments.
Contact tails measure 3.2 mm in length, and mating pins measure 6.7 mm.
Compact 2.54 mm pitch and row pitch spacing make it suitable for densely packed PCBs.
Ideal for automotive controls, industrial equipment, telecommunications, medical instruments, and more.

Product Description

TE Connectivity 1-826634-0 is a high-quality AMPMODU MOD II Series Right Angle Through Hole Pin Header designed for dependable electrical connections in demanding industrial and electronic applications.

This connector features 20 male brass contacts plated with gold to enhance conductivity and protect against corrosion. Its 2-row, 2.54 mm pitch configuration and through-hole mounting type ensure robust mechanical stability and electrical performance.

The pin header is rated for a maximum operating voltage of 750V and a current capacity of 3A, withstanding operating temperatures from -65°C to 105°C, making it suitable for harsh environmental conditions.

The tail pin length of 3.2 mm and mating pin length of 6.7 mm facilitate secure circuit board connections. The unshrouded design enables versatile board-to-board and wire-to-board interconnection with breakaway capability to customize the number of pins used.

This series is widely applicable in sectors such as automotive control systems, industrial machinery, testing equipment, computers, telecommunications, medical devices, storage solutions, and various consumer appliances.

The AMPMODU Interconnect System is known for its reliable signal integrity and economical design, supporting automation and control systems with a compact footprint. The AMPMODU MOD II pin header is highly adaptable and can be broken down to the required size.

Its solder post design enables quick, labor-efficient installation. Brass contacts with gold plating provide excellent electrical conductivity and corrosion resistance. Engineered for industrial-grade temperature range and electrical specifications.

Ideal for multiple electronic and industrial applications requiring robust PCB interconnections.
