TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header, 40 Contacts, 2.54 mm Pitch, 2 Row 2-826942-0

Free Delivery in India | Lowest Global Shipping Charges

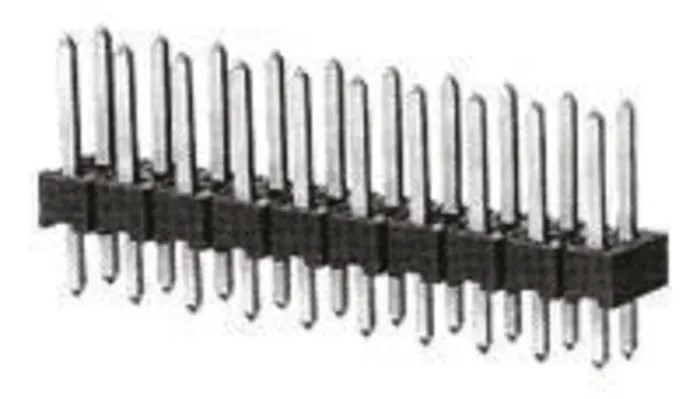

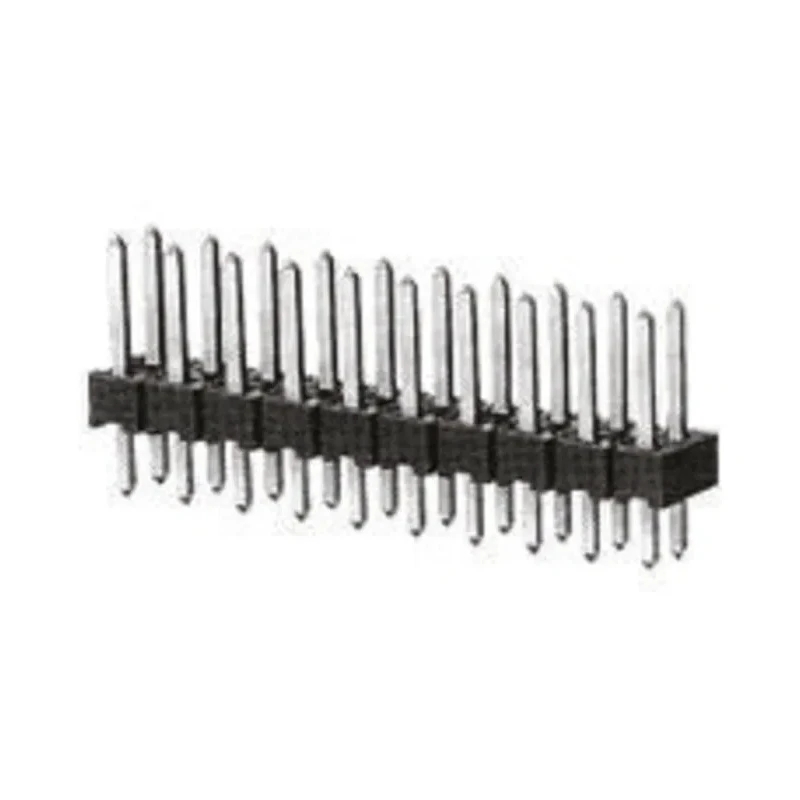

TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header, 40 Contacts, 2.54 mm Pitch, 2 Row 2-826942-0

Name: TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header, 40 Contacts, 2.54 mm Pitch, 2 Row 2-826942-0
Brand: TE Connectivity
SKU: 205420
Price: 3.67 USD
Availability: InStock



Category PCB Headers Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Voltage	750V
Brand	TE Connectivity
Orientation	Straight
Current	3A
Mount Type	Through Hole
Housing Material	Thermoplastic
Contact Material	Brass
Series	AMPMODU MOD II
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-65°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Tin
Number of Contacts	40
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded
Connector System	Board-to-Board, Wire-to-Board
Tail Pin Length	3.2mm
Mating Pin Length	5.8mm

Key Features

This pin header features a 2.54 mm centerline pitch, suitable for standard PCB layouts.
It includes 40 brass contacts plated with tin for reliable conductivity and corrosion resistance.
The component uses a through-hole mount type with straight orientation allowing robust mechanical connection.
Operating temperature range from -65°C to 105°C ensures durability in varied environments.
Designed for board-to-board and wire-to-board connector systems for versatile interfacing.
Terminated by soldering, providing solid and durable electrical connections.
The tail pin length is 3.2mm with a mating pin length of 5.8mm for optimal contact engagement.
It supports a maximum current of 3A and voltage rating up to 750V.

Product Description

TE Connectivity 2-826942-0 AMPMODU MOD II Series Straight Through Hole Pin Header offers a high-quality connection solution with 40 pins arranged in a 2-row, 2.54 mm pitch unshrouded format. This component features brass male contacts plated with tin to ensure reliable and long-term connectivity suitable for demanding applications.

With a through-hole mounting style and straight orientation, the pin header provides exceptional mechanical stability on printed circuit boards. Its thermoplastic housing material adds electrical insulation and environmental resilience, functioning across a temperature range from -65°C to 105°C.

The rated current of 3A and voltage capability of 750V make it suitable for various industrial, automotive, telecommunications, medical instrumentation, test equipment, and computing applications. The breakaway design of the AMPMODU MOD II series enables users to customize the number of contacts by easily breaking off sections of the pin strip, saving on labor cost and improving production efficiency.

Intended for board-to-board and wire-to-board interconnections, this pin header supports versatile connectivity solutions in automation, control systems, and electronic equipment manufacturing. The solder termination ensures a stable, robust electrical interface with the PCB.

40-pin, double-row unshrouded design with 2.54 mm pin spacing. Brass contacts with tin plating for reliable conductivity and resistance to corrosion. Thermoplastic housing providing electrical insulation and mechanical durability.

Through-hole mount type with straight contact orientation. Tail pin length of 3.2mm and mating pin length of 5.8mm for optimal engagement. Operating temperature range from -65°C to 105°C. Rated for 3A current and 750V voltage applications.

Breakaway style allows size customization to fit specific PCB design requirements.

This TE Connectivity AMPMODU MOD II pin header series is an industry-standard solution that combines performance and cost-effectiveness, making it suitable for electronics manufacturing, industrial automation, lab instrument design, and other commercial electronics applications.

Explore more precision connectors and related components within the PCB Headers category for your electronic assembly projects and automation control systems on EnvMart.
