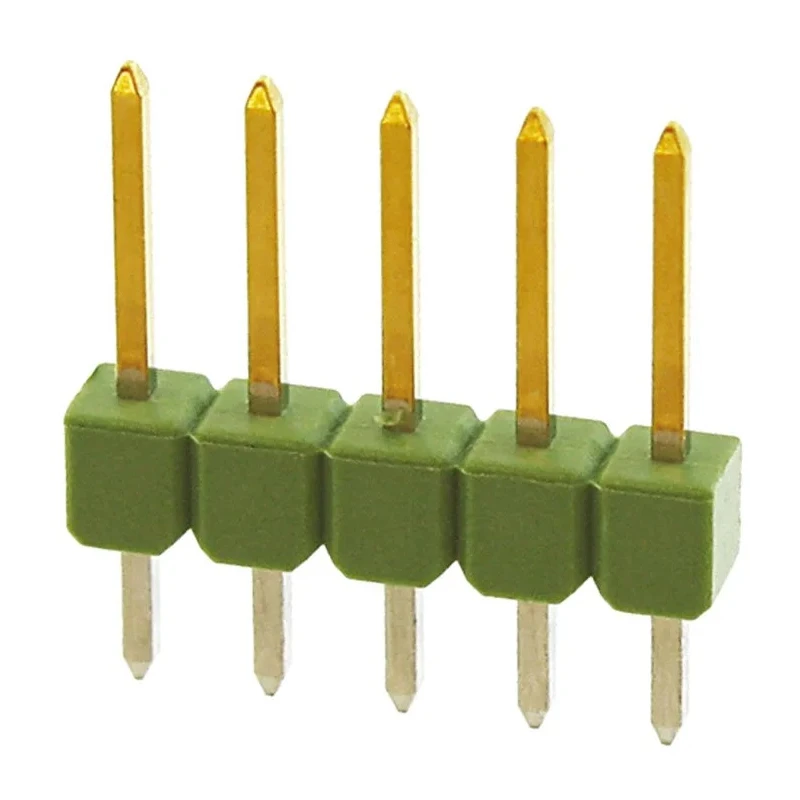

TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header, 5 Contact(s), 2.54 mm Pitch, 1 Row 826629-5
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Model | 826629-5 |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 5 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.2mm |
| Mating Pin Length | 6.7mm |
Key Features
- This pin header is constructed with a polybutylene terephthalate housing for durability.
- Provides a current rating of 3 A and voltage rating up to 750 V for reliable electrical performance.
- Features gold-plated phosphor bronze contacts ensuring excellent conductivity and corrosion resistance.
- Mount type is through hole with straight orientation for secure PCB installation.
- Supports operating temperatures from -65°C to 105°C, suitable for varied industrial environments.
- Tail pin length of 3.2 mm and mating pin length of 6.7 mm for optimal contact reliability.
- Compatible with board-to-board and wire-to-board connector systems for flexible design.
- Ideal for automotive controls, industrial equipment, telecommunications, medical instruments, and storage applications.
Product Description
TE Connectivity 826629-5 AMPMODU MOD II Series Straight Through Hole Pin Header features a single row of 5 male contacts with 2.54 mm pitch. The unshrouded design facilitates easy customization by breaking the header to required sizes, enhancing assembly efficiency.
The polybutylene terephthalate housing combined with gold-plated phosphor bronze contacts ensures both mechanical durability and excellent electrical conductivity. It supports a current of 3 A and voltage up to 750 V, making it suitable for demanding electrical connections.
Designed for through-hole mounting and straight orientation, the header offers a tail pin length of 3.2 mm and mating pin length of 6.7 mm, ensuring secure soldered connections. It operates over a broad temperature range from -65°C up to 105°C, appropriate for various industrial and commercial environments.
This pin header is compatible with both board-to-board and wire-to-board connector systems and is widely used in automotive controls, industrial and test equipment, computers, telecommunications, medical instruments, and storage devices. Its versatile breakaway feature allows cost-effective assembly by installing all solder posts simultaneously.
Constructed with durable polybutylene terephthalate housing. Gold-plated phosphor bronze contacts provide reliable conductivity. Designed for through-hole mounting with a straight orientation. Suitable for current up to 3 A and voltage up to 750 V.
Operating temperature range: -65°C to 105°C. Commonly used in automotive, industrial, and telecommunication applications.
Explore other connectors and PCB Headers by TE Connectivity and find detailed technical documentation for your industrial, electronics manufacturing, and repair projects at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a current rating of 3 A, making it suitable for various electrical applications.
This model supports a voltage rating of up to 750 V, ensuring reliable electrical performance.
The housing is made of polybutylene terephthalate, and the contacts are gold-plated phosphor bronze, providing excellent conductivity and corrosion resistance.
The contact pitch size is 2.54 mm, which is standard for many connector applications.
It operates within a temperature range of -65°C to 105°C, suitable for diverse industrial environments.
This pin header features 5 male contacts in a single row configuration.
The tail pin length is 3.2 mm, which aids in secure soldered connections.
It is designed for through-hole mounting with a straight orientation for secure installation on PCBs.
It is compatible with both board-to-board and wire-to-board connector systems, providing flexibility in design.
The mating pin length is 6.7 mm, ensuring optimal contact reliability when connected.
Yes, it is commonly used in automotive controls, along with industrial equipment and telecommunications.
The contacts are male, which is typical for pin header connectors.
