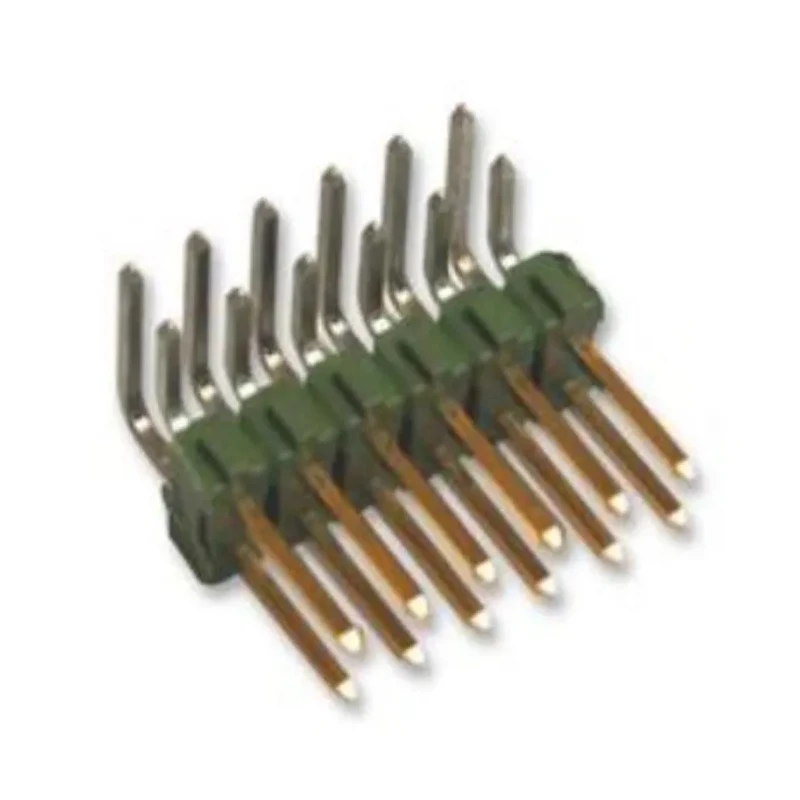

TE Connectivity AMPMODU MOD II Series Right Angle Through Hole Pin Header 20 Contact 2.54 mm Pitch 2 Row 1-826634-0

TE Connectivity 1-826634-0 AMPMODU MOD II Series Right Angle Through Hole Pin Header is a high-quality 20-contact double row pin header with a 2.54 mm pitch designed for reliable electrical interconnections. It features a right angle orientation ideal for board-to-board and wire-to-board connector systems.

The pin header housing is made from durable polybutylene terephthalate, providing excellent mechanical strength and thermal resistance. The brass contact material is plated with gold to ensure corrosion resistance and consistent electrical performance.

Rated for 3 A current and 750 V voltage, it operates efficiently within a wide temperature range of -65°C to 105°C, meeting the needs of demanding industrial environments. Its through-hole solder termination type combined with a breakaway design facilitates fast assembly and flexible sizing.

This connector system is unshrouded, allowing easy mating and provides a tail pin length of 3.2 mm and a mating pin length of 6.7 mm. The product contains no specific approvals but complies with standard industrial requirements.

Applications include automotive controls, industrial and test equipment, computers, telecommunications, medical instruments, storage, and appliance devices. Its compact size and versatile electrical features make it suitable for manufacturing, laboratory, and commercial PCB connector needs.

Pin header features a right angle, through-hole mount type for board-to-board and wire-to-board connections. Consists of 20 brass male contacts plated with gold for reliable conductivity. Made from polybutylene terephthalate housing material ensuring durability.

Supports a continuous current rating of 3 A and a voltage rating up to 750 V. Operates reliably in temperatures ranging from -65°C to 105°C. Offers quick installation with breakaway design allowing customization to required size.

Suitable for use in automotive controls, industrial equipment, telecommunications, and medical instruments. Compact double row 2.54 mm pitch with tail pin length of 3.2 mm and mating pin length of 6.7 mm. Unshrouded design enabling easy access and solder termination.

Ideal for various industrial, laboratory, and manufacturing PCB interconnect applications. Explore more PCB Headers by TE Connectivity and related connectors at EnvMart for your industrial and electronics projects.
