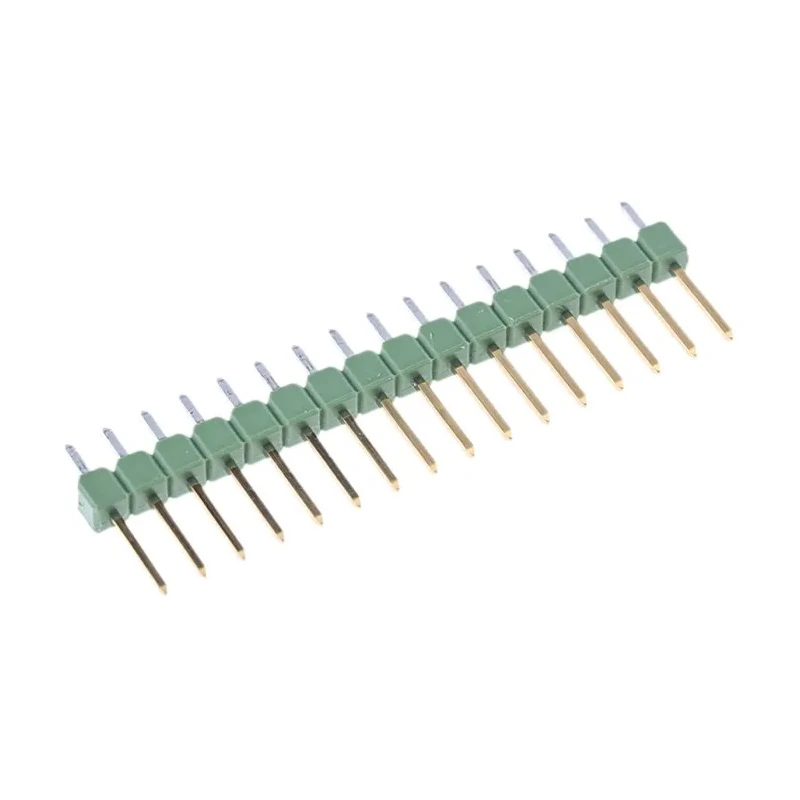

TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header 16 Contacts 2.54mm Pitch 1 Row Unshrouded 1-826629-6

TE Connectivity 1-826629-6 AMPMODU MOD II Series straight through hole pin header features a 16-contact single row with a 2.54 mm pitch, designed for board-to-board and wire-to-board connection applications. Utilizing a robust polyester housing combined with brass contacts plated in gold, it ensures dependable electrical contact and insulation necessary for industrial electronics.

This pin header supports a current rating of 3A and a voltage rating of 750V, making it suitable for demanding electrical standards. It operates efficiently across a wide temperature range from -65°C minimum to 105°C maximum, supporting usage in diverse environments.

The connector is unshrouded and offers through-hole mounting with a straight orientation, facilitating secure soldered connections to printed circuit boards. The product includes a mating pin length of 6.7mm and a tail pin length of 3.2mm, designed for reliable mechanical and electrical connections.

AMPMODU MOD II pin headers are highly versatile with breakaway pins that can be adjusted to the required size, saving time and labor during assembly processes. This system is recognized as a signal standard in automation and control industries, delivering economical and reliable interconnection solutions.

Typical applications include automotive control systems, industrial and test equipment, telecommunications infrastructure, medical instruments, computing devices, storage solutions, and household appliances.

This connector series is an ideal choice for electronic manufacturing and design, providing a dependable, standardized, and cost-effective solution for various high-reliability industrial and commercial applications.

Constructed with polyester housing for durable insulation. Gold-plated brass male contacts ensure high conductivity and corrosion resistance. Single row, straight orientation with a 2.54mm pitch. Supports 3A current and 750V voltage ratings.

Operates reliably from -65°C to 105°C. Through-hole solder termination facilitates secure PCB mounting. Features 6.7mm mating and 3.2mm tail pin lengths. Breakaway pins for customizable lengths improve assembly efficiency.

Widely used in automotive, industrial, telecommunications, medical, and computing applications. Provides economical and reliable signal interconnect solutions for automation and control. Explore our Electronics & Electricals section on EnvMart for more high-quality connectors and PCB components to meet your manufacturing and design needs.
