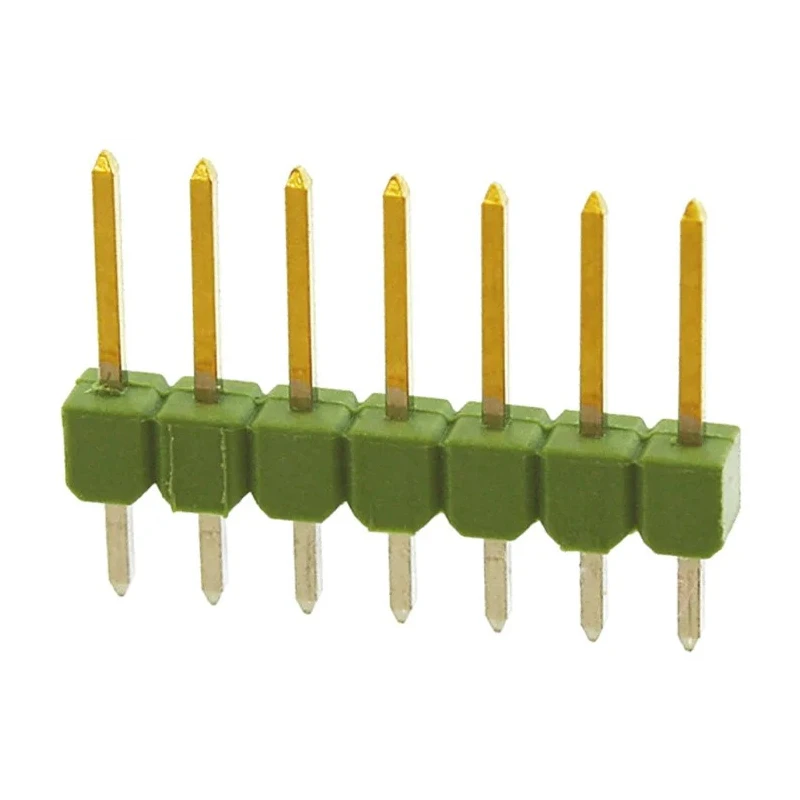

TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header, 7 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded 826629-7

TE Connectivity 826629-7 AMPMODU MOD II Series straight through hole pin header features 7 unshrouded male contacts spaced at 2.54 mm pitch in a single row. This connector is designed for through hole mounting and provides reliable electrical connections for board-to-board and wire-to-board applications.

The contacts are made from brass and plated with gold to ensure high conductivity and corrosion resistance. The housing is constructed from polybutylene terephthalate, offering durability and electrical insulation suitable for industrial environments.

This pin header supports a current rating of 3 A and a voltage rating of 750 V, with an operating temperature range from -65°C to 105°C, making it robust for a variety of demanding applications.

The tail pins have a length of 3.2 mm with mating pins extending to 6.7 mm. The AMPMODU MOD II breakaway feature allows the header to be separated to required lengths, enabling time efficient and flexible installation.

Ideal for use in automotive control systems, industrial machinery, telecommunications, medical instrumentation, computers, and storage equipment, these headers provide a compact and cost-effective interconnect solution within electrical and electronics manufacturing industries.

7 contact unshrouded pin header with 2.54 mm pitch. Single-row straight orientation suitable for through hole mounting. Brass contacts plated with gold for improved conductivity. Housing made of durable polybutylene terephthalate material.

Rated for 3 A current and 750 V voltage maximum. Operating temperature range from -65°C to 105°C. Includes 3.2 mm tail pin length and 6.7 mm mating pin length. Versatile breakaway header design allows custom sizing. Applications include automotive, industrial equipment, computers, telecommunications and medical instruments.

Economical and reliable solution for PCB interconnect systems. Browse the Electronics & Electricals category at EnvMart for premium connectors and PCB Headers from TE Connectivity and other top brands.
