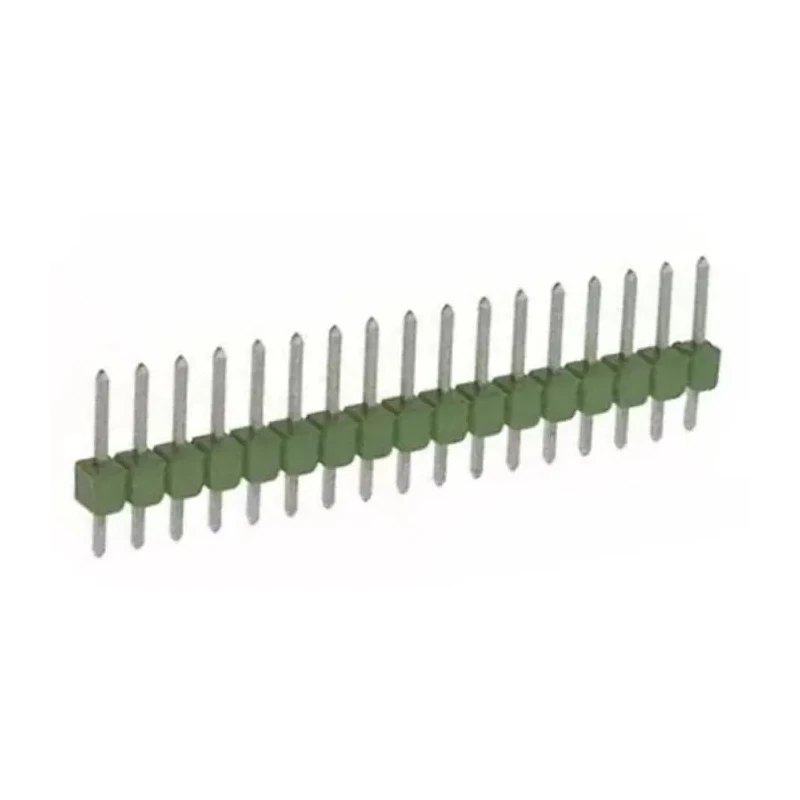

TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header, 16 Contacts, 2.54 mm Pitch, 1 Row 1-826936-6

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header, 16 Contacts, 2.54 mm Pitch, 1 Row 1-826936-6

Name: TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header, 16 Contacts, 2.54 mm Pitch, 1 Row 1-826936-6
Brand: TE Connectivity
SKU: 205418
Price: 2 USD
Availability: InStock



Category PCB Headers Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Voltage	750V
Brand	TE Connectivity
Orientation	Straight
Current	3A
Mount Type	Through Hole
Housing Material	Polyester
Contact Material	Brass
Series	AMPMODU MOD II
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-65°C
Number of Rows	1
Pitch	2.54mm
Contact Plating	Tin
Number of Contacts	16
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded
Connector System	Board-to-Board, Wire-to-Board
Tail Pin Length	3.2mm
Mating Pin Length	5.8mm

Key Features

The connector supports a current rating of 3A with a voltage rating of 750V.
It has a brass male contact material plated with tin ensuring reliable conductivity.
Designed with polyester housing for durability and operating temperature range from -65°C to 105°C.
Pin header is versatile, breakable to required size for quick and time-saving installation.
Suitable for board-to-board and wire-to-board connector systems in industrial and automotive controls.
Termination is via solder and features a tail pin length of 3.2mm and mating pin length of 5.8mm.
Unshrouded design allows easy access and visibility of contacts.
Reliable and economical interconnect system compliant with common industrial applications.

Product Description

TE Connectivity 1-826936-6 AMPMODU MOD II Series Straight Through Hole Pin Header is a high-quality electronic component designed for reliable and versatile board-to-board and wire-to-board connections. It features 16 male contacts arranged in a single row with a 2.54 mm pitch and is unshrouded for easy access.

Manufactured with a durable polyester housing and brass contacts plated with tin, this pin header supports a current of 3A and voltage up to 750V. Its temperature tolerance ranges from -65°C to +105°C, making it suitable for harsh industrial environments.

The tail pin length measures 3.2 mm while the mating pin extends to 5.8 mm, providing secure and stable connections. This through-hole mount component can be easily broken down to the required size, saving time and labor during PCB assembly.

Applications include automotive controls, industrial equipment, telecommunications devices, medical instruments, and computer hardware, amongst others. This pin header is part of the widely used AMPMODU Mod II interconnect system designed for signal integrity, compactness, and economical manufacturing.

The connector supports a current rating of 3A with a voltage rating of 750V. It has a brass male contact material plated with tin ensuring reliable conductivity. Designed with polyester housing for durability and operating temperature range from -65°C to 105°C.

Pin header is versatile, breakable to required size for quick and time-saving installation. Suitable for board-to-board and wire-to-board connector systems in industrial and automotive controls. Termination is via solder and features a tail pin length of 3.2mm and mating pin length of 5.8mm.

Unshrouded design allows easy access and visibility of contacts. Reliable and economical interconnect system compliant with common industrial applications. Explore the range of TE Connectivity AMPMODU connectors on EnvMart for dependable industrial, automotive, and electronic system interconnections.
