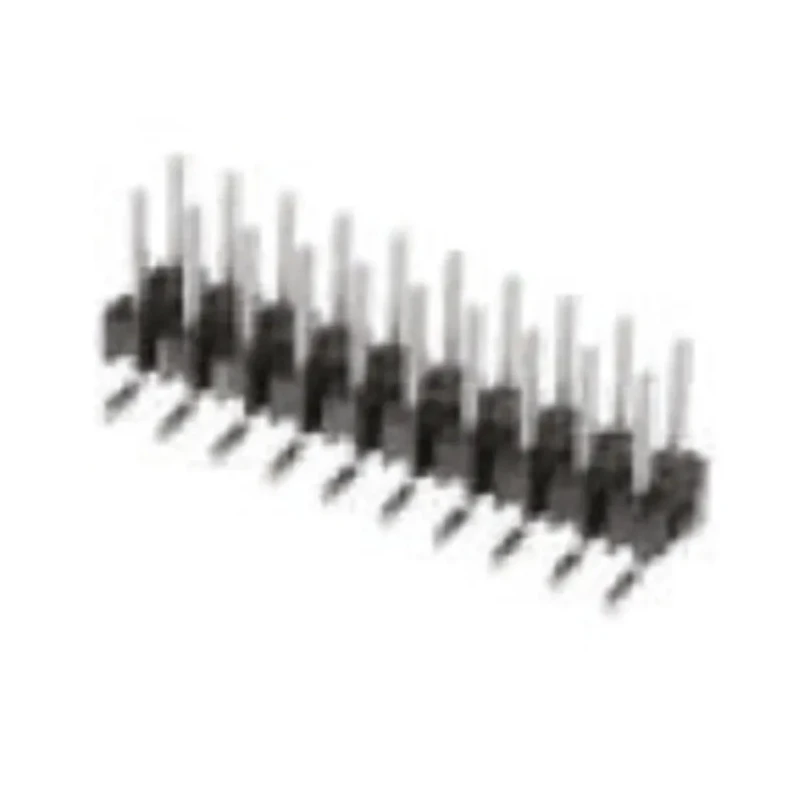

TE Connectivity AMPMODU MOD II Series Right Angle Through Hole Pin Header, 12 Contacts, 2.54 mm Pitch, 2 Row, Brass 826634-6

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity AMPMODU MOD II Series Right Angle Through Hole Pin Header, 12 Contacts, 2.54 mm Pitch, 2 Row, Brass 826634-6

Name: TE Connectivity AMPMODU MOD II Series Right Angle Through Hole Pin Header, 12 Contacts, 2.54 mm Pitch, 2 Row, Brass 826634-6
Brand: TE Connectivity
SKU: 205412
Price: 2.81 USD
Availability: InStock



Category PCB Headers Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Voltage	750V
Brand	TE Connectivity
Orientation	Right Angle
Current	3A
Model	826634-6
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Brass
Series	AMPMODU MOD II
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-65°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	12
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded
Connector System	Board-to-Board, Wire-to-Board
Tail Pin Length	3.2mm
Mating Pin Length	6.7mm

Key Features

This pin header is unshrouded and designed for through-hole mounting.
Contacts are made of brass with gold plating for enhanced conductivity and corrosion resistance.
Rated for 3 A current and a maximum voltage of 750 V.
Operates within a temperature range from -65°C to 105°C.
Features a right angle orientation suitable for board-to-board or wire-to-board connector systems.
The tail pin length is 3.2 mm, and the mating pin length is 6.7 mm.
Offers versatile breakaway sections allowing size customization.
Ideal for applications in automotive controls, industrial equipment, telecommunications, and medical devices.

Product Description

TE Connectivity 826634-6 AMPMODU MOD II Series Right Angle Through Hole Pin Header with 12 brass contacts and a 2.54 mm pitch offers a robust and versatile solution for PCB interconnections. This unshrouded, double-row pin header supports reliable electrical connections in automation, control, and electronic assembly applications.

The gold plating on contacts enhances durability and electrical conductivity, suited for harsh environments with operating temperatures from -65°C to 105°C. Designed for a 3 A current rating and up to 750 V voltage rating, it ensures consistent performance under demanding conditions.

This component mounts via through-hole with a right angle orientation, supporting board-to-board and wire-to-board systems. The breakaway design allows customization of contact number to suit various application needs, increasing flexibility and reducing manufacturing time.

Common applications include automotive controls, industrial machinery, test and measurement instruments, telecommunications equipment, medical instruments, data storage devices, and household appliances. Its reliable construction minimizes connection failures and maintenance requirements in critical systems.

This pin header is unshrouded and designed for through-hole mounting. Contacts are made of brass with gold plating for enhanced conductivity and corrosion resistance. Rated for 3 A current and a maximum voltage of 750 V.

Operates within a temperature range from -65°C to 105°C. Features a right angle orientation suitable for board-to-board or wire-to-board connector systems. The tail pin length is 3.2 mm, and the mating pin length is 6.7 mm.

Offers versatile breakaway sections allowing size customization. Ideal for applications in automotive controls, industrial equipment, telecommunications, and medical devices. Explore more products in the PCB Headers category at EnvMart for a complete range of electronic component solutions designed for industrial, commercial, and laboratory use.
