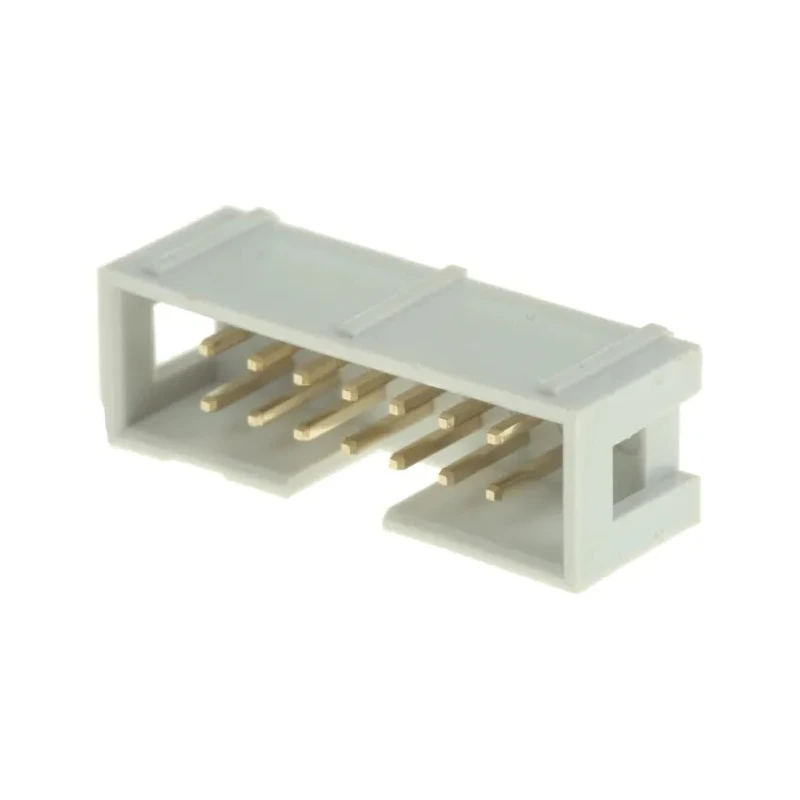

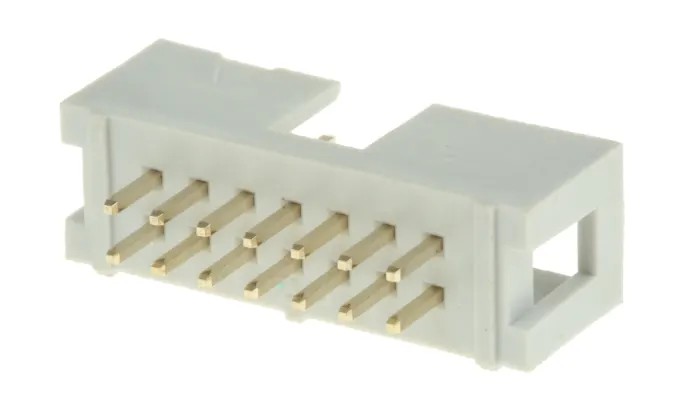

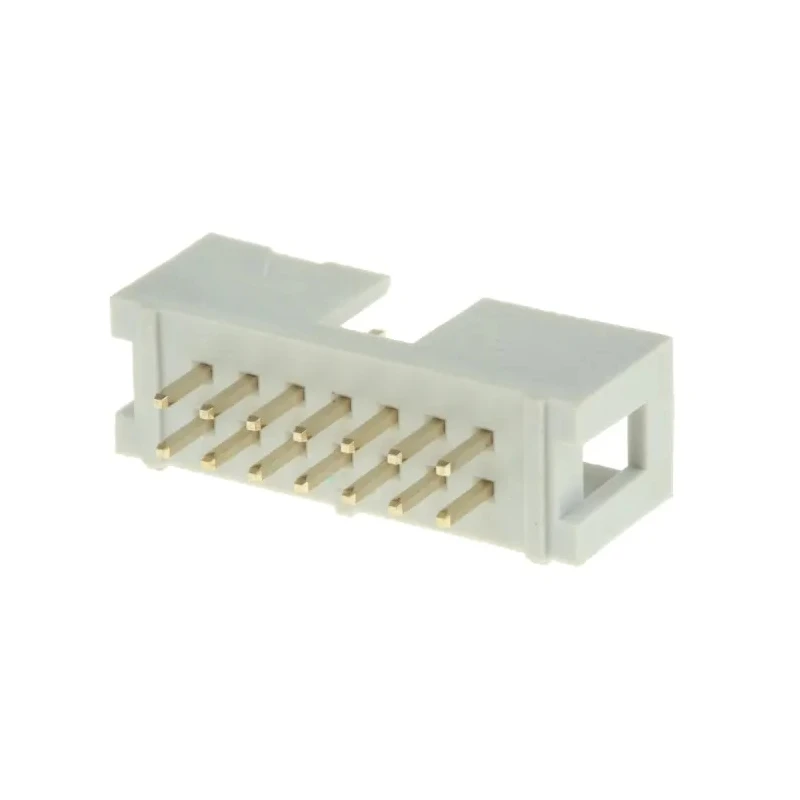

RS PRO Straight Through Hole PCB Header 14 Contacts 2.54 mm Pitch 2 Row Shrouded 625-7274
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 500V |
| Brand | RS PRO |
| Orientation | Straight |
| Current | 1A |
| Model | 625-7274 |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper |
| Termination Type | IDC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -45°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 14 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| 8888 14-Way IDC Connector Plug Through Hole MountBrand | NEUTRAL |
Key Features
- This PCB header supports a current rating of 1A.
- It includes gold-plated copper contacts for reliable conductivity.
- The mounting type is through-hole suitable for standard 1.6 mm thick PCBs.
- The housing is made from durable Polybutylene Terephthalate material rated to UL94-V standards.
- Operating temperature ranges from -45°C to 105°C, suitable for various industrial environments.
- The header is compliant with IDC and BT224 connector standards.
- It operates at a voltage rating of 500V ensuring electrical safety.
- This component is manufactured in Taiwan, Province Of China.
Product Description
RS PRO 625-7274 Straight Through Hole PCB Header is a 14-contact, 2-row shrouded connector designed for robust and reliable electrical connections on printed circuit boards. With a pitch of 2.54 mm and male IDC termination, this header is ideal for various industrial, electronic, and manufacturing applications requiring secure and high-quality connections.
The housing is constructed from Polybutylene Terephthalate polymer that meets UL94-V flame retardance standards, delivering durability and safety in demanding operational conditions. Gold-plated copper contacts enhance conductivity and prevent corrosion, ensuring the longevity of connections.
The header features a through-hole mount type compatible with standard 1.6 mm thick printed circuit boards. It is rated for a current of 1A and voltage up to 500V, making it suitable for low-power electronic assemblies and industrial controls.
Designed with operating temperature tolerance from -45°C to 105°C, the RS PRO 625-7274 supports a wide range of environments including industrial automation, instrumentation, and telecommunications equipment.
This PCB header supports a current rating of 1A. Gold-plated copper contacts provide excellent conductivity. Polybutylene Terephthalate housing meets UL94-V standards. Mount Type: Through Hole suitable for 1.6 mm PCB thickness.
Operating temperature range: -45°C to 105°C. Pitch of 2.54 mm ensures compatibility with standard header connectors. Compliant with IDC and BT224 connector standards for easy integration. Voltage rating of 500V enables safe industrial usage.
Manufactured in Taiwan, Province Of China, ensuring quality and consistency. This PCB connector is suitable for use in electronics manufacturing, industrial assemblies, communication equipment, and laboratory instrumentation.
Explore more PCB connectors and electrical components on EnvMart for your technical and industrial requirements.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PCB header supports a current rating of 1A.
It operates at a voltage rating of 500V, ensuring electrical safety.
The housing is constructed from Polybutylene Terephthalate, which meets UL94-V flame retardance standards.
This PCB header features 14 contacts arranged in 2 rows.
It has an operating temperature range from -45°C to 105°C, suitable for various industrial environments.
This model uses IDC (Insulation Displacement Connector) termination type.
The header is shrouded, providing additional protection for the contacts.
This PCB header is manufactured in Taiwan, Province Of China.
It supports through-hole mounting, suitable for standard 1.6 mm thick PCBs.
The contacts are made from copper and are gold-plated for enhanced conductivity.
It is compliant with IDC and BT224 connector standards for easy integration.
