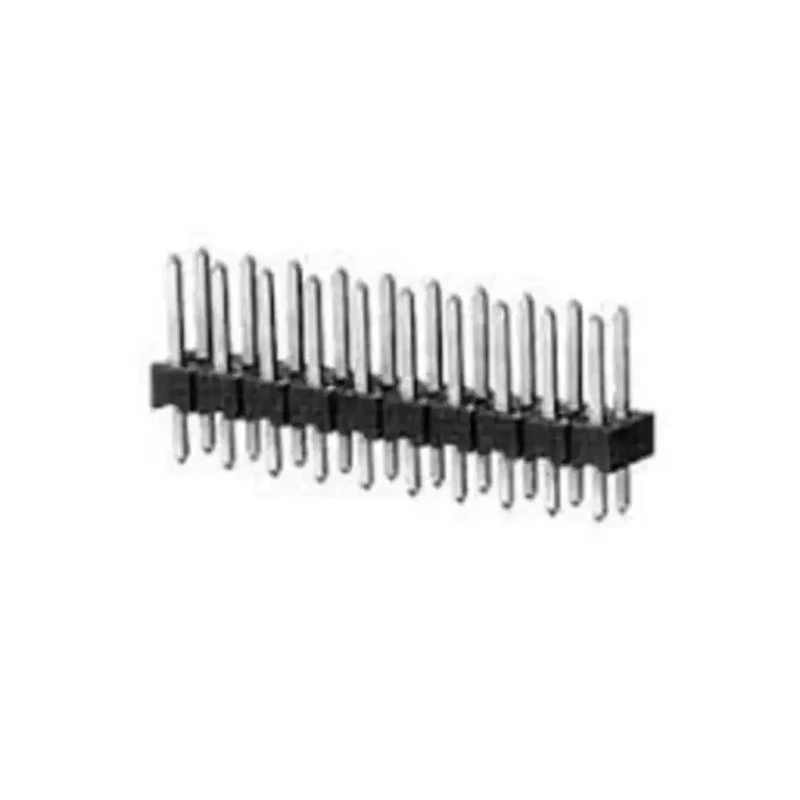

TE Connectivity AMPMODU Series Vertical Through Hole PCB Header, 14 Contacts, 2.54 mm Pitch, 2 Row 828430-7
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Vertical |
| Current | 5A |
| Model | 828430-7 |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | AMPMODU |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold, Tin |
| Number of Contacts | 14 |
| Contact Gender | Male |
| Connector System | Board-to-Board |
| Tail Pin Length | 2.65mm |
| Mating Pin Length | 5.9mm |
Key Features
- Features a 2.54 mm pitch for standard PCB spacing.
- Includes 14 male contacts arranged in two rows.
- Constructed with polybutylene terephthalate green housing for durability.
- Contact material is brass with gold and tin plating to ensure reliable connectivity.
- Supports a current rating of 5 A and voltage of 750 V.
- Vertical orientation with through-hole mount type facilitates firm PCB attachment.
- Tail pin length and mating pin length are 2.65 mm and 5.9 mm respectively for secure connections.
- Operating temperature range from -65°C to 105°C suitable for industrial environments.
Product Description
TE Connectivity 828430-7 AMPMODU Series Vertical Through Hole PCB Header is designed for secure board-to-board electrical connections. This two-row header features 14 male contacts spaced at a 2.54 mm pitch and incorporates a green polybutylene terephthalate housing that enhances mechanical strength and electrical insulation.
The connector features brass contacts with gold and tin plating to deliver excellent conductivity and corrosion resistance, ensuring stable signal integrity in demanding operating conditions. It supports a current capacity of 5 A and a voltage rating of 750 V, making it suitable for various electronic components and power assemblies in industrial, manufacturing, and commercial electronics.
Its vertical orientation and through-hole mounting type ensure robust mechanical retention during PCB assembly and reliable interfacing in multi-board systems. The tail pin length of 2.65 mm and mating pin length of 5.9 mm are optimized for solder termination and mating connectors, respectively.
The header operates reliably across a wide temperature range from -65°C to 105°C, suitable for harsh environments including industrial control, automation systems, and electronic instrumentation.
Features a 2.54 mm pitch for standard PCB spacing. Includes 14 male contacts arranged in two rows. Constructed with polybutylene terephthalate green housing for durability. Contact material is brass with gold and tin plating to ensure reliable connectivity.
Supports a current rating of 5 A and voltage of 750 V. Vertical orientation with through-hole mount type facilitates firm PCB attachment. Tail pin length and mating pin length are 2.65 mm and 5.9 mm respectively for secure connections.
Operating temperature range from -65°C to 105°C suitable for industrial environments.
This PCB header is an essential component for assembling reliable board-to-board electronic connections in electronics manufacturing, industrial control panels, automotive electronics, and communication equipment.
Explore the specialized range of connectors at EnvMart for high-quality electronic components meeting industrial standards.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 5 A and a voltage rating of 750 V, making it suitable for various electronic applications.
The contacts are arranged with a pitch of 2.54 mm, which is standard for PCB spacing.
This PCB header includes 14 male contacts arranged in two rows.
It is constructed with a polybutylene terephthalate green housing and features brass contacts with gold and tin plating for reliable connectivity.
It uses a through-hole mounting type, which facilitates firm attachment to the PCB.
The tail pin length is 2.65 mm and the mating pin length is 5.9 mm, optimized for secure connections.
It is designed for board-to-board connections, ensuring reliable electrical interfacing between PCBs.
This model belongs to the AMPMODU series, which is known for its reliable performance in electronic applications.
It uses solder termination, which is common for ensuring secure connections on PCBs.
The country of origin for this PCB header is India.
