Lumberg 8 Pole Straight M16 DIN Socket, Panel Mount Female, Threaded, 5A, 60V AC, IP68, DIN EN 60529, Series 304 0304 08

Free Delivery in India | Lowest Global Shipping Charges

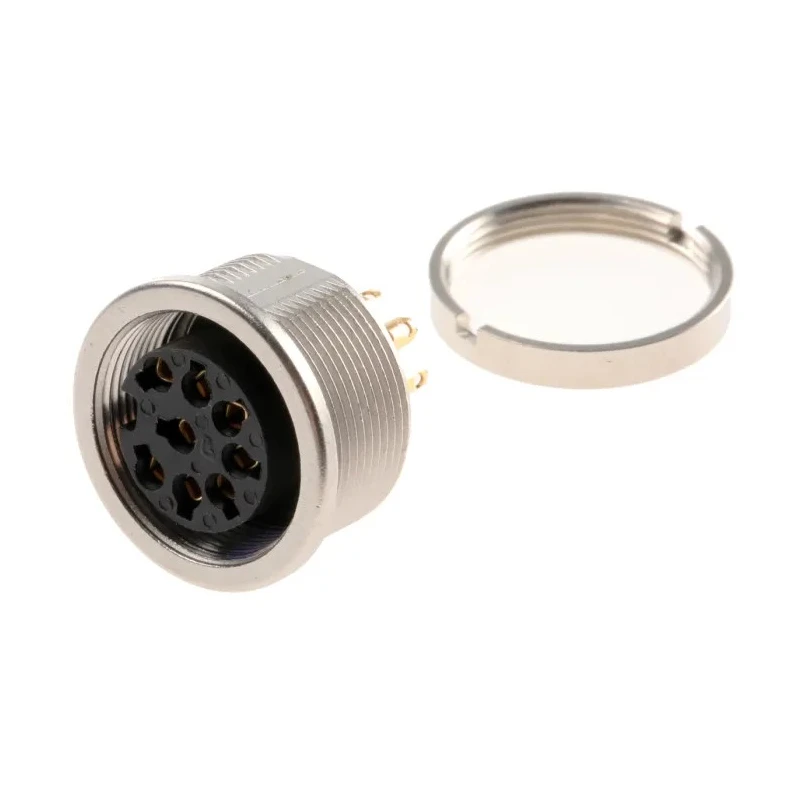

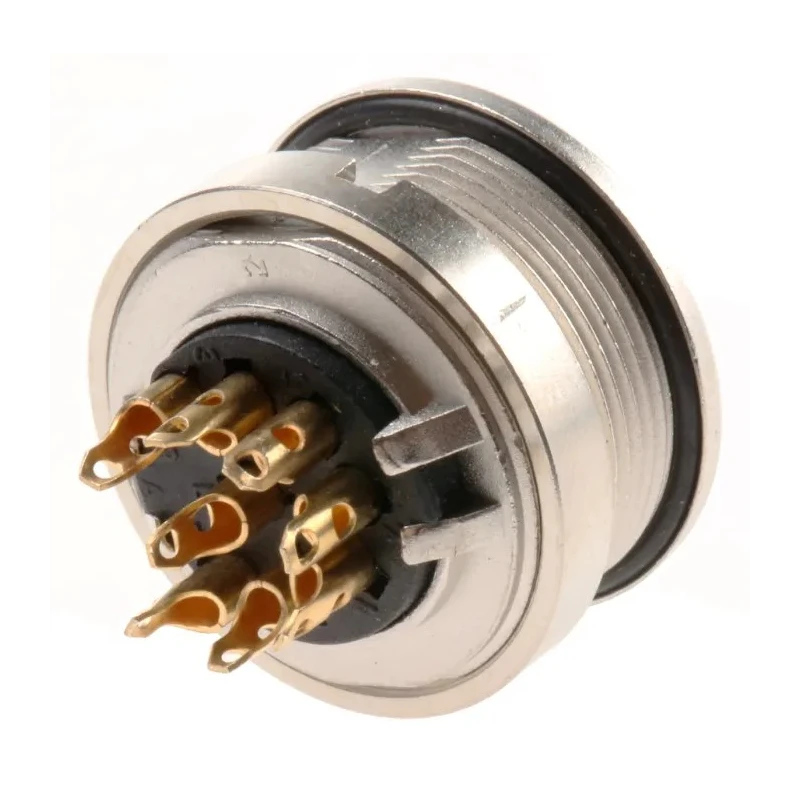

Lumberg 8 Pole Straight M16 DIN Socket, Panel Mount Female, Threaded, 5A, 60V AC, IP68, DIN EN 60529, Series 304 0304 08

Name: Lumberg 8 Pole Straight M16 DIN Socket, Panel Mount Female, Threaded, 5A, 60V AC, IP68, DIN EN 60529, Series 304 0304 08
Brand: LUMBERG
SKU: 99275
Price: 10.04 USD
Availability: InStock



Category DIN Connectors Brand LUMBERG Condition New

Specifications

Country of Origin	India
Voltage	60V ac
Brand	Lumberg
Orientation	Straight
Current	5A
Model	0304 08
IP Rating	IP68
Mount Type	Panel Mount
Housing Material	Die Cast Zinc
Contact Material	Brass
Series	304
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Pole Format	8
Contact Plating	Gold over Silver
Number of Contacts	8
Contact Gender	Female
Connector Gender	Female
Mating Type	Threaded
Connector Size	M16
DIN Number	DIN EN 60529

Key Features

The connector features a durable die cast zinc housing for enhanced mechanical strength.
It has brass contacts plated with gold over silver to ensure reliable electrical connection.
Designed for panel mount applications with front mounting and solder termination.
Operates reliably in temperatures from -40°C to 85°C.
Features a straight orientation with 8 poles and an M16 connector size.
Suitable for automation technology, control engineering, and medical instrumentation applications.
Meets IEC60130-9 standards for DIN connectors.
Rated IP68 for dust and water ingress protection.

Product Description

Lumberg 0304 08 is an 8-pole straight DIN socket designed for panel mount applications. It features a robust die cast zinc housing and brass contacts plated with gold over silver to provide a durable and reliable electrical connection. Rated for 5A current and 60V AC voltage, this connector complies with DIN EN 60529 and IEC60130-9 standards, ensuring high performance and safety.

The connector has a threaded mating type for secure fastening and comes with solder termination for stable electrical contact. Its operating temperature range is from -40°C to 85°C, allowing usage in diverse environmental conditions.

The device’s straight orientation and M16 connector size make it ideal for integration into various electronic assemblies requiring reliable connections. Its IP68 rating certifies protection against dust ingress and long-term immersion in water, making it suitable for demanding industrial environments.

Typical applications include automation technology, control engineering, and medical instrumentation where dependable connectors are critical. The front-mounted design simplifies installation and maintenance in panel applications.

The connector's housing is made of die cast zinc for enhanced mechanical strength. Brass contacts plated with gold over silver guarantee excellent conductivity and corrosion resistance. Threaded joint ensures secure connection and prevents accidental disconnections.

Solder termination offers reliable and lasting electrical contact. Wide operating temperature range supports use in harsh environmental conditions. Eight poles arranged in a circular pattern provide multi-contact connections.

Meets international standards including DIN EN 60529 and IEC60130-9. IP68 rating provides high-level ingress protection against dust and water.

Choose Lumberg DIN Connectors from the 304 series for trustworthy performance in demanding electronic and industrial setups. Explore a wide range of panel mount sockets, plugs, and accessories at EnvMart for your automation and control engineering needs.
