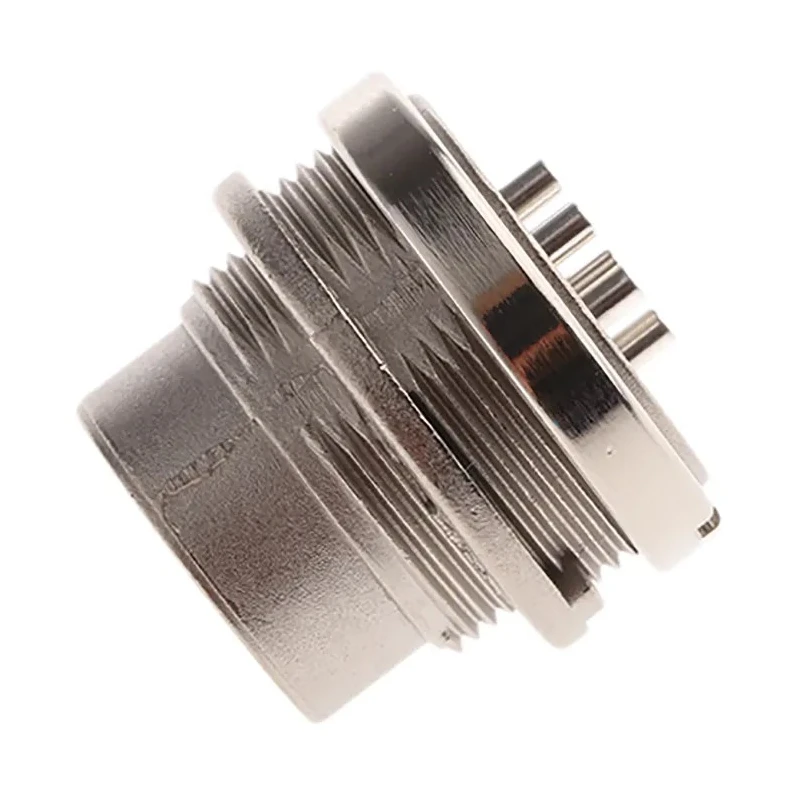

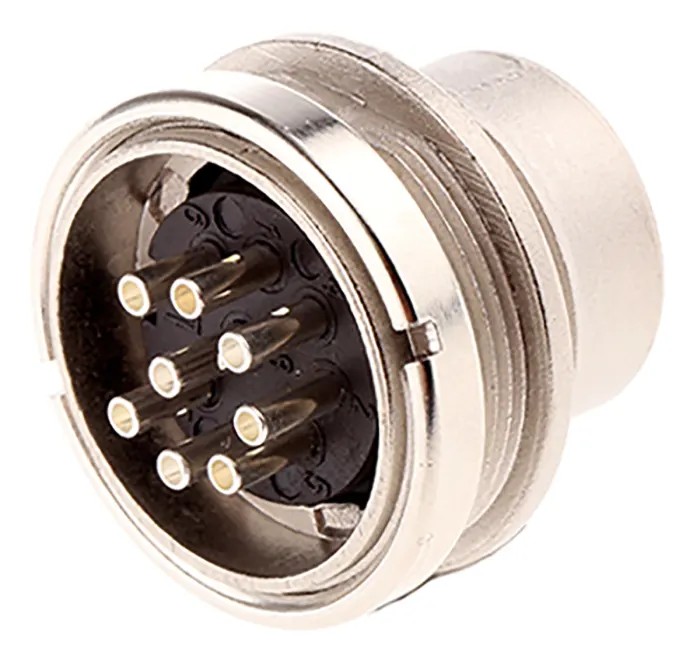

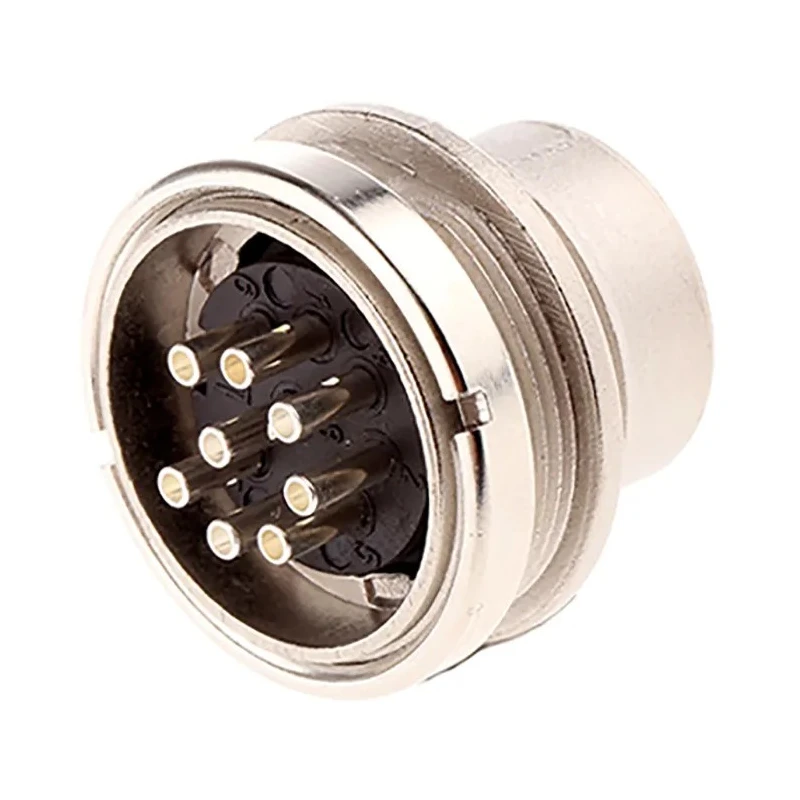

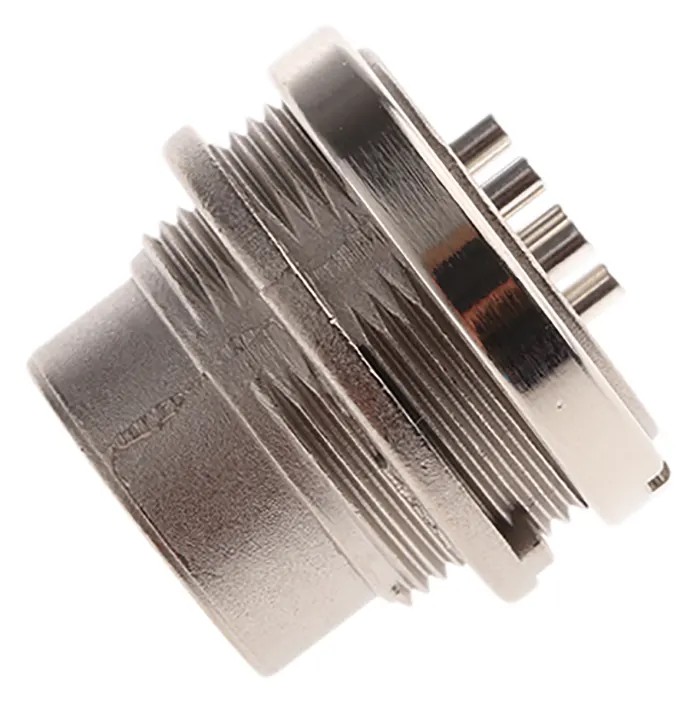

Amphenol Industrial C 091 A 8 Pole Straight M16 DIN Plug Panel Mount Male 4A 100V Screw Lock T3506000
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 100V |
| Brand | Amphenol Industrial |
| Orientation | Straight |
| Current | 4A |
| Model | T3506000 |
| IP Rating | IP40 |
| Mount Type | Panel Mount |
| Housing Material | Brass |
| Series | C 091 A |
| Termination Type | Solder |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -40°C |
| Shield Type | Shielded |
| Pole Format | 8 |
| Contact Plating | Silver |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Connector Gender | Male |
| Mating Type | Screw Lock |
| Connector Size | M16 |
| DIN Number | DIN 45326 |
Key Features
- The connector adopts a secure screw lock mounting system preventing accidental disconnection.
- It supports 8 contacts with silver-plated brass housing ensuring durability and conductivity.
- The connector is shielded and designed for panel mounting with a male gender and straight orientation.
- Operating temperature range spans from -40°C to 100°C suitable for varied industrial environments.
- Termination type is solder for reliable electrical connections.
- The product complies with DIN 45326 standard and features UL94V-2 rated housings for flame resistance.
- IP40 Ingress Protection rating guards against solid objects exceeding 1mm in size.
Product Description
Amphenol Industrial T3506000 is a high quality 8 pole straight M16 DIN plug designed for panel mount male applications. It provides a reliable electrical connection with silver plated contacts and a brass housing that ensures strength and corrosion resistance.
This circular connector features a secure screw lock mechanism that minimizes the risk of accidental disconnection, enhancing operational safety. It is rated for 4A current and 100V voltage, making it suitable for various low-power industrial electrical and electronic systems.
The connector is shielded and designed according to DIN 45326 standards with UL94V-2 rated housings providing good flame resistance. Operating temperature ranges from -40°C to 100°C, enabling use in diverse industrial environments, including manufacturing, automation, and instrumentation sectors.
Termination is by soldering which ensures firm and stable wiring. The IP40 rating offers protection against solid objects larger than 1mm but not against liquids. This component's compact M16 size and panel mount type allow for easy integration into control panels and industrial equipment.
The connector adopts a secure screw lock mounting system preventing accidental disconnection. It supports 8 contacts with silver-plated brass housing ensuring durability and conductivity. The connector is shielded and designed for panel mounting with a male gender and straight orientation.
Operating temperature range spans from -40°C to 100°C suitable for varied industrial environments. Termination type is solder for reliable electrical connections. The product complies with DIN 45326 standard and features UL94V-2 rated housings for flame resistance.
Rated voltage is 100V with a current rating of 4A suitable for low power industrial applications. IP40 Ingress Protection rating guards against solid objects exceeding 1mm in size. This Amphenol Industrial DIN connector is ideal for reliable interconnection solutions in electronics, automation, industrial machines, and power control systems.
Explore more connectors and DIN plug options at EnvMart for your industrial electrical needs.
Explore more products in our DIN Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a maximum current rating of 4A.
It is rated for a maximum voltage of 100V.
The operating temperature range spans from -40°C to 100°C.
Termination is by soldering, ensuring reliable electrical connections.
It has an IP40 ingress protection rating, guarding against solid objects larger than 1mm.
This unit supports 8 contacts.
It features a brass housing with silver-plated contacts.
This model is designed for panel mounting.
The connector has a male gender.
It complies with the DIN 45326 standard and features UL94V-2 rated housings for flame resistance.
It uses a secure screw lock mechanism to prevent accidental disconnection.
It is suitable for various low-power industrial electrical and electronic systems, including manufacturing and automation.
