Amphenol Industrial signalmate C091 5 Pole Straight M16 DIN Socket Panel Mount 5A 300V Screw-On T3363 100 RS

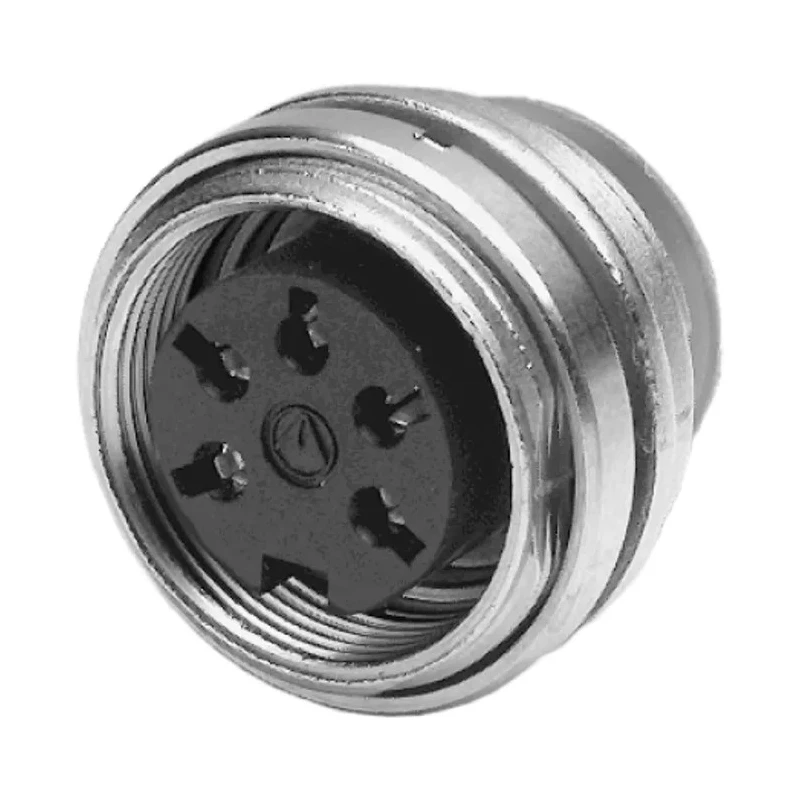

Amphenol Industrial T3363 100 RS signalmate C091 5 Pole Straight M16 DIN Socket is a panel mount circular connector designed for industrial signal transmission applications. It operates up to 5 amps current and supports voltages up to 300 volts, featuring a robust screw-on mating type for secure connections.

The connector is constructed with a combination of durable polymer and metal housing materials, making it suitable for demanding environments. The female contacts are made of brass with silver plating to ensure excellent electrical performance and resistance to corrosion, enhancing long-term reliability.

Rated at IP40, it provides protection against solid ingress larger than 1 mm, making it appropriate for use in many industrial and manufacturing settings. The operational temperature ranges from -40°C to 85°C, accommodating a variety of climates and thermal operating conditions.

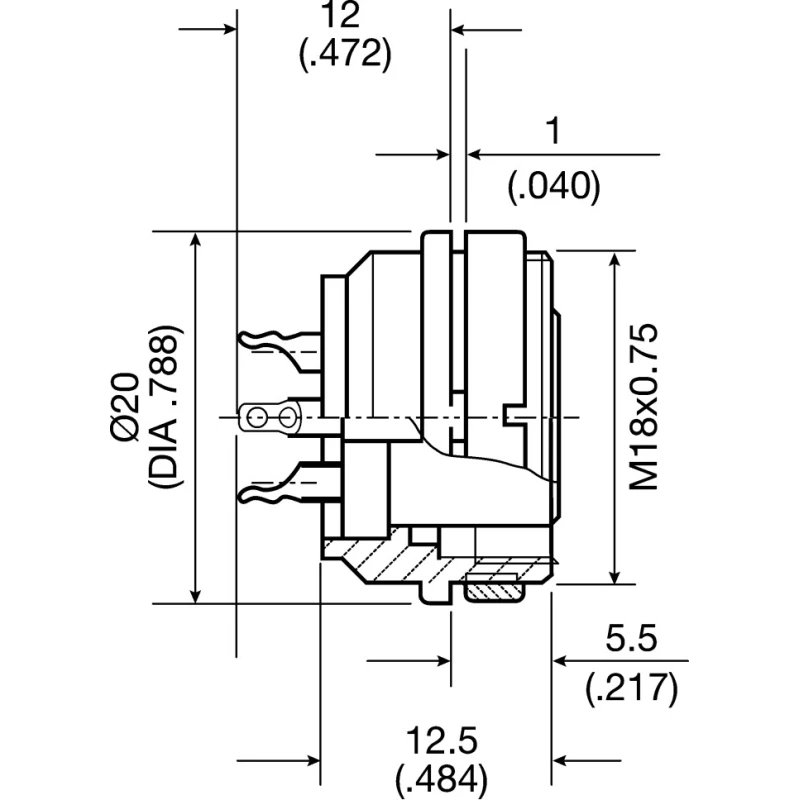

This model features a panel socket rear mount with a metal ring nut and metal screw thread, which ensures solid mechanical retention. The internal metal strain relief adds to the connector's durability and resistance to mechanical stress. It is compliant with DIN EN 60130-9 / IEC 60130-9 standards concerning metal locking ring and screw locking mechanisms, guaranteeing standard-compliant coupling.

The solder termination provides a reliable method for cable termination in electrical assemblies. These connectors are optimum for industrial, manufacturing, automation, and signal transmission applications where secure and high-quality electrical connections are essential.

The connector features a straight orientation with a 5 pole format for efficient signal connections. It includes a screw-on mating type ensuring secure and stable attachment. Manufactured using high-quality polymer and metal housing materials for durability.

Silver-plated brass contacts provide excellent conductivity and resistance to corrosion. IP40 rated for protection against solid objects larger than 1mm. Temperature operating range from -40°C to 85°C suits industrial environments.

The solder termination type allows robust and reliable solder connections. Panel socket design with a metal screw thread and locking ring for secure mounting. Compliant with DIN EN 60130-9 / IEC 60130-9 standards for metal locking ring and screw locking.

This product is ideal for use across industrial electronics, automation, manufacturing, and related professional electrical connector applications. Browse EnvMart's extensive range of DIN Connectors for compatible and complementary components and accessories.
