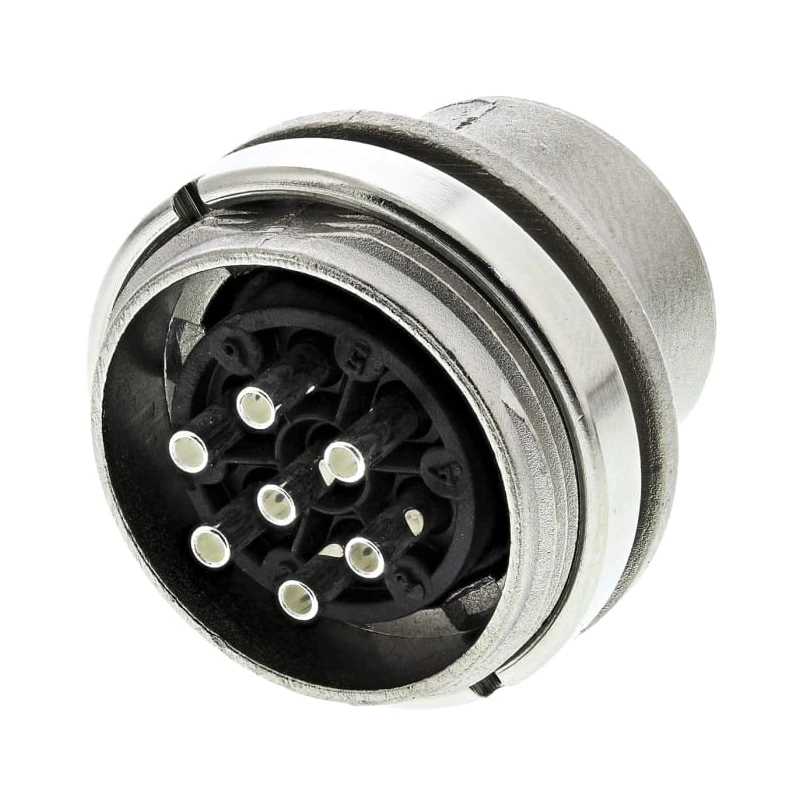

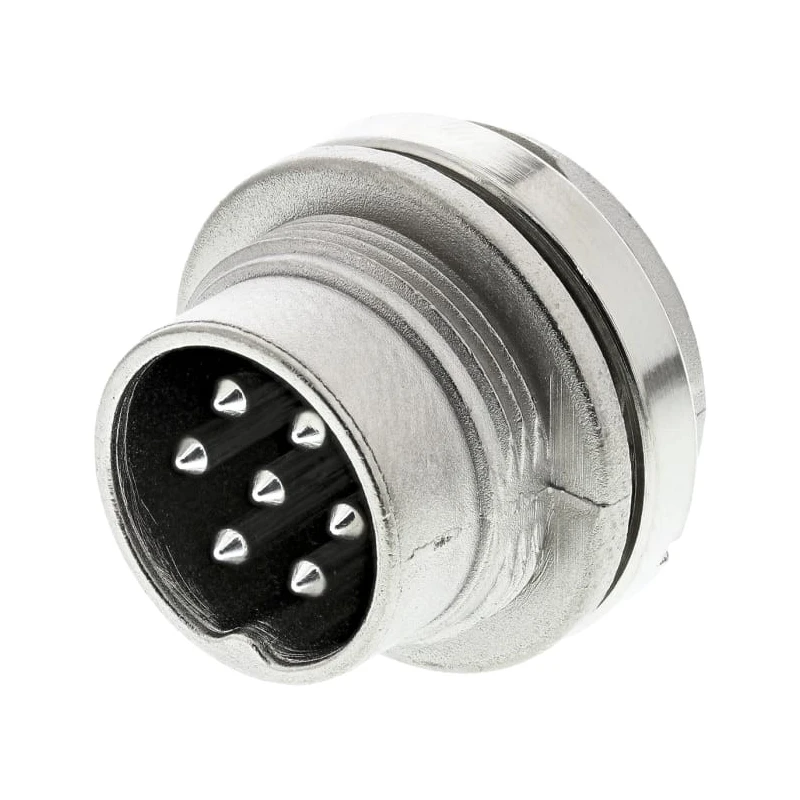

Amphenol Industrial signalmate C091 7 Pole Straight M16 DIN Plug, 5A, 300V, IP40, Screw-On Panel Mount T3477 000 RS

Free Delivery in India | Lowest Global Shipping Charges

Amphenol Industrial signalmate C091 7 Pole Straight M16 DIN Plug, 5A, 300V, IP40, Screw-On Panel Mount T3477 000 RS

Name: Amphenol Industrial signalmate C091 7 Pole Straight M16 DIN Plug, 5A, 300V, IP40, Screw-On Panel Mount T3477 000 RS
Brand: Amphenol Industrial
SKU: 124015



Category DIN Connectors Brand Amphenol Industrial Condition New

Specifications

Country of Origin	China
Voltage	300V
Brand	Amphenol Industrial
Orientation	Straight
Current	5A
Model	T3477 000 RS
IP Rating	IP40
Mount Type	Panel Mount
Housing Material	Metal, Polymer
Contact Material	Brass
Series	signalmate C091
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Pole Format	7
Contact Plating	Silver
Number of Contacts	7
Contact Gender	Male
Mating Type	Screw-On
Connector Size	M16

Key Features

Features 7 contacts for reliable electrical connections.
Designed for panel mount applications with a straight orientation.
Constructed with metal and polymer housing for durability.
Contact material is brass with silver plating for enhanced conductivity.
Operates efficiently between -40°C and 85°C temperature range.
Termination type is solder for secure connections.
Offers silver-plated contacts and internal metal strain relief for reliability.
IP40 rated providing protection against solid objects greater than 1 mm.

Product Description

Amphenol Industrial T3477 000 RS signalmate C091 7 Pole Straight M16 DIN Plug is a robust circular connector suitable for panel mount applications. Rated for 5A current and 300V voltage, this connector features a screw-on mating style and straight orientation, ensuring reliable and secure connections in industrial and electronic environments.

The connector’s housing combines metal and polymer materials providing durability and protecting the internal components. Brass contacts with silver plating ensure high conductivity and resistance to corrosion. The termination type is solder, supporting a secure attachment of wires for dependable electrical performance.

Designed to operate within an extensive temperature range from -40°C to 85°C, this connector is suitable for various industrial settings, including manufacturing, automation systems, and control panels. The IP40 rating protects against solid objects larger than 1 mm, making it ideal for general industrial use where dust resistance is needed without exposure to liquids.

The panel mount design allows easy integration into control cabinets and equipment with a mounting ring or hex nut, including a 3.5 mm panel depth for installation versatility. The metal locking ring facilitates screw locking adhering to DIN EN 60130-9 and IEC 60130-9 standards, ensuring secure mechanical stability during operation.

This product includes internal metal strain relief which enhances the longevity by reducing strain on soldered contacts. It is UL registered under file number E 63 093, underscoring its compliance with recognized safety and quality standards.

Features 7 contacts for reliable connections. Panel mount with screw-on mating type. Durable metal and polymer housing. Brass contacts with silver plating. Wide temperature operating range from -40 to 85°C. Solder termination ensuring secure wiring.

IP40 protection rating. Metal locking ring for secure mounting. Internal metal strain relief for durability. UL registered for safety compliance.

This connector is ideally suited for industrial electronics, automation systems, and general electronic assembly requiring robust and reliable panel mount DIN connectors. Explore more products in the DIN Connectors category for complementary solutions at EnvMart.
