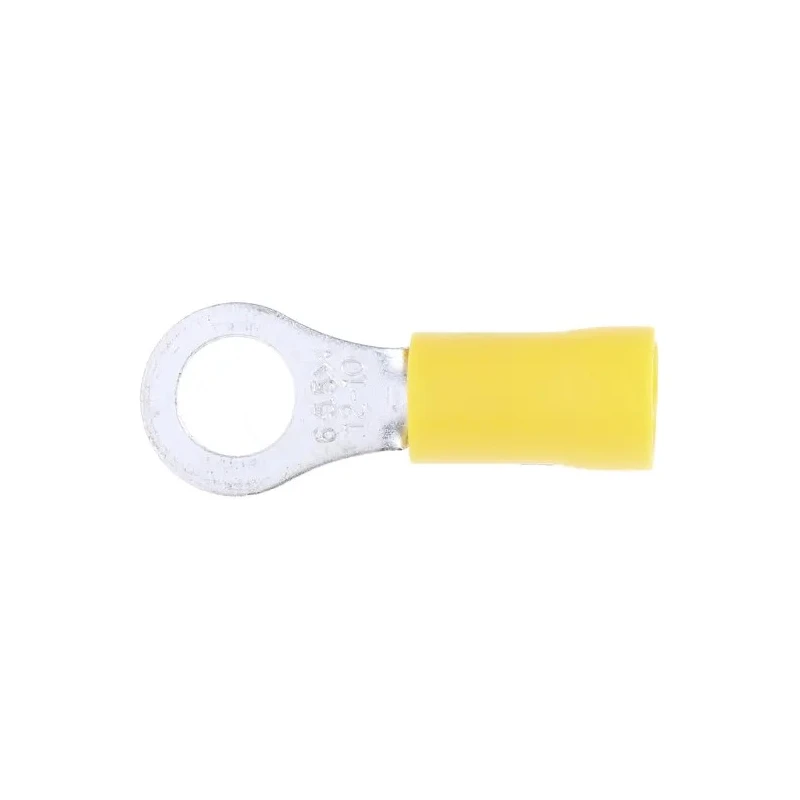

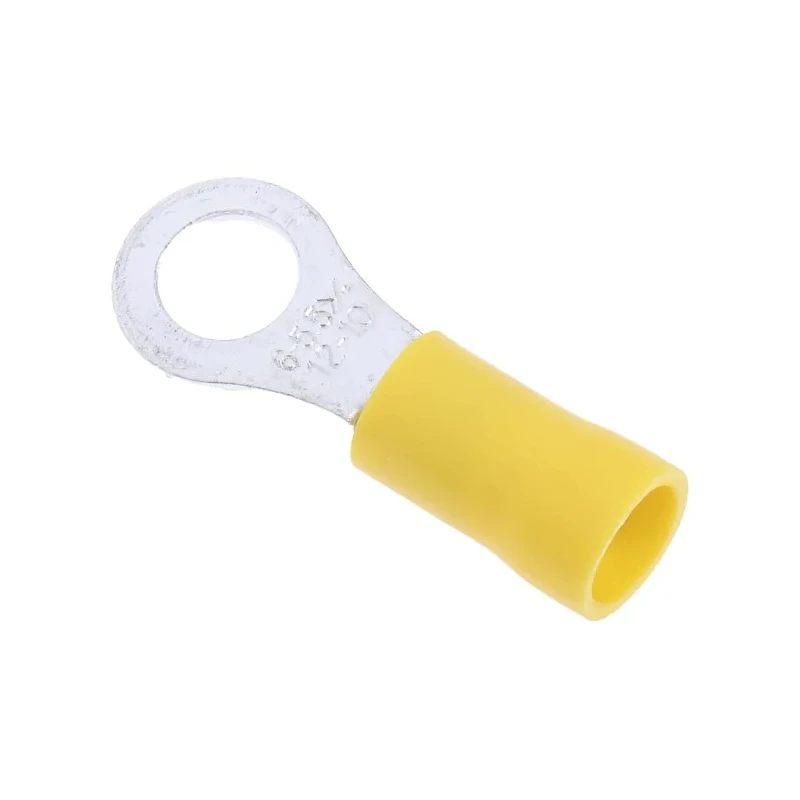

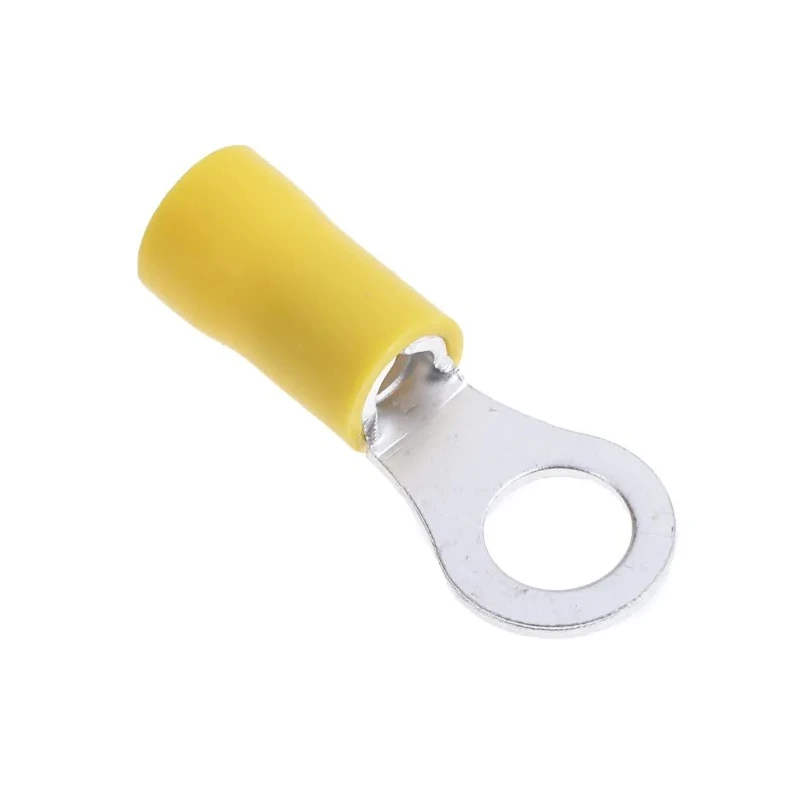

RS PRO Insulated Ring Terminal M6 Stud Size, 12 AWG to 10 AWG Yellow 534-430
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Colour | Yellow |
| THICKNESS | 1mm |
| Model | 534-430 |
| Insulation | Insulated |
| Overall Length | 29mm |
| Contact Material | Copper |
| Insulation Material | Polyvinyl Chloride |
| Minimum Operating Temperature | 75°C |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 2.5mm² |
| Maximum Wire Size mm² | 6mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 10AWG |
| Outer Ring Diameter | 11mm |
| Inner Ring Diameter | 6.35mm |
| Stud Size | M6 |
| CRIMP CONNS-EYELET OBABrand | NEUTRAL |
Key Features
- Insulated ring terminal designed for secure electrical cable termination.
- Accommodates wire sizes from 12 AWG to 10 AWG, with yellow color coding for quick identification.
- M6 stud size ensures compatibility with industry-standard posts and hardware.
- Made from highly conductive copper with tin plating for superior conductivity and corrosion resistance.
- Polyvinyl chloride (PVC) insulation provides robust electrical protection and aids wire insertion.
- 29 mm overall length and 6.35 mm inner ring diameter for reliable fitment.
- Suitable for industrial control systems, automotive wiring, and communication equipment.
- Supports wire sizes up to 6 mm²; minimum wire size 2.5 mm².
Product Description
The RS PRO 534-430 Insulated Ring Terminal is engineered to provide secure and reliable cable connections in a wide range of electrical assemblies. Designed for use with 12 AWG to 10 AWG wires, this terminal features a color-coded yellow polyvinyl chloride insulation that offers both protection and easy size identification for installers. The M6 stud sizing ensures compatibility with common posts and terminals found in many industrial and automotive applications.
Constructed with a highly conductive copper body, the terminal is tin plated to maximize electrical conductivity and resistance to corrosion, making it suitable for long-term performance in demanding environments. The overall length of 29 mm and a 6.35 mm inner ring diameter ensure accurate fitment, while the 11 mm outer ring diameter and 1 mm thickness add strength and durability.
The expanded insulation entry makes wire installation straightforward and effective, reducing the risk of improper crimping or insulation damage. Once crimped onto the wire, the terminal delivers a robust, reliable connection that withstands physical and electrical stresses. The yellow insulation simplifies identification in multi-wire harnesses, promoting efficient maintenance and repair.
This insulated Ring Terminal is ideal for use across industrial control panels, machine wiring, automotive electrical systems, communication devices, power supplies, and domestic appliances. It enables secure mounting of cable ends onto M6 studs or terminals, using nuts or soldering for final fixation.
Performance is assured for operating temperatures up to 75°C, with supported wire sizes ranging from 2.5 mm² to 6 mm². The product is compliant with essential wiring and installation needs, though no formal certifications are indicated. Manufacture origin is listed as Taiwan.
Whether employed in machinery, control cabinets, vehicles, or telecommunications, RS PRO insulated terminals are trusted for their efficiency, durability, and reliable color-coding. Explore related RS PRO wire terminals and connectors for further quality solutions from the EnvMart electronics category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This insulated ring terminal accommodates wire sizes from 12 AWG to 10 AWG, with a minimum wire size of 2.5 mm² and a maximum of 6 mm².
The stud size for this model is M6, ensuring compatibility with standard posts and hardware.
The terminal is made from highly conductive copper, which is tin plated for enhanced conductivity and corrosion resistance, while the insulation is made from polyvinyl chloride (PVC).
The overall length of the terminal is 29 mm, with an inner ring diameter of 6.35 mm and an outer ring diameter of 11 mm.
The terminal is rated for a maximum operating temperature of 75°C.
The PVC insulation provides robust electrical protection and simplifies wire insertion, reducing the risk of improper crimping or insulation damage during installation.
This model is suitable for a variety of applications including industrial control systems, automotive wiring, communication equipment, and power supplies.
The thickness of this insulated ring terminal is 1 mm.
The terminal features yellow color coding, which aids in quick identification during installation and maintenance, especially in multi-wire harnesses.
The contact material of this terminal is copper, which is known for its excellent conductivity.
This terminal is manufactured in Taiwan.
The outer ring diameter of this insulated ring terminal is 11 mm.
