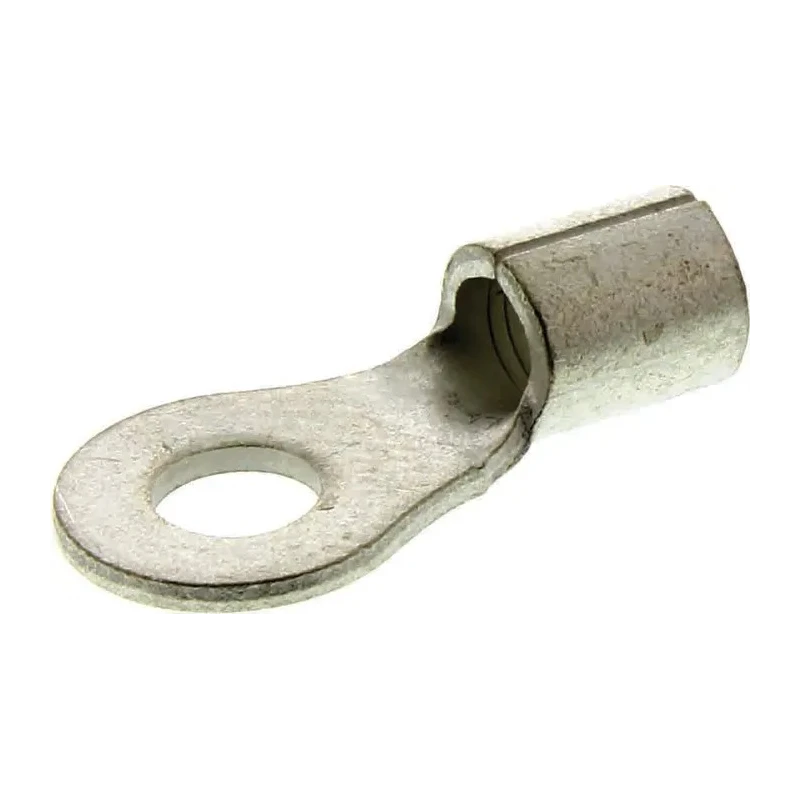

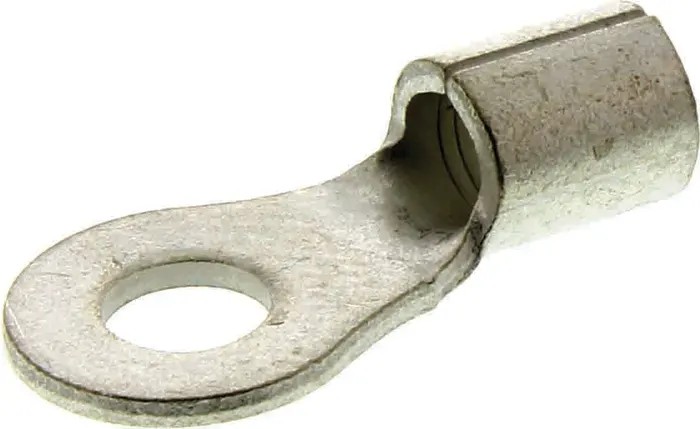

TE Connectivity Solistrand Uninsulated Ring Terminal M10 Stud Size 2 AWG Copper Tin-Plated 160002
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| THICKNESS | 1.8mm |
| Model | 160002 |
| Insulation | Uninsulated |
| Overall Length | 42mm |
| Contact Material | Copper |
| Series | Solistrand |
| Maximum Operating Temperature | 170°C |
| Standards/Approvals | RoHS, ANSI/ESD S20.20:2021 Electrostatic Control Standard |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 26.7mm² |
| Maximum Wire Size mm² | 42.4mm² |
| Minimum Wire Size AWG | 2AWG |
| Outer Ring Diameter | 22.2mm |
| Inner Ring Diameter | 10.5mm |
| Stud Size | M10 |
| Standards/Approvals RoHS, ANSI/ESD S20.20 | 2021 Electrostatic Control Standard |
Key Features
- Constructed from high conductivity copper for superior electrical performance.
- Electro tin plating provides improved resistance to corrosion.
- Accommodates 2 AWG wire sizes, ideal for heavy-duty applications.
- Uninsulated, robust design suitable for harsh environments.
- M10 stud size with 22.2 mm outer and 10.5 mm inner ring diameter.
- Serrated barrel for maximum tensile strength after crimping.
- Brazed seams improve mechanical strength and durability.
- Bell-shaped barrel entrance enables quick and easy wire insertion.
Product Description
TE Connectivity 160002 Solistrand Uninsulated Ring Terminal is a high-performance crimp terminal engineered for reliable termination of solid and stranded wires. Designed for heavy-duty electrical connections, it features a robust barrel accommodating 2 AWG conductors, suitable for materials handling equipment, motors, pad and pole mount transformers, switchgear, telecommunications, and industrial control panels.
Made from fine grade, high conductivity copper and finished with electro tin plating, this terminal ensures optimal electrical contact and enhanced corrosion resistance. The uninsulated design makes it versatile for use in environments requiring direct conductor connection without the need for insulation sleeves.
The terminal includes a closed barrel with brazed seams, which boosts mechanical strength and resistance in harsh industrial settings. The inner surface is serrated, maximizing tensile strength and electrical contact area after crimping, resulting in a reliable, vibration-resistant connection.
Its bell-shaped barrel entrance simplifies wire insertion, improving installation speed and efficiency. The M10 stud size is paired with outer and inner ring diameters of 22.2 mm and 10.5 mm respectively, accommodating wire sizes from 26.7 mm² to 42.4 mm². The overall length is 42 mm with a thickness of 1.8 mm.
Rated for operation up to 170°C, the Solistrand terminal meets stringent standards including RoHS and ANSI/ESD S20.20:2021 for electrostatic control, making it suitable for industrial, commercial, and manufacturing sectors.
Optimal for materials handling, heavy equipment, transformers, and power instrumentation. Serrated barrel and brazed seams enhance electrical performance and tensile strength. Bell-shaped barrel entrance streamlines installation for field technicians.
Meets RoHS and ANSI/ESD S20.20:2021 standards. Explore more industry-grade electrical terminals in the Ring Terminal category or browse the full TE Connectivity range on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this terminal is 170°C.
This terminal can accommodate wire sizes from 26.7 mm² to 42.4 mm², which corresponds to 2 AWG.
The outer ring diameter is 22.2 mm and the inner ring diameter is 10.5 mm.
It is constructed from high conductivity copper and finished with electro tin plating for improved corrosion resistance.
The overall length of this terminal is 42 mm, and its thickness is 1.8 mm.
This model is uninsulated, designed for direct conductor connections without insulation sleeves.
It meets RoHS and ANSI/ESD S20.20:2021 standards for electrostatic control.
The stud size for this terminal is M10.
The serrated barrel maximizes tensile strength and electrical contact area after crimping, ensuring a reliable connection.
This terminal is suitable for heavy-duty applications including materials handling equipment, motors, transformers, and industrial control panels.
The bell-shaped barrel entrance simplifies wire insertion, improving installation speed and efficiency.
The country of origin for this terminal is India.
