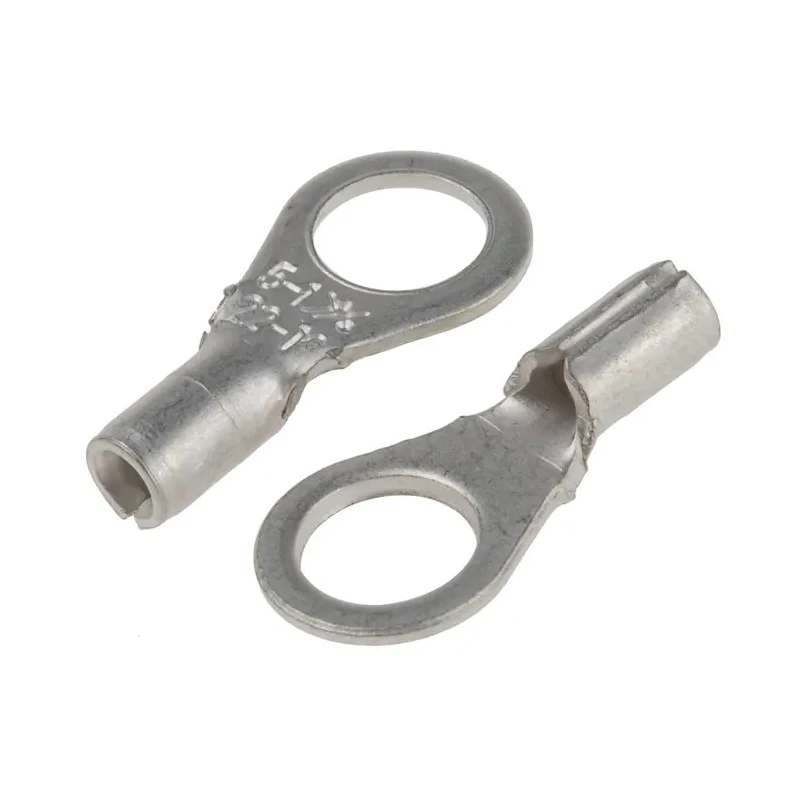

RS PRO Uninsulated Crimp Ring Terminal M5 Stud Size, 22 AWG - 16 AWG Wire, Copper Tin-Plated 433-012

The RS PRO 433-012 Uninsulated Crimp Ring Terminal is engineered for high-quality, dependable connections in electrical and industrial applications. Designed for M5 stud mountings, it accommodates wire sizes from 22 AWG to 16 AWG, making it versatile for a wide range of installations. The terminal is formed from a single sheet of copper and finished with a tin plating, delivering superior conductivity and resistance to corrosion while facilitating easy soldering.

This terminal features a closed barrel with a butted seam, ensuring that the crimp fits securely around the wire without splitting, even under maximum pressure. The funnel-shaped internal barrel simplifies wire insertion and helps streamline assembly during installation.

Its uninsulated configuration provides direct contact, ideal for situations where insulation is not required and high conductivity is essential. The copper construction ensures robustness and outstanding electrical performance, while the tin plating augments durability by enhancing corrosion protection and minimizing friction.

The RS PRO 433-012 terminal withstands temperatures up to 150°C, making it suitable for use in challenging environments such as industrial control panels, automotive wiring harnesses, power supply circuits, communication equipment, and domestic appliances. It is compliant with ANSI/ESD S20.20:2021 and RoHS standards, affirming its reliability and safety in electrostatic-sensitive applications.

Proper selection is key: users should ensure wire gauge and stud size compatibility. During installation, strip the wire, insert it into the barrel, and crimp securely using a ratchet crimping tool for the best quality connection.

This terminal is a dependable choice for manufacturing, automation, panel assembly, and maintenance tasks where secure and efficient wire-to-stud connections are critical. Durable one-piece copper construction with tin plating.

Maximum operating temperature up to 150°C. Supports wire sizes from 22 AWG to 16 AWG. Closed barrel with butted seam prevents splitting under pressure. Funnel-shaped internal barrel for easy wire insertion. Ideal for industrial, automotive, communication, and domestic installations.

Satisfies ANSI/ESD S20.20:2021 and RoHS standards. Explore more RS PRO terminals and industrial electrical components in the Electronics & Electricals category on EnvMart.
