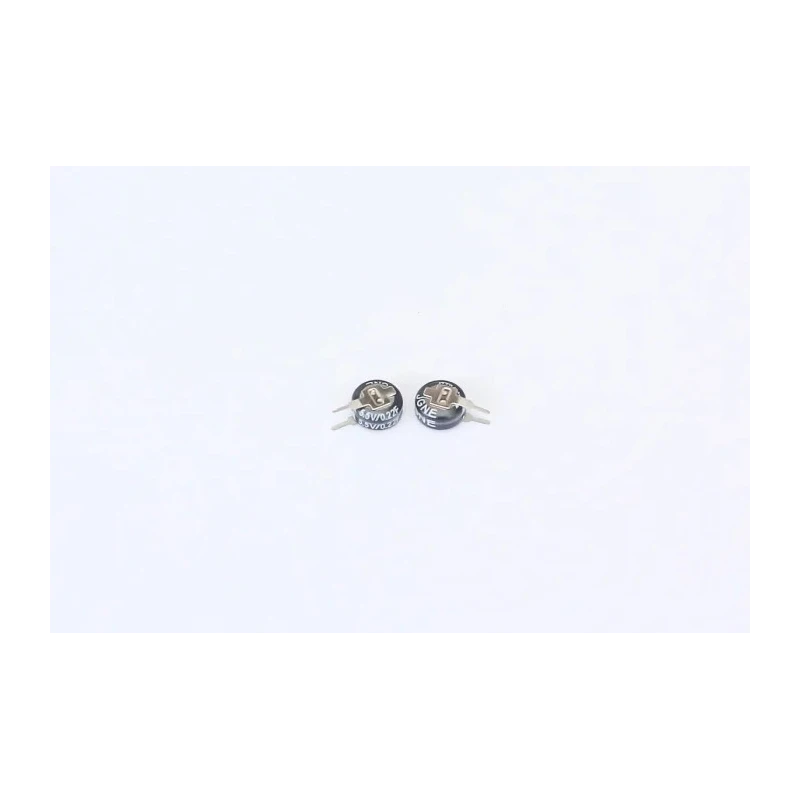

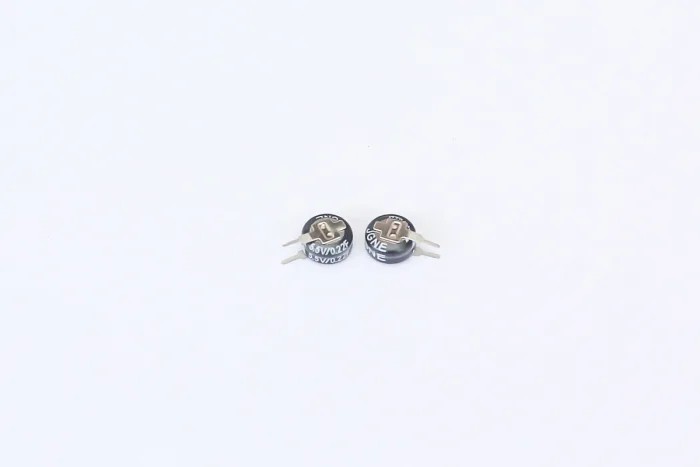

RS PRO 0.22 F Electric Double Layer Supercapacitor 5.5V dc, -20 to 80 % Tolerance, PCB Mount RS PRO-184-5036

RS PRO 184-5036 is a premium quality 0.22 F electric double layer capacitor (EDLC) designed for PCB mounting with a rated voltage of 5.5V dc. This supercapacitor offers a wide capacitance tolerance range from -20 % to +80 %, securing flexible operational performance for various industrial and electronic applications.

Incorporating a low leakage current of 5μA (measured over 24 hours), it maintains energy efficiency and reliability in power supply circuits. The capacitor is built with a polar lead pitch of 4.5mm ensuring accurate installation onto printed circuit boards. Its compact diameter of 9.5mm and height of 14.1mm make it suitable for space-constrained designs.

Operating temperature ranges from -40°C to 70°C, making it robust for use in harsh environments including UPS backup power supplies, solar battery operated circuits, motor drives with quick charging needs, and electronic metering equipment. Its equivalent series resistance (ESR) of 75mΩ supports optimal power delivery and reduces energy loss.

Designed for long-term endurance with a rated lifetime of 200000 cycles, the RS PRO 184-5036 supercapacitor ensures consistent performance over numerous charge/discharge cycles. It meets recognized industry safety and electromagnetic standards including BS EN 61340-5-1:2007 and ANSI/ESD S20.20:2014, certifying its reliability and compliance for industrial usage.

Capacitance rating of 0.22 Farads suitable for energy storage applications. Voltage rating of 5.5V dc ensures compatibility with low voltage circuits. PCB mount type simplifies integration into printed circuit boards. Tolerance range from -20 % to +80 % allowing flexible performance variability.

Operating temperature from -40°C to 70°C suitable for rugged environments. Low leakage current of 5μA ensuring high efficiency energy retention. Polarized with polar lead pitch of 4.5mm for precise circuit connection. Equivalent series resistance (ESR) of 75mΩ optimizing power delivery.

Durability with a lifetime of 200000 charge-discharge cycles for long-term use. Complies with BS EN 61340-5-1:2007 and ANSI/ESD S20.20:2014 standards for safety and reliability.

This supercapacitor is ideal for use in industrial equipment, solar power systems, uninterruptible power supplies (UPS), motor drives requiring rapid charging, and electronic metering devices. The combination of durability, low leakage current, and wide temperature range makes it a reliable choice for power management solutions.
