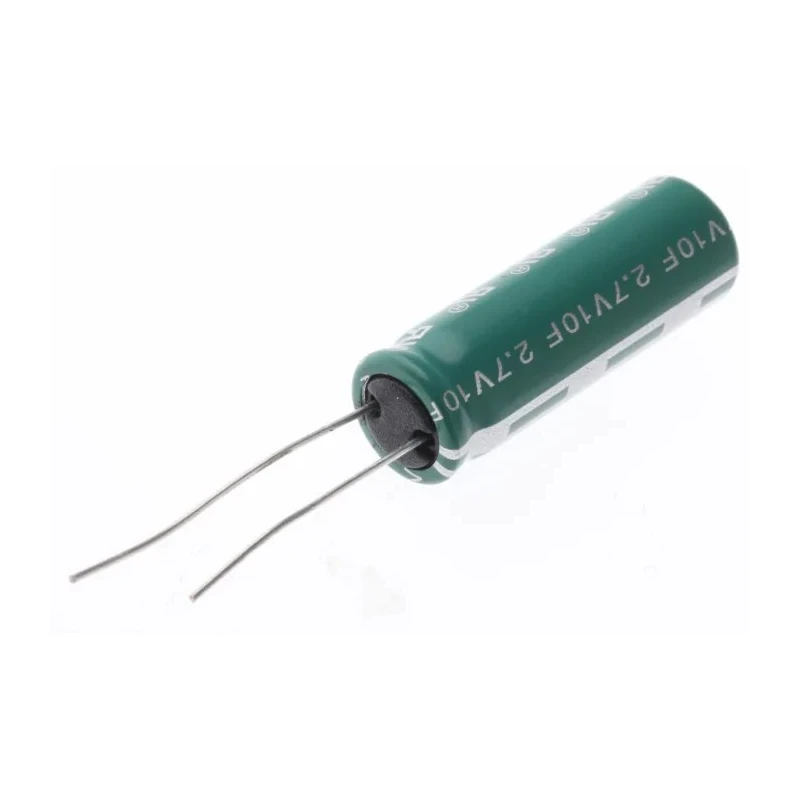

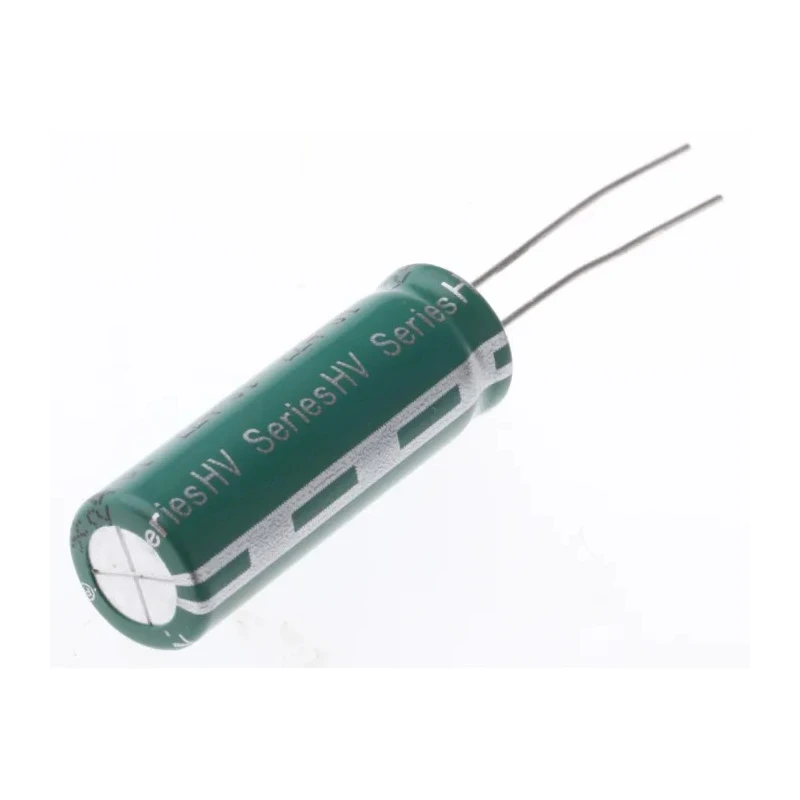

Eaton 10 F Supercapacitor -10 to 30 % Tolerance, Supercap HV 2.7V dc Through Hole HV1030-2R7106-R

Eaton HV1030-2R7106-R is a 10 F Supercapacitor from the Supercap HV series designed to provide ultra-high capacitance and power density with a voltage rating of 2.7V DC. This Through Hole mounted device is constructed with electrochemical double layer capacitor (EDLC) technology and high performance materials, ensuring reliable energy storage and fast charge/discharge cycles.

This cylindrical cell capacitor features a capacitance tolerance of -10 to 30%, offering flexibility in various electronic applications. It operates efficiently within a temperature range of -40°C to 65°C and delivers low leakage current of 23μA, maintaining energy efficiency over long periods.

The device has an Equivalent Series Resistance (ESR) of 34mΩ, which is critical for applications requiring high power density and minimal energy loss. With a lead diameter of 0.6 mm and a 5 mm lead pitch, it supports solder terminal connections and Through Hole mounting for straightforward PCB assembly.

Certified with UL and RoHS standards, this supercapacitor is well-suited for industrial, electronic, and power storage solutions including backup power, energy harvesting, and high power pulse applications.

Capacitance of 10 farads ensuring high energy storage capacity. Voltage rating of 2.7 volts DC for reliable operation. Through Hole mounting for easy PCB installation. Low Equivalent Series Resistance (ESR) of 34 milliohms for efficient performance.

Operating temperature range from -40°C to 65°C suitable for various environments. Electrical double layer capacitor family providing ultra-high capacitance. Leakage current rated at 23 microamperes to minimize power loss.

Durable cylindrical cell package designed for industrial applications. Lead diameter of 0.6 mm and 5 mm lead pitch for solder terminal connections. Certified to UL and RoHS standards ensuring compliance and safety.

This supercapacitor is an ideal choice for electronics manufacturers and engineers working in industrial power systems, backup power supplies, energy harvesting devices, and other advanced electronic components applications. Eaton remains a trusted brand for high-quality power solutions worldwide. Explore other Eaton products and Supercapacitor options at EnvMart for comprehensive power component needs.
