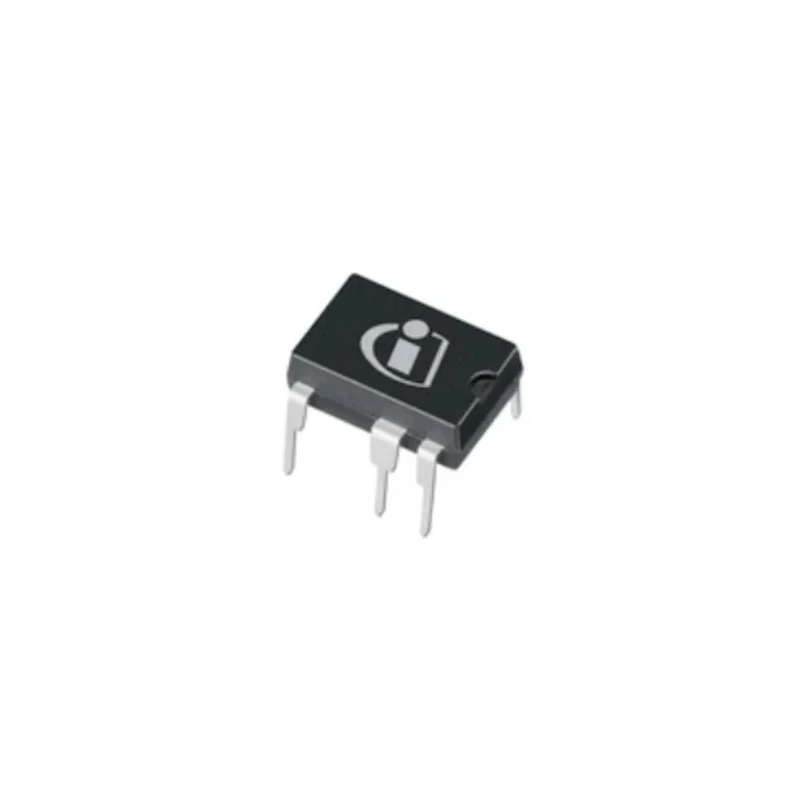

Infineon Quasi Resonant 5-Channel 7-Pin DIP Package Power Management IC ICE3AR2280CJZXKLA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 1.75mm |
| Length | 10mm |
| Model | ICE3AR2280CJZXKLA1 |
| Mount Type | Surface |
| Maximum Duty Cycle | 50% |
| Series | ICE2QR2280 |
| Maximum Operating Temperature | 130°C |
| Package Type | DIP |
| Sub Type | Quasi Resonant |
| Minimum Operating Temperature | -25°C |
| Switching Frequency | 100kHz |
| Maximum Input Voltage | 27V |
| Minimum Input Voltage | -0.3V |
| Pin Count | 7 |
Key Features
- Integrated 800V avalanche rugged CoolMOS™ technology ensures high reliability.
- Supports fixed frequency current mode flyback PWM control at 100kHz switching frequency.
- Max operating temperature up to 130°C for robust industrial applications.
- Features input CCM mode, latch enable and fast latch reset for system protection.
- Includes brownout feature and active burst mode to minimize standby power consumption.
- Adjustable blanking window facilitates load jumps without disturbances.
- High voltage start-up cells enable fast controller power-up from rectified line.
Product Description
Infineon ICE3AR2280CJZXKLA1 Quasi Resonant 5-Channel 7-Pin DIP Package Power Management IC operates at a fixed switching frequency of 100kHz and supports AC/DC conversion applications requiring efficient power management.
This integrated circuit features 800V avalanche rugged CoolMOS™ technology combined with a startup cell and current mode flyback PWM controller, making it suitable for designing 24W switched-mode power supplies (SMPS).
Additional functionalities include input CCM mode operation, latch enable and fast latch reset for enhanced fault tolerance, as well as a brownout feature to protect against low voltage conditions.
The device implements an active burst mode to achieve extremely low standby power consumption, making it highly energy efficient for industrial, consumer electronics, and power supply systems.
Its frequency jittering capability reduces electromagnetic interference (EMI), improving compliance with regulatory standards. An adjustable blanking window is included to smooth load jumps, while high voltage start-up cells allow rapid powering from the rectified input line.
Integrated 800V rugged CoolMOS™ for durable operation. Fixed 100kHz switching frequency with frequency jitter to reduce EMI. Input CCM mode and latch enable for system protection. Brownout and active burst mode features for low power standby operation.
Adjustable blanking window and quick startup capability.
This power management IC is ideal for industrial control systems, switched-mode power supplies, consumer electronics, and HVAC applications requiring reliable voltage regulation and power conversion.
Choose Infineon Quasi Resonant IC ICE3AR2280CJZXKLA1 for efficient and robust Voltage Controller needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for the Infineon ICE3AR2280CJZXKLA1 is 130°C.
This model operates at a fixed switching frequency of 100kHz.
The maximum input voltage is 27V, while the minimum input voltage is -0.3V.
The Infineon ICE3AR2280CJZXKLA1 has a pin count of 7 and comes in a DIP package type.
The height of this model is 1.75mm and the length is 10mm.
It supports input CCM (Continuous Conduction Mode) for operation.
This model includes latch enable and fast latch reset features for enhanced system protection.
The maximum duty cycle for this model is 50%.
It is suitable for industrial control systems, switched-mode power supplies, consumer electronics, and HVAC applications.
It utilizes 800V avalanche rugged CoolMOS™ technology for high reliability.
The minimum operating temperature for the Infineon ICE3AR2280CJZXKLA1 is -25°C.
