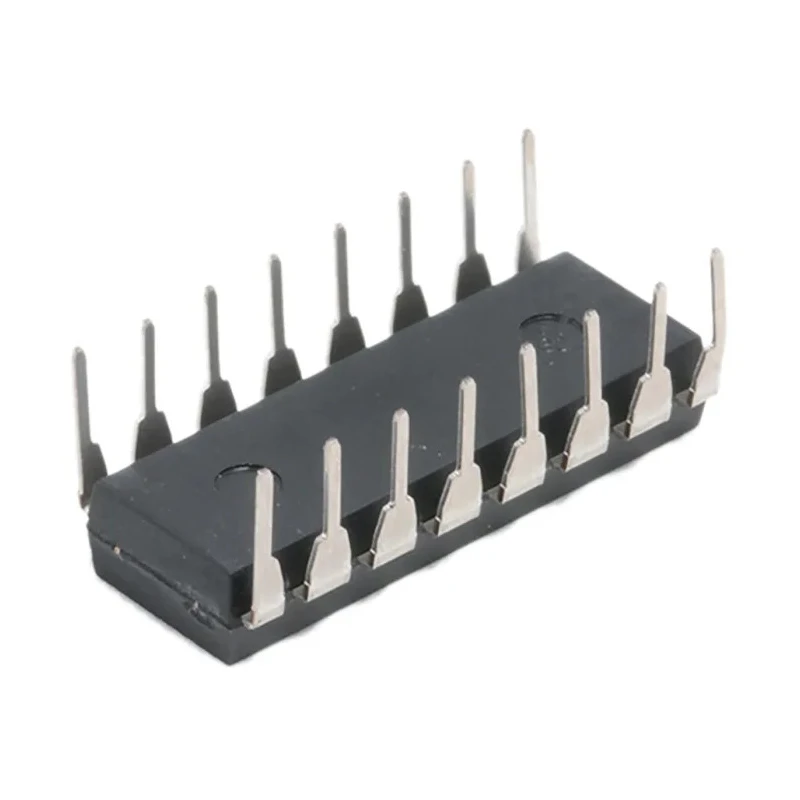

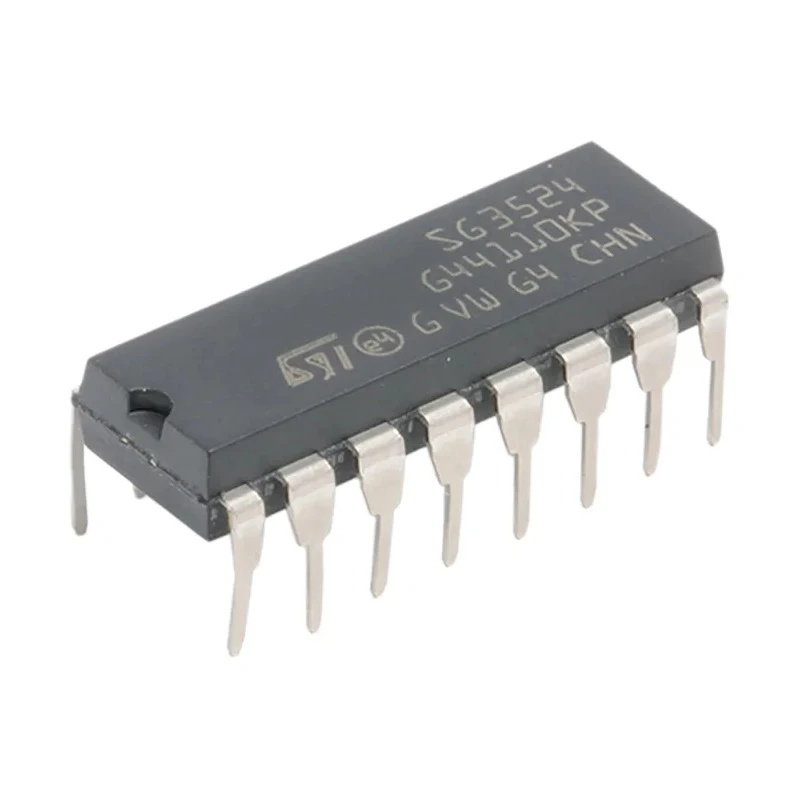

STMicroelectronics 16-Pin PDIP 2-Channel Voltage Mode PWM Controller 300 kHz 40V SG3524N

STMicroelectronics SG3524N is a 16-pin PDIP package Voltage Mode PWM Controller designed for efficient power regulation in switch mode power supplies. It supports two output channels with a maximum switching frequency of 300 kHz and a maximum supply voltage of 40V, making it ideal for both isolated and non-isolated AC-DC and DC-DC applications.

This controller uses a push-pull topology providing robust performance and supports a maximum duty cycle of 45%, enabling precise modulation of output power. The device has a low supply current of 8 mA combined with an output current capacity of 100 mA, ensuring energy efficiency and suitable output drive capabilities.

The SG3524N operates reliably within an industrial temperature range of 0°C to 70°C and conforms with RoHS standards for environmental compliance. Its 16-pin PDIP package allows easy integration in through-hole PCB designs, commonly used in industrial electronics, HVAC controls, manufacturing equipment, and power management systems.

The series integrates built-in protections enhancing robustness and reliability in power equipment, supporting applications in industrial, laboratory, and commercial power supply design. Its compact dimensions of 20 mm length, 7.1 mm width, and 5.1 mm height contribute to its adaptability in space-constrained systems.

This PWM controller is widely used in automotive electronics, switching regulators, motor control, and other power modulation systems where precise voltage and current regulation are required.

This PWM controller features a push-pull topology for efficient power management. It contains two output channels suitable for isolated and non-isolated switch mode power supplies. The device supports a maximum duty cycle of 45% allowing for precise control.

It has a supply current of 8 mA and output current capacity of 100 mA. The controller operates within a temperature range of 0°C to 70°C, suitable for industrial environments. The 16-pin PDIP package facilitates easy through-hole mounting on PCBs.

The SG3524 series integrates multiple protections for enhanced reliability in power supplies. The compact size with dimensions 20mm length, 7.1mm width, and 5.1mm height enables versatile applications. Explore our extensive range of Power Management ICs and Voltage Controllers at EnvMart for your industrial, HVAC, and manufacturing power control solutions.
