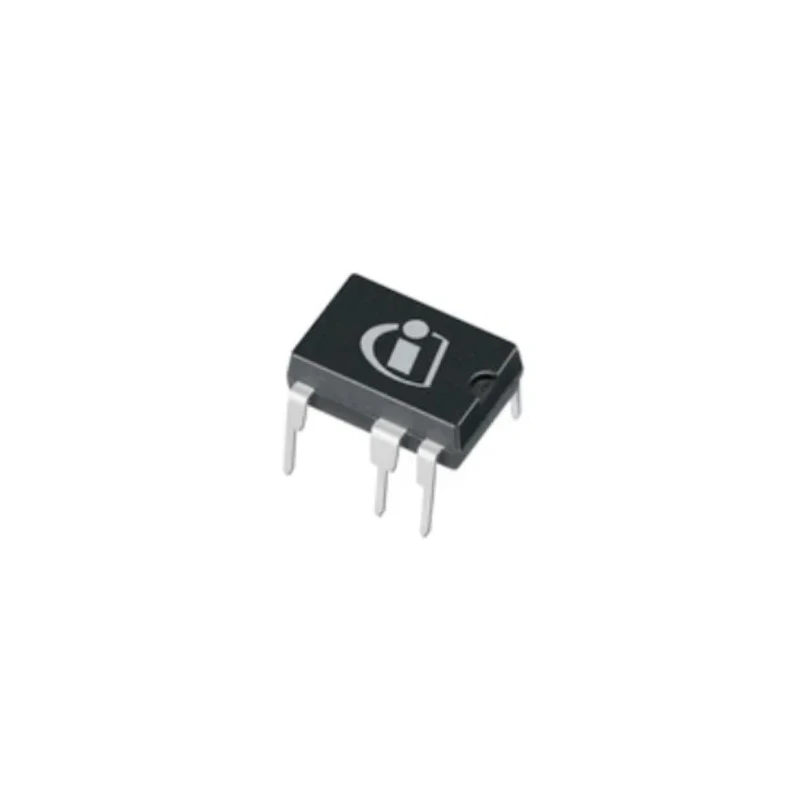

Infineon Quasi Resonant 5-Channel 7-Pin DIP AC/DC Converter ICE3AR2280JZXKLA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 1.75mm |
| Length | 10mm |
| Model | ICE3AR2280JZXKLA1 |
| Mount Type | Surface |
| Maximum Duty Cycle | 50% |
| Series | ICE2QR2280 |
| Maximum Operating Temperature | 130°C |
| Package Type | DIP |
| Sub Type | Quasi Resonant |
| Minimum Operating Temperature | -25°C |
| Switching Frequency | 100kHz |
| Maximum Input Voltage | 27V |
| Minimum Input Voltage | -0.3V |
| Pin Count | 7 |
Key Features
- Integrates 800V avalanche rugged CoolMOS™ technology for enhanced durability.
- Supports 24W SMPS design for efficient power supply solutions.
- Includes input brownout protection feature for reliable operation.
- Active burst mode operation minimizes standby power consumption.
- Adjustable blanking window facilitates smooth load transitions.
- High voltage startup cells enable rapid power-up from rectified line.
- Fixed switching frequency of 100kHz ensures stable performance.
- Compact DIP-7 package with 10mm length and 1.75mm height.
Product Description
Infineon ICE3AR2280JZXKLA1 is a Quasi Resonant 5-channel AC/DC converter housed in a compact 7-pin DIP package, tailored for high-efficiency power management applications. This integrated circuit incorporates an 800V avalanche rugged CoolMOS™ transistor, providing robust performance and reliability in switched-mode power supplies (SMPS) up to 24W.
Featuring a fixed switching frequency of 100kHz combined with frequency jittering, the device effectively reduces electromagnetic interference (EMI), enhancing compliance with regulatory standards and improving system stability. The integration of input brownout protection ensures continuous operation under unstable input voltage conditions, safeguarding connected components.
The ICE3AR2280JZXKLA1 offers an adjustable blanking window, facilitating load transitions without inducing undue stress on the power circuitry. Additionally, its enhanced active burst mode operation enables extremely low standby power consumption, making it ideal for energy-efficient devices.
This IC supports operation from -25°C to 130°C, suitable for diverse industrial environments, and features high voltage startup cells for rapid activation from the rectified line voltage. It is designed to function within a maximum input voltage of 27V and a maximum duty cycle of 50%.
Integrates 800V avalanche rugged CoolMOS™ for durability. Enables 24W switch mode power supply designs. Input brownout detection for reliable performance. Active burst mode reduces standby power consumption. Frequency jittering for EMI reduction.
Adjustable blanking window for load jump handling. 7-pin DIP package offers compact form factor. Operating temperature range from -25°C to 130°C. Fixed switching frequency of 100kHz. High voltage startup cells for quick power-up.
This product is well suited for industrial, consumer electronics, and power management applications requiring efficient and robust voltage control. Explore EnvMart’s range of power management ICs for complementary components in your design projects.
Explore more products in our Voltage Controller category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for this model is 27V.
It operates at a fixed switching frequency of 100kHz.
This unit can operate within a temperature range of -25°C to 130°C.
This model features a pin count of 7.
The ICE3AR2280JZXKLA1 is housed in a compact DIP package.
The maximum duty cycle for this model is 50%.
It includes input brownout protection and 800V avalanche rugged CoolMOS™ technology for enhanced durability.
The adjustable blanking window facilitates smooth load transitions, reducing stress on the power circuitry.
The minimum input voltage is -0.3V.
It is well suited for industrial, consumer electronics, and power management applications requiring efficient voltage control.
It features frequency jittering to effectively reduce electromagnetic interference (EMI).
The height is 1.75mm and the length is 10mm.
