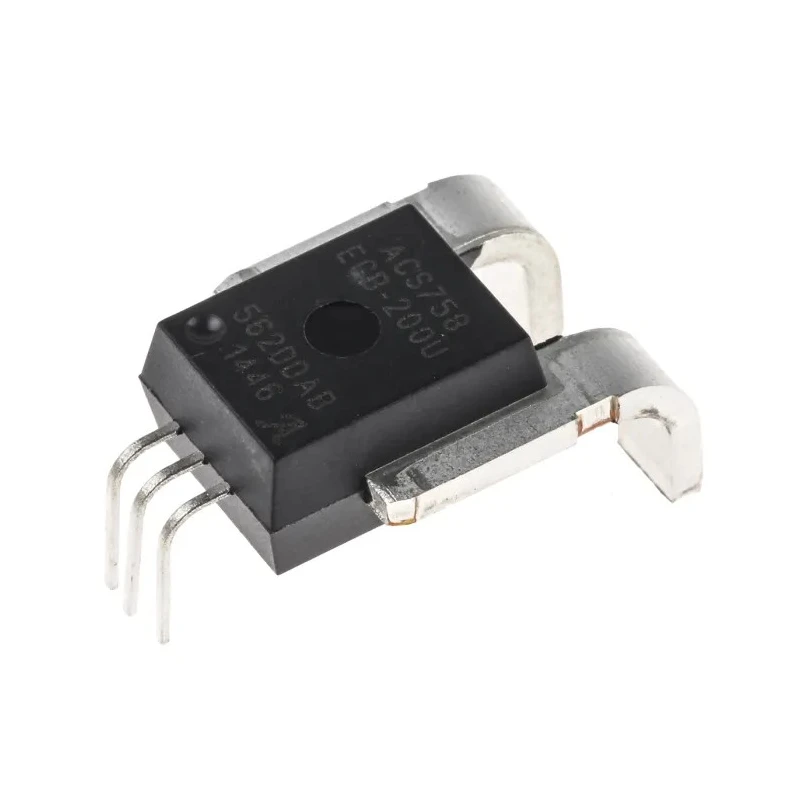

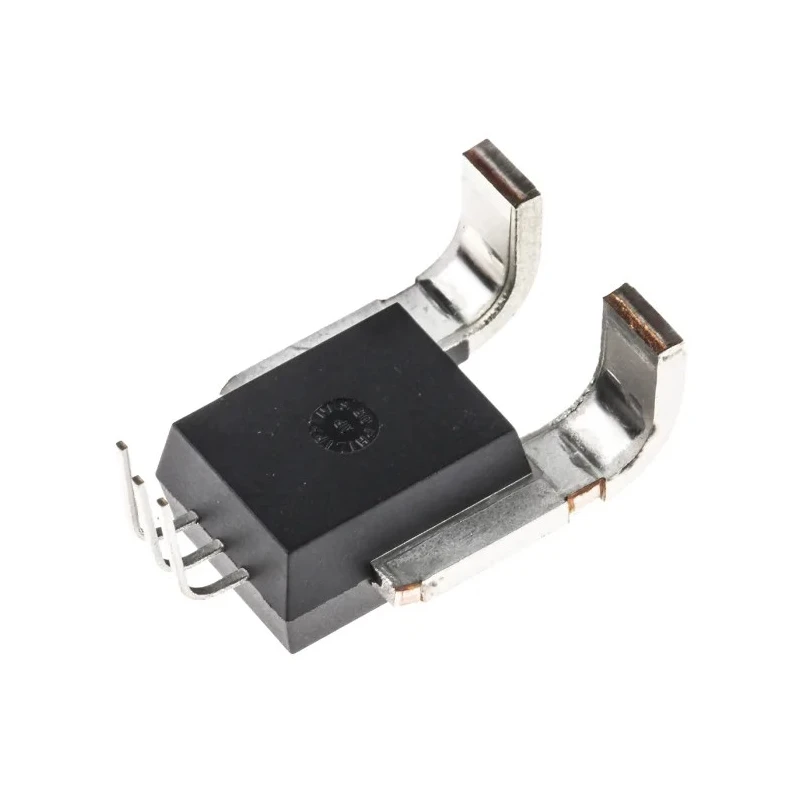

Allegro Microsystems 1 Axis Surface Hall Effect Sensor 3 V to 5.5 V Supply, CB Package, 5-Pin ACS758ECB-200U-PFF-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Allegro Microsystems |
| Response time | 4μs |
| Height | 7mm |
| Length | 10mm |
| Model | ACS758ECB-200U-PFF-T |
| SENSITIVITY | 60mV/A |
| Technology | BiCMOS Hall IC |
| Sensor Type | Hall Effect Sensors |
| Width | 13mm |
| Mount Type | Surface |
| Series | ACS758 |
| Maximum Operating Temperature | 85°C |
| Package Type | CB |
| Minimum Operating Temperature | -40°C |
| Number of axis | 1 |
| Standards/Approvals | TÜV America, UL Certified |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 724-8739PBrand: Allegro MicrosystemsManufacturers Part No.: ACS758ECB-200U-PFF-T |
| Pin Count | 5 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3V |
| Supply Current | 13.5mA |
| Magnetic Type | Linear |
| Maximum Frequency Response | 120kHz |
Key Features
- This Hall Effect sensor uses BiCMOS technology for high sensitivity and linear magnetic response.
- It supports a maximum frequency response of 120 kHz enabling fast detection.
- The package dimensions are 10 mm length, 13 mm width, and 7 mm height.
- Operating temperature ranges from -40°C to 85°C making it suitable for harsh environments.
- Supply current is low at 13.5 mA, optimized for automotive applications.
- It complies with automotive AEC-Q100 standard for quality and reliability.
- Certified by TÜV America and UL ensuring safety and quality compliance.
- Offers 4 microseconds response time for real-time current sensing.
Product Description
Allegro Microsystems ACS758ECB-200U-PFF-T is a high-performance 1 axis Hall Effect current sensor designed for surface mount applications. It operates at a supply voltage range from 3 V to 5.5 V, housed in a CB package with a compact footprint measuring 10 mm in length, 13 mm in width, and 7 mm in height. The sensor utilizes advanced BiCMOS Hall IC technology to deliver a linear magnetic output with a sensitivity of 60 mV/A.
Featuring a maximum frequency response of 120 kHz, the ACS758ECB-200U-PFF-T is capable of fast and accurate current detection with a response time of 4 microseconds. It is engineered to function reliably over an extended temperature range from -40°C to 85°C, meeting automotive-grade standards including AEC-Q100 qualification for durability in demanding environments.
With a low supply current of 13.5 mA, this sensor is optimized for power efficiency while providing 3000 Vrms galvanic isolation to ensure safety in electrical systems. The sensor is TÜV America and UL certified, meeting rigorous safety and quality standards.
This Hall Effect sensor is ideal for industrial, automotive, manufacturing, HVAC, and power management applications that require precise current sensing and isolation. Its surface mount design facilitates easy PCB integration for compact electronic systems.
This Hall Effect sensor uses BiCMOS technology for high sensitivity and linear magnetic response. It supports a maximum frequency response of 120 kHz enabling fast detection. The package dimensions are 10 mm length, 13 mm width, and 7 mm height.
Operating temperature ranges from -40°C to 85°C making it suitable for harsh environments. Supply current is low at 13.5 mA, optimized for automotive applications. It complies with automotive AEC-Q100 standard for quality and reliability.
Certified by TÜV America and UL ensuring safety and quality compliance. Offers 4 microseconds response time for real-time current sensing. Sensitivity is 60 mV/A allowing precise current measurements. The sensor includes galvanic isolation with 3000 Vrms rating.
Discover more from Allegro Microsystems and explore our range of motion and current sensor ICs at EnvMart, your trusted electronic components marketplace.
Explore more products in our Hall Effect Sensors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The sensor operates within a supply voltage range of 3 V to 5.5 V.
It supports a maximum frequency response of 120 kHz, allowing for fast detection capabilities.
The sensitivity of this model is 60 mV/A, enabling precise current measurements.
The package dimensions are 10 mm in length, 13 mm in width, and 7 mm in height.
It has a response time of 4 microseconds, suitable for real-time current sensing applications.
The sensor operates effectively within a temperature range of -40°C to 85°C.
It is certified by TÜV America and UL, ensuring compliance with safety and quality standards.
The supply current is low at 13.5 mA, optimized for automotive applications.
This model is a 1 axis sensor, designed for single-axis current sensing.
It utilizes BiCMOS Hall IC technology for high sensitivity and linear magnetic response.
This sensor features a surface mount design, facilitating easy integration into PCB layouts.
It complies with the AEC-Q100 standard, ensuring quality and reliability for automotive applications.
