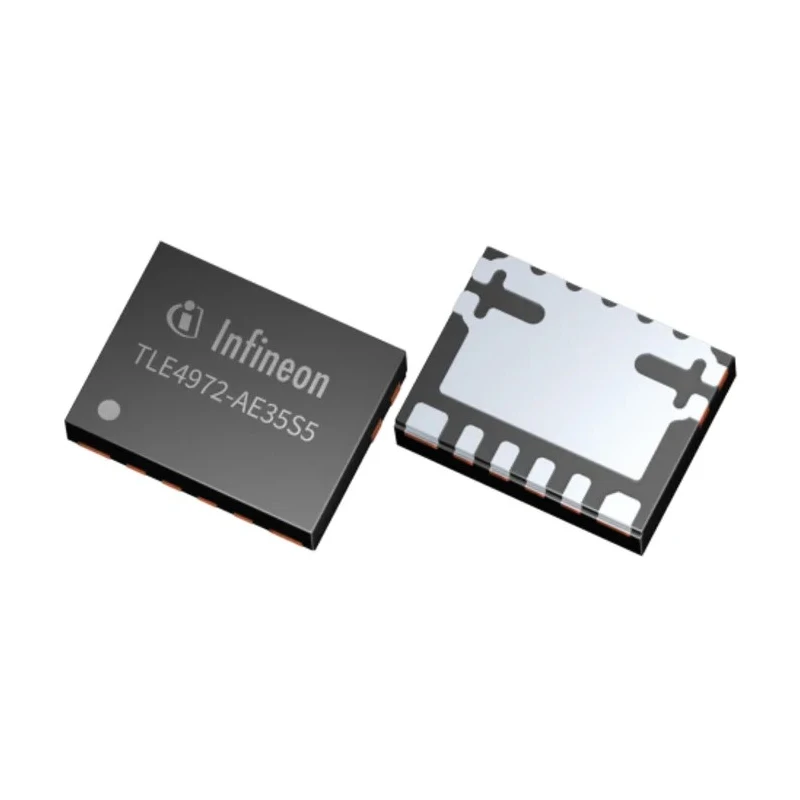

Infineon Current Sensor IC 7-Pin Surface Mount PG-VSON-6 Package, Offset Voltage 1.65 V, Bandwidth TLE4972AE35S5XUMA1

Infineon TLE4972AE35S5XUMA1 Current Sensor IC is a high precision device designed for demanding automotive applications requiring accurate AC and DC current measurement. Packaged in a compact 7-pin PG-VSON-6 surface mount form factor with dimensions of 4.5 x 3.5 x 0.9 mm, this sensor achieves excellent performance through coreless Hall technology that eliminates negative effects typical of open-loop sensors.

The device features an offset voltage of 1.65 V and operates reliably within a supply voltage range of 3.1 V to 3.5 V while supporting a bandwidth of 48.2 kHz for detecting dynamic current changes. Compliance with rigorous automotive standards such as AEC-Q100 and ISO 26262 demonstrates its reliability in harsh environments including extreme temperatures from -40°C up to 160°C.

Infineon's integrated self-diagnostic functions add an extra layer of safety by continuously monitoring sensor operation, making it well-suited for integration in critical systems like battery switches, on-board chargers, and powertrain control units. Its fast response and minimal phase delay enable accurate real-time current measurement for overload detection and power supply monitoring in high-voltage automotive systems.

The sensor supports multiple configurable output modes including fully differential, semi-differential, and single-ended outputs, providing versatile interfacing options to match various signal conditioning needs.

Key industrial applications include monitoring electrical drives, ensuring electrical safety, and enhancing reliability in automotive power electronics. High accuracy for AC and DC current measurements enabling robust monitoring.

Compact coreless design measuring 4.5 x 3.5 x 0.9 mm for space-efficient integration. Supports wide operating voltage range from 3.1 V to 3.5 V. Complies with automotive standards including AEC-Q100 and ISO 26262 for enhanced safety.

Integrated self-diagnostics improve operational safety and fault detection. Fast response time with minimal phase delay for real-time current monitoring. Robust magnetic stray field suppression ensures accurate sensing in noisy environments.

Operating temperature range from -40°C to 160°C suitable for harsh automotive conditions. Configurable output modes including differential and single-ended outputs to suit diverse applications. Explore more from Infineon and our extensive range of automotive-grade sensor ICs at EnvMart for your industrial, automotive, and power electronics requirements.
