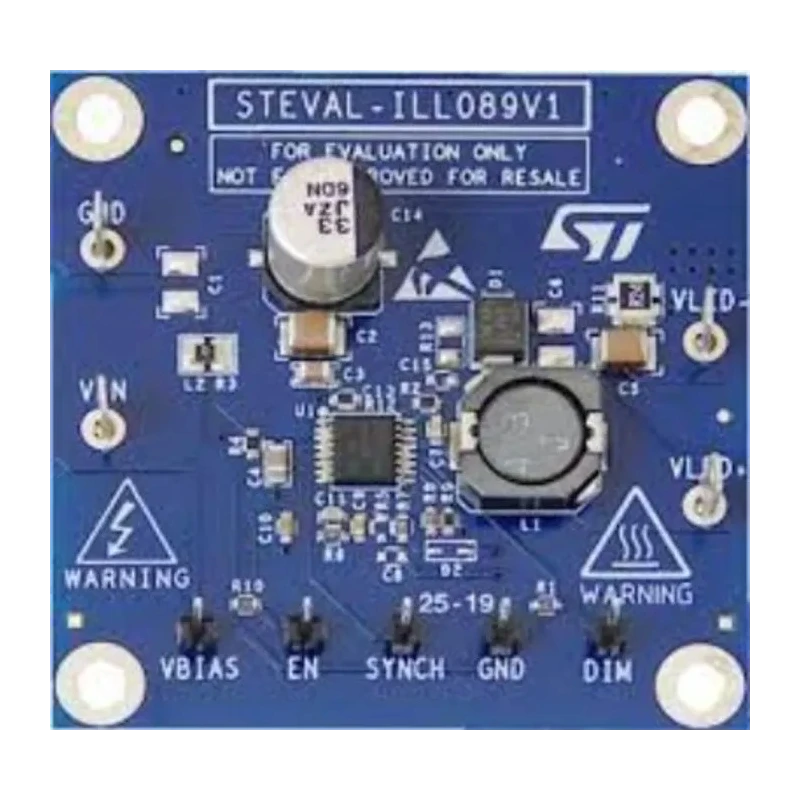

STMicroelectronics 1 A Buck Automotive Grade Dimmable LED Driver Board Evaluation Kit STEVAL-ILL089V1
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Model | STEVAL-ILL089V1 |
| For Use With | LED |
| Standards/Approvals | RoHS and WEEE |
| Kit Classification | Evaluation Board |
| Featured Device | ALED6000 |
| Kit Name | 1 A Buck LED Driver Board Based on the ALED6000 Automotive Grade Dimmable |
| LED Technology | LED Driver |
Key Features
- The board supports step-down conversion with a 1 A programmed LED current.
- Digital dimming is enabled via a dedicated DIM pin.
- Operating frequency is 500 kHz for efficient switching.
- Low dropout operation allows nearly 100% duty cycle for maximum efficiency.
- Includes auto recovery features for overcurrent and thermal protection.
- Compatible with ceramic output capacitors for stable operation.
- 180° out of phase synchronization is available for multi-board setups.
- Designed to maximize power conversion efficiency across load ranges with pulse skipping light load management.
Product Description
STMicroelectronics STEVAL-ILL089V1 is a 1 A Buck LED Driver Board Evaluation Kit designed for automotive and industrial lighting applications. It integrates the ALED6000 monolithic current source, supporting digital dimming control via the DIM pin, which enables precise brightness adjustment.
The device operates as a 61 V asynchronous switching regulator with an embedded Power MOSFET, capable of sourcing up to 3 A DC current based on application conditions. It delivers low dropout operation allowing near 100% duty cycle, ideal for high-efficiency LED driving.
This evaluation board features a 500 kHz switching frequency operating frequency ensuring efficient energy conversion and supporting ceramic output capacitors, enhancing reliability and performance. The 180° out-of-phase synchronization option enables reduced electromagnetic interference in multi-board configurations.
Protection features include automatic recovery from overcurrent and thermal overload, enhancing device robustness for automotive and industrial environments. The embedded switchover on the VBIAS pin and pulse skipping light load management improve efficiency across a wide range of operating conditions.
The board supports step-down conversion with a 1 A programmed LED current. Digital dimming through a dedicated DIM pin. 500 kHz switching frequency for efficient operation. Near 100% duty cycle low dropout operation. Auto recovery for overcurrent and thermal protection ensures reliability.
Supports ceramic output capacitors for stable performance. 180° out of phase synchronization available. Pulse skipping management maximizes power efficiency under light load.
This evaluation board is ideal for industrial, automotive automotive lighting system development, prototyping, and testing purposes. It helps developers validate LED Driver performance and integrate automotive grade dimmable LED driving functionality in advanced lighting solutions.
Explore the full range of STMicroelectronics LED products and evaluation kits on EnvMart to support your development needs.
