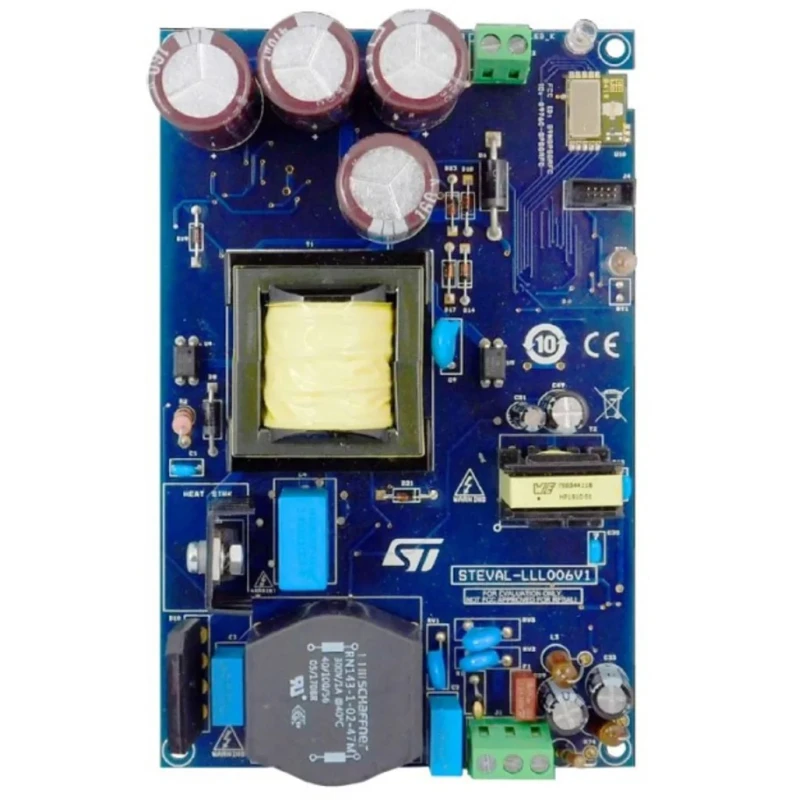

STMicroelectronics Smart LED Driver Evaluation Kit, Outdoor Street Lighting, 90-300VAC to 60-110VDC, STEVAL-LLL006V1

The STMicroelectronics STEVAL-LLL006V1 is a smart LED driver evaluation kit specifically designed to support the development of efficient, high-power LED lighting applications, with a focus on outdoor street lighting. This evaluation board allows users to explore advanced LED driver functions, efficient power management, and wireless connectivity for modern lighting systems.

Capable of converting a broad 90 - 300 VAC input into a regulated 60 - 110 VDC constant current output, the kit enables the use of high power LEDs in a variety of environments and geographies. The design integrates the HVLED001A LED lighting controller, which supports multiple operating modes to achieve high power factor, low total harmonic distortion, and efficient switching. The inclusion of the STP21N90K5 Power MOSFET further enhances energy conversion efficiency and thermal reliability.

The onboard STM32L071KZ microcontroller, paired with the SPSGRFC sub-1 GHz transceiver module, provides advanced wireless control capabilities. This feature enables remote on/off switching and dimming, making it well suited for intelligent lighting networks and urban infrastructure projects. Additionally, a data concentrator unit (DCU) and a companion Android application extend system control options, facilitating the evaluation of IoT-ready lighting setups.

The STEVAL-LLL006V1 includes built-in protections such as overvoltage, overcurrent, and overtemperature sensing to safeguard critical components during operation, ensuring dependable performance in demanding outdoor environments. Its RoHS compliance reaffirms adherence to global safety and environmental standards.

Primary use cases for this evaluation kit include testing and deploying high power outdoor LED lighting solutions, developing smart street lights, and prototyping advanced lighting control schemes for industrial, commercial, or municipal applications. It is particularly valuable for researchers, engineers, and developers working in energy-efficient or connected lighting ecosystems.

With comprehensive power management, intelligent wireless operation, and robust protection features, the STMicroelectronics STEVAL-LLL006V1 provides a reliable foundation for next-generation, smart outdoor lighting innovations.

Supports input voltage range from 90 VAC to 300 VAC. Delivers regulated 60 - 110 VDC output in constant current mode for high power LEDs. Includes advanced controllers and high-efficiency power switching devices. Enables wireless connectivity for remote operation and integrated control.
