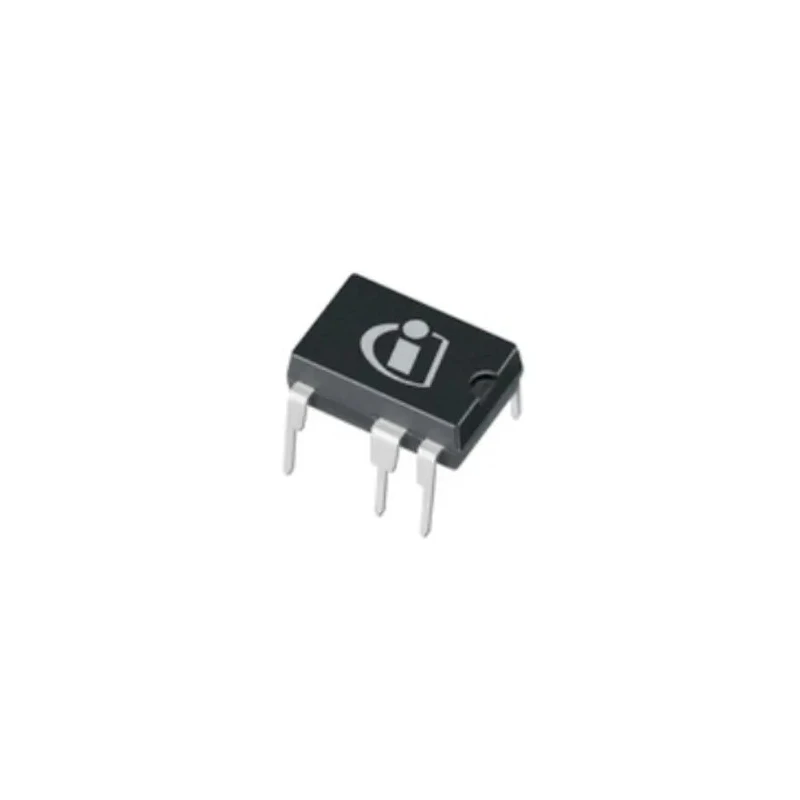

Infineon Fixed Frequency COOLSET 5-Channel 7-Pin Through Hole DIP Package Voltage Controller ICE3RBR0665JZXKLA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 7.5mm |
| Length | 9.77mm |
| Model | ICE3RBR0665JZXKLA1 |
| Mount Type | Through Hole |
| Maximum Duty Cycle | 75% |
| Series | ICE3RBR0665JZ |
| Maximum Operating Temperature | 130°C |
| Package Type | DIP |
| Sub Type | Fixed Frequency COOLSET |
| Minimum Operating Temperature | -40°C |
| Switching Frequency | 100kHz |
| Maximum Input Voltage | 27V |
| Minimum Input Voltage | -0.3V |
| Pin Count | 7 |
Key Features
- The device features an integrated 650V CoolMOS™ and start-up cell in a compact DIP-7 package.
- Operates with a switching frequency of 100kHz ensuring precise power conversion.
- Designed to function reliably in extreme temperatures ranging from -40°C to 130°C.
- Maximum input voltage rated at 27V supports a broad range of DC input conditions.
- Provides advanced protection features including soft start, frequency jitter, and overload protection with extendable blanking time.
- Pin count of 7 pins allows for straightforward through-hole mounting.
- Maximum duty cycle of 75% optimizes energy efficiency during operation.
- Robust BiCMOS technology enhances device durability and performance.
Product Description
Infineon ICE3RBR0665JZXKLA1 is a fixed frequency COOLSET voltage controller designed with integrated 650V CoolMOS™ and start-up circuitry, housed in a Through Hole DIP-7 package. The device targets AC/DC converter applications requiring efficient and reliable power management.
This 5-channel controller delivers a switching frequency of 100kHz and supports an input voltage up to 27V. Its thermal operating limits extend from -40°C to 130°C, making it suitable for harsh industrial environments.
The controller incorporates advanced BiCMOS technology, offering high robustness and lower standby power consumption. Features such as active burst mode, built-in frequency jitter, soft gate driving, and propagation delay compensation improve performance and noise tolerance.
Overload protection is enhanced by extendable blanking time and an external auto-restart enable feature, contributing to system reliability. The maximum duty cycle of 75% allows effective energy usage during switching operations.
Typical use cases for the ICE3RBR0665JZXKLA1 include power supply regulation in industrial equipment, HVAC systems, and general electronic component power management in laboratories and manufacturing environments.
The device features an integrated 650V CoolMOS™ and start-up circuitry in DIP-7 package. Operates at a 100kHz fixed switching frequency for efficient power control. Wide operating temperature range from -40°C to 130°C ensures versatile application.
Designed with BiCMOS technology for enhanced robustness and performance. Includes protection features such as soft start, frequency jitter, and overload blanking. Maximum input voltage of 27V supports various power supply designs.
75% maximum duty cycle optimizes power efficiency. Compact DIP package allows easy through-hole mounting. Perfect for industrial, laboratory, and HVAC power management applications. Explore more Voltage Controllers and power management ICs in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for the ICE3RBR0665JZXKLA1 is rated at 27V, which supports a broad range of DC input conditions.
The ICE3RBR0665JZXKLA1 features a pin count of 7 pins, allowing for straightforward through-hole mounting.
It includes advanced protection features such as soft start, frequency jitter, and overload protection with extendable blanking time.
The maximum duty cycle is 75%, which optimizes energy efficiency during operation.
This model is housed in a compact DIP-7 package, suitable for through-hole mounting applications.
It is designed with advanced BiCMOS technology, which enhances durability and performance.
Typical use cases include power supply regulation in industrial equipment, HVAC systems, and general electronic component power management in laboratories and manufacturing environments.
The dimensions are 7.5mm in height and 9.77mm in length, making it compact for various applications.
The minimum input voltage is -0.3V, allowing for a wide range of operational conditions.
The country of origin for this voltage controller is India.
