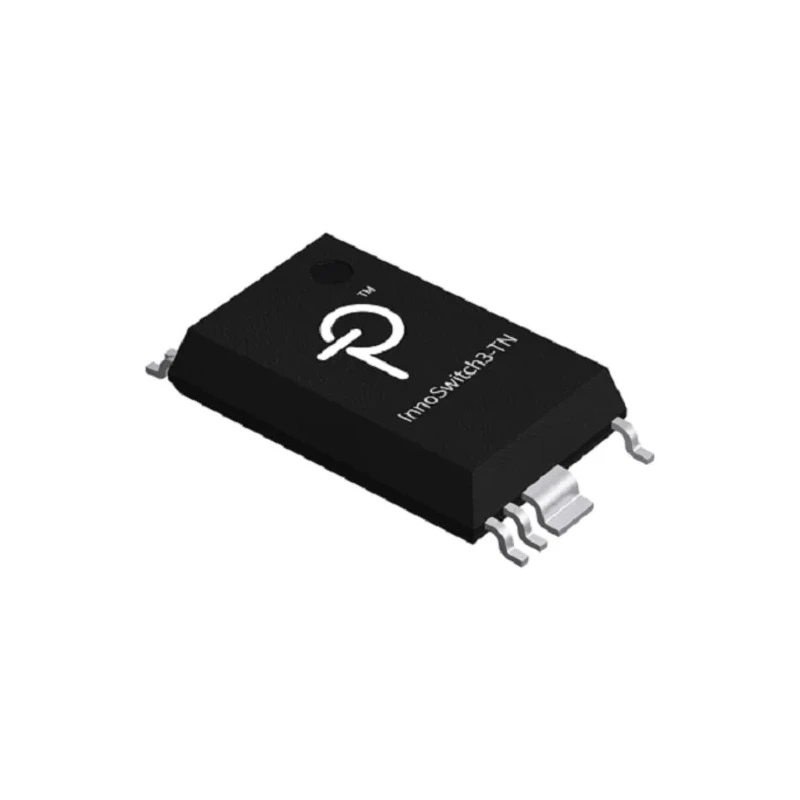

Power Integrations AC/DC Converter 3A 5V 16-Pin MinSOP INN3073M-H606-TL

Power Integrations INN3073M-H606-TL is an advanced AC/DC Converter IC designed for high efficiency off-line flyback switcher applications. This integrated circuit significantly improves power supply efficiency, making it ideal for auxiliary power supplies in appliances, consumer electronic products, and industrial equipment.

With a maximum output current of 3A and a fixed 5V output voltage, the device delivers a maximum output power of 12W. The IC features a compact 16-pin MinSOP surface mount package, measuring 9mm in length and 1.94mm in height, which helps minimize PCB footprint.

The converter operates over a wide AC input voltage range from 85V to 265V and supports flyback topology design, providing efficient isolation in both isolated and non-isolated power supply solutions. It delivers up to 90% efficiency under full load conditions while maintaining a flat efficiency curve over the load range and extremely low power consumption in no-load state, enhancing overall energy savings.

The device supports advanced functions such as integrated output over-voltage protection (OVP) and open-gate detection optimized for synchronous rectification MOSFET applications. It is engineered to operate reliably over a broad temperature range from -40°C to 150°C, suiting industrial and commercial environments.

This converter complies with major global safety and electromagnetic compatibility standards, including TUV EN62368-1, CQC GB4943.1, UL1577, EN61000-4 series susceptibility tests, and VDE 0884-17 EN60747-17 standards, making it suitable for diverse international markets.

Power Integrations INN3073M-H606-TL is a versatile and highly efficient solution for designers requiring compact, reliable, and energy-saving AC/DC conversion in complex industrial, commercial, and appliance applications.

Designed for auxiliary power supplies in appliances, consumer products, and industrial use. Offers up to 90% efficiency at full load with low no-load power consumption. Operates within an input voltage range of 85V to 265V AC.

Compact 9mm length and 1.94mm height MinSOP package to reduce PCB area. Supports flyback topology with output power rating of 12W. Wide operating temperature range from -40°C to 150°C. Complies with TUV (EN62368-1), CQC (GB4943.1), UL1577, and other international standards.
