Power Integrations 600 V 12 A Silicon Diode 3-Pin TO-220AC QH12TZ600

Free Delivery in India | Lowest Global Shipping Charges

Power Integrations 600 V 12 A Silicon Diode 3-Pin TO-220AC QH12TZ600

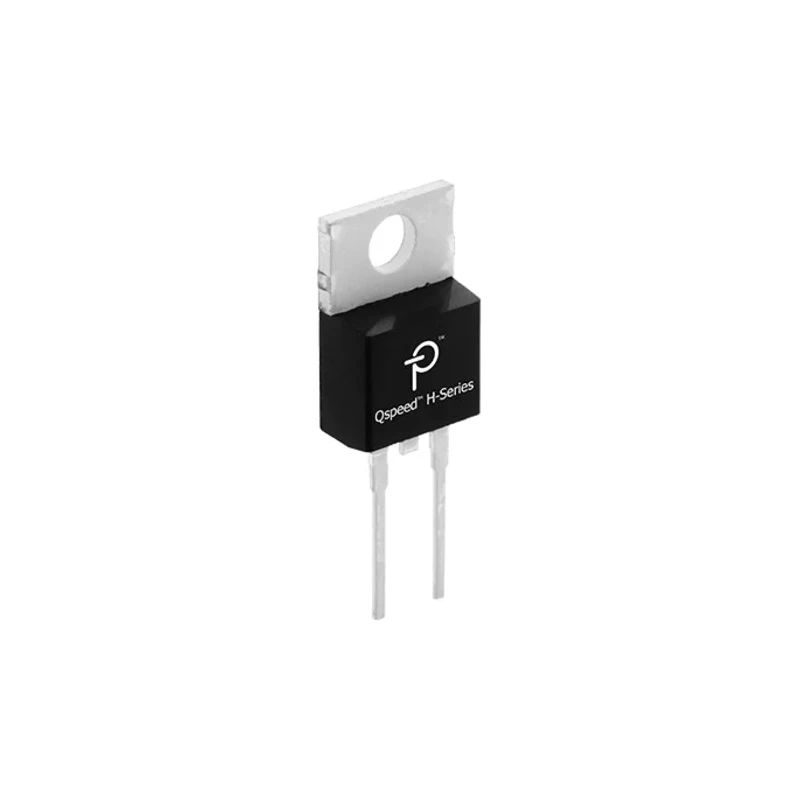

Name: Power Integrations 600 V 12 A Silicon Diode 3-Pin TO-220AC QH12TZ600
Brand: Power Integrations
SKU: 171224
Price: 2.45 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand Power Integrations Condition New

Specifications

Country of Origin	India
Brand	Power Integrations
Height	4.7mm
Length	10.67mm
Model	QH12TZ600
Width	9.25mm
Mount Type	Surface
Series	QH12TZ600
Package Type	TO-220AC
Standards/Approvals	RoHS
Pin Count	3
Maximum Continuous Forward Current If	12A
Peak Reverse Repetitive Voltage Vrrm	600V
Diode Configuration	Single
Rectifier Type	Silicon
Peak Reverse Current Ir	250μA
Peak Non-Repetitive Forward Surge Current Ifsm	350A
Maximum Forward Voltage Vf	3.1V
Peak Reverse Recovery Time trr	11.6ns

Key Features

Mount type is surface for easy PCB integration.
Single diode configuration with silicon rectifier type.
Maximum continuous forward current of 12 amperes.
Peak reverse repetitive voltage rated at 600 volts.
Maximum forward voltage of 3.1 volts ensuring low power loss.
Fast switching with peak reverse recovery time of 11.6 nanoseconds.
High surge current capability with 350 amperes peak forward surge current.
Compact dimensions suitable for space-constrained applications.

Product Description

Power Integrations QH12TZ600 is a high-performance silicon Schottky diode designed for efficient power rectification in electronic circuits. Featuring a 3-pin TO-220AC package with surface mount configuration, it is ideal for motor driver circuits, DC-AC converters, and power factor correction applications requiring robust and reliable diodes.

This diode supports a maximum continuous forward current of 12 A and peak reverse repetitive voltage of 600 V, enabling it to handle significant electrical loads without compromising performance. The maximum forward voltage of 3.1 V ensures low forward voltage drop, improving energy efficiency.

Designed for rapid switching, the device has a peak reverse recovery time of 11.6 ns, contributing to minimal switching losses. It can withstand peak non-repetitive forward surge currents up to 350 A, providing protection against transient spikes.

With compact dimensions (length 10.67 mm, width 9.25 mm, and height 4.7 mm), the QH12TZ600 diode is suitable for integration into constrained spaces. Its single diode configuration and silicon rectifier construction contribute to reliable and stable operation in various power electronics applications.

The diode complies with RoHS standards, ensuring it meets environmental and manufacturing requirements. It is not certified for automotive applications but is well-suited for industrial, laboratory, manufacturing, and electronics design uses.

Mount type is surface for easy PCB integration. Single diode configuration with silicon rectifier type. 12 A maximum continuous forward current. 600 V peak reverse repetitive voltage. 3.1 V maximum forward voltage. Peak reverse recovery time of 11.6 ns.

350 A peak forward surge current capability. Compact dimensions for versatile use. Compliant with RoHS environmental standards. Explore Power Integrations products and Schottky Diodes & Rectifiers on EnvMart for comprehensive semiconductor solutions.

Explore more products in our Schottky Diodes & Rectifiers category.
