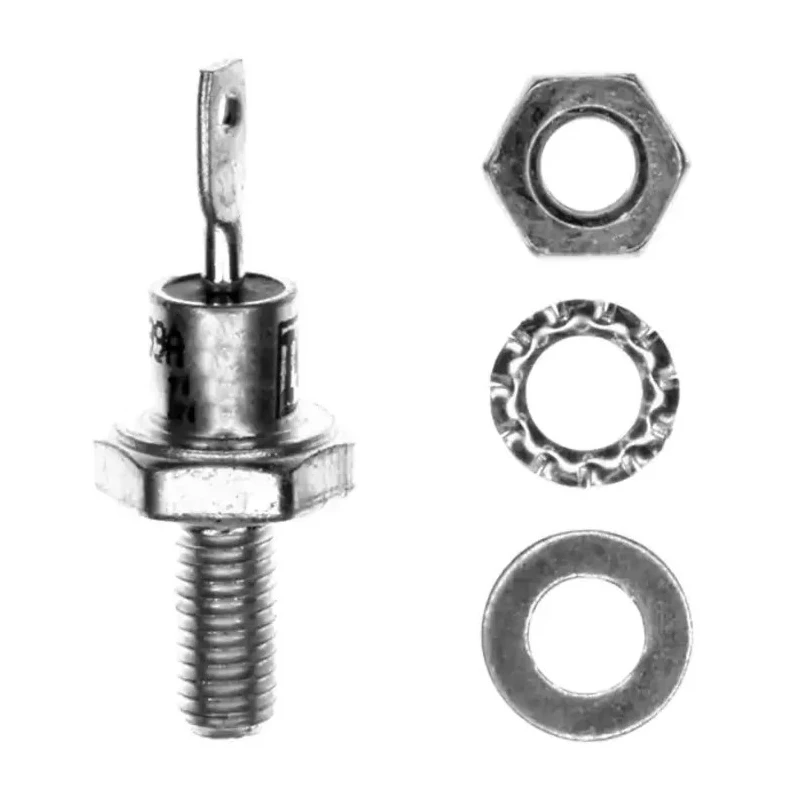

Vishay Recovery Diode 1200V 25A 2-Pin DO-4 Screw Mount VS-25FR120M
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 11mm |
| Brand | Vishay |
| Height | 31.8mm |
| Length | 12.69mm |
| Model | VS-25FR120M |
| Width | 11mm |
| Mount Type | Screw |
| Series | VS-25F |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-4 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 25A |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Diode Configuration | Stud Anode |
| Rectifier Type | Recovery |
| Peak Reverse Current Ir | 12mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 373A |
| Maximum Forward Voltage Vf | 1.3V |
| Diode, Rectifier, SW12PCR030Brand | Westcode Semiconductors |
| Vishay 1200 V 25 A Diode Switching 2-Pin DO-203AABrand | Vishay |
Key Features
- Designed for high surge current capability in industrial applications.
- Maximum continuous forward current of 25A ensures reliable performance.
- Peak reverse repetitive voltage rated up to 1200V.
- Stud anode configuration with screw mount for secure installation.
- DO-4 package for compatibility with various electronic assemblies.
- Surge capability of up to 373A for demanding operational conditions.
- Two-pin design suitable for rectifier circuits and recovery functions.
- RoHS compliant for environmental and safety standards.
Product Description
Vishay VS-25FR120M Recovery Diode combines high surge current capacity and robust construction to meet the demanding requirements of industrial and power electronics applications. This diode offers a peak reverse repetitive voltage of 1200V and maximum continuous forward current of 25A, making it ideal for rectification tasks in power supply systems, motor drives, and other energy conversion circuits.
With its screw mount and stud anode configuration, installation is secure and highly conductive. The DO-4 package provides thermal efficiency and compatibility, while its two-pin design simplifies integration into discrete semiconductor assemblies.
Designed for high surge current capability in industrial applications. Maximum continuous forward current of 25A ensures reliable performance. Peak reverse repetitive voltage rated up to 1200V. Stud anode configuration with screw mount for secure installation.
DO-4 package for compatibility with various electronic assemblies. Surge capability of up to 373A for demanding operational conditions. Two-pin design suitable for rectifier circuits and recovery functions. RoHS compliant for environmental and safety standards.
This diode's minimised forward voltage (1.3V) reduces power losses, while its wide operating temperature range from -65°C to 175°C ensures stability in harsh environments. Peak reverse current is limited to 12mA, further improving efficiency and reliability. Dimensions are compact - length 12.69mm, diameter 11mm, height 31.8mm - for easy integration in control panels and PCB layouts.
Typical industrial applications include power rectifiers, battery chargers, motor drive circuits, UPS systems, and renewable energy inverters, especially where fast recovery and surge capability are required.
Browse more Vishay diodes and rectifiers in the Schottky Diodes & Rectifiers category on EnvMart for reliable semiconductor solutions in electronics, automotive, and heavy industrial sectors.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the VS-25FR120M recovery diode is 25A.
This model has a peak reverse repetitive voltage rating of 1200V.
The diode can handle a peak non-repetitive forward surge current of up to 373A.
It comes in a DO-4 package type, which allows for compatibility with various electronic assemblies.
The dimensions of the diode are as follows: length 12.69mm, diameter 11mm, and height 31.8mm.
The operating temperature range for the VS-25FR120M is from -65°C to 175°C.
It uses a screw mount configuration for secure installation.
The maximum forward voltage drop is 1.3V, which helps reduce power losses.
The peak reverse current is limited to 12mA.
Yes, the VS-25FR120M is RoHS compliant, meeting environmental and safety standards.
This recovery diode features a stud anode configuration.
It is suitable for applications such as power rectifiers, battery chargers, motor drive circuits, and UPS systems.
