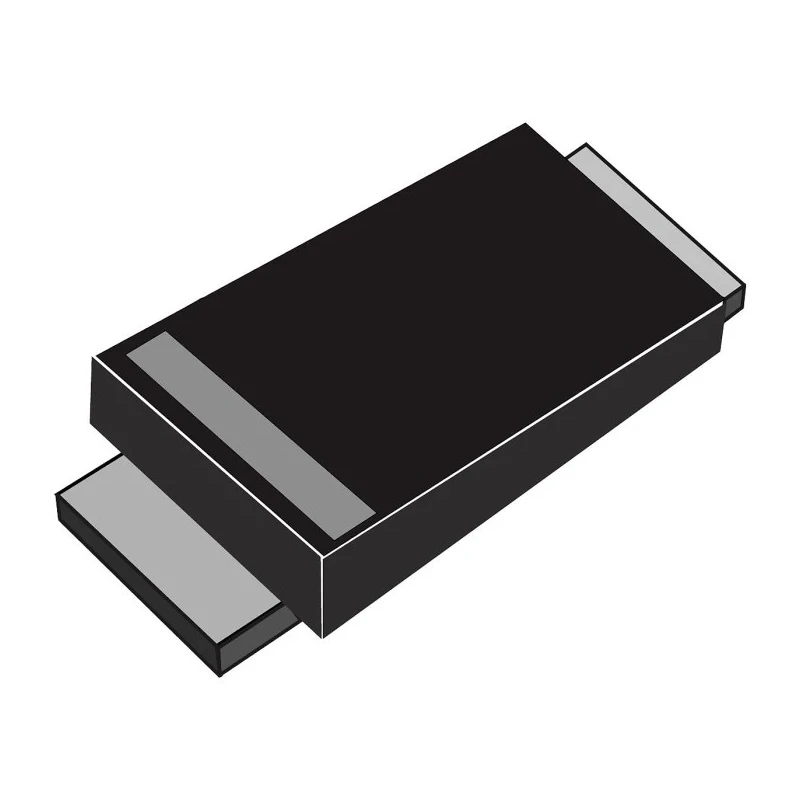

STMicroelectronics General Purpose Diode 200 V 3 A SOD-128 2-Pin STTH3R02AFY
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.03mm |
| Length | 3.9mm |
| Model | STTH3R02AFY |
| Width | 2.5mm |
| Mount Type | Surface |
| Series | STTH3 |
| Maximum Operating Temperature | 175°C |
| Package Type | SOD-128 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 16mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 80A |
| Maximum Forward Voltage Vf | 1.02V |
| Peak Reverse Recovery Time trr | 24ns |
Key Features
- Offers wide peak reverse repetitive voltage of 200 V for diverse electronic applications.
- Maximum continuous forward current rated at 3 A for reliable circuit performance.
- Surface mount SOD-128 package, convenient for PCB integration.
- Fast peak reverse recovery time of 24 ns supports high-speed designs.
- Maximum operating temperature up to 175°C ensures robust thermal endurance.
- Automotive AEC-Q101 standard guarantees enhanced reliability in automotive and industrial environments.
- Low maximum forward voltage of 1.02 V reduces power loss.
Product Description
STMicroelectronics STTH3R02AFY General Purpose Diode is engineered for dependable performance in electronic, industrial, and automotive circuits. This single configuration diode features a surface mount SOD-128 package, offering a peak reverse repetitive voltage of 200 V and a maximum continuous forward current of 3 A. It is designed for applications requiring robust rectification and fast switching capability.
Offers wide voltage range, supporting up to 200 V reverse repetitive voltage for versatile use in both low and high voltage circuit protection and rectification. Handles continuous forward current up to 3 A efficiently, suitable for power management and signal rectification in consumer, industrial, and automotive electronics.
SOD-128 surface mount package ensures easy integration in compact PCB designs and automated assembly processes. Peak reverse recovery time as fast as 24 ns enables high-speed switching and efficiency in inverter and power conversion applications.
Operates reliably over -40°C to 175°C temperature range, rendering the diode exceptionally durable under harsh industrial or automotive environments. AEC-Q101 compliance confirms suitability for automotive systems and demanding electronic applications.
Additional features include a low maximum forward voltage of 1.02 V, minimized power dissipation, a compact 2-pin package, and surge current handling up to 80 A. These characteristics make the STTH3R02AFY ideal for circuit protection, power supplies, and DC to DC conversion within electronics manufacturing, laboratories, and industrial settings.
Typical applications extend across power rectifiers, motor drives, automotive ECUs, telecom infrastructure, and specialized electronics demanding high reliability.
Explore more Schottky Diodes, Rectifiers, and semiconductor solutions from STMicroelectronics on EnvMart for a comprehensive range of electronic components supporting industrial and advanced electronics sectors.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum peak reverse repetitive voltage of this diode is 200 V, making it suitable for various electronic applications.
The STTH3R02AFY can handle a maximum continuous forward current of 3 A, ensuring reliable circuit performance.
This diode is housed in a surface mount SOD-128 package, which facilitates easy integration into PCB designs.
The peak reverse recovery time is 24 ns, allowing for high-speed switching applications.
This model operates reliably within a temperature range of -40°C to 175°C, suitable for harsh environments.
The maximum forward voltage drop is 1.02 V, which helps to minimize power loss during operation.
This diode complies with the AEC-Q101 automotive standard, ensuring enhanced reliability for automotive applications.
The dimensions of this diode are 3.9 mm in length, 2.5 mm in width, and 1.03 mm in height.
The diode has a peak non-repetitive forward surge current rating of 80 A, accommodating brief surge conditions.
This diode is typically used in power rectifiers, motor drives, automotive ECUs, and telecom infrastructure.
This model features a 2-pin configuration, suitable for various electronic circuit designs.
The STTH3R02AFY is classified as a general-purpose rectifier, designed for versatile use in electronic circuits.
