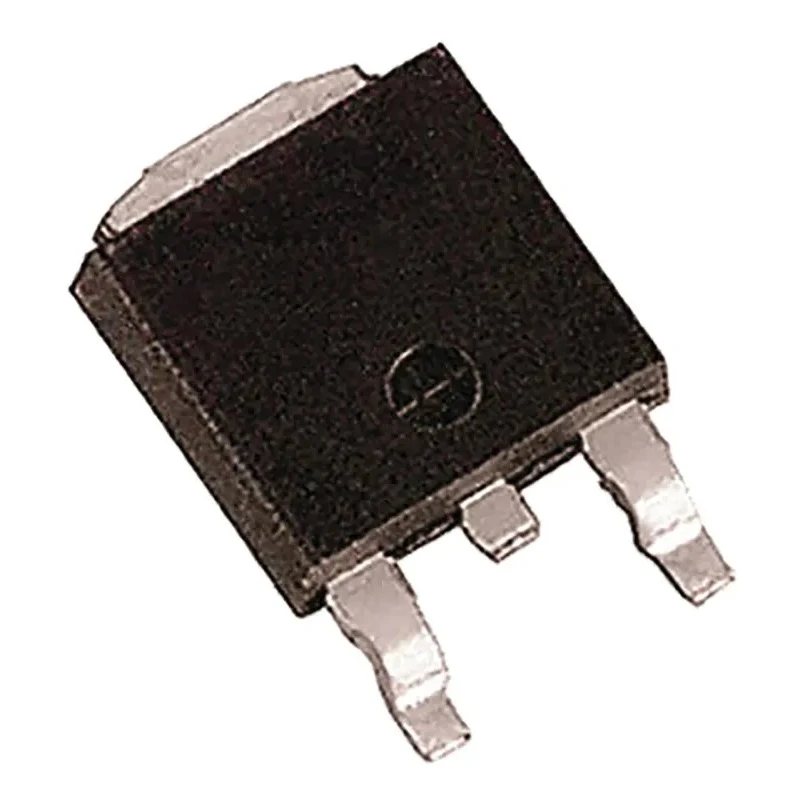

STMicroelectronics General Purpose Diode 100 V 20 A DPAK Surface Mount TO-252 FERD20H100SB-TR
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 6.22mm |
| Brand | STMicroelectronics |
| Height | 2.4mm |
| Length | 6.73mm |
| Model | FERD20H100SB-TR |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | FERD20H100S |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 20A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 16mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 150A |
| Maximum Forward Voltage Vf | 705mV |
Key Features
- Field Effect Rectifier with advanced low forward voltage drop.
- Stable leakage current across the entire reverse voltage range.
- Supports high-frequency operation for modern electronics.
- TO-252 DPAK surface mount package for compact PCB integration.
- Rated for maximum continuous forward current of 20 A.
- Peak reverse repetitive voltage up to 100 V.
- Automotive standard AEC-Q101 compliant for harsh environments.
- Ideal for battery chargers, compact adapters, and switched-mode power supplies.
Product Description
STMicroelectronics FERD20H100SB-TR is a high-performance general purpose diode designed for demanding industrial and electronic applications requiring stable rectification. Built using advanced Field Effect Rectifier technology, this diode delivers a unique combination of low forward voltage drop and reduced leakage current, making it ideal for energy-efficient designs.
This model offers a maximum continuous forward current If of 20 A and a peak reverse repetitive voltage Vrrm of 100 V, providing robust capability for high-power rectification. The diode is configured as a single unit in a 3-pin DPAK (TO-252) surface mount package, allowing easy integration into compact PCBs and modern electronic assemblies.
The FERD series is engineered to meet stringent efficiency standards without requiring synchronous rectification, supporting designers in achieving compliance with programs like Energy Star 6.0. Its stable leakage current over the entire reverse voltage range enhances reliability in long-term operation.
Peak non-repetitive forward surge current is rated at 150 A, and the device withstands operating temperatures from -65°C to 175°C. Its maximum forward voltage is maintained at 705 mV, ensuring minimal power loss during conduction. Additional compliance with Automotive Standard AEC-Q101 ensures robust performance in harsh environments.
Typical applications include smartphone and tablet battery chargers, compact adapters, switched-mode power supplies, and any electronic circuit that demands high-efficiency rectification in a surface-mount configuration. The diode's excellent high-frequency operation supports fast and reliable switching.
With its precision engineering and proven reliability, the STMicroelectronics FERD20H100SB-TR is the preferred choice for industrial, commercial, and automotive electronic systems.
Field Effect Rectifier technology for efficiency. Low forward voltage drop reduces power loss. Stable leakage current for long-term reliability. Surface mount TO-252 DPAK package simplifies assembly. High-frequency operation meets modern design needs.
Explore more Schottky diodes and rectifiers from STMicroelectronics at EnvMart to optimize your designs for efficiency and reliability.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the FERD20H100SB-TR is 20 A.
This model has a peak reverse repetitive voltage rating of 100 V.
The dimensions of the TO-252 DPAK package are 6.73 mm in length, 6.22 mm in width, and 2.4 mm in height.
The operating temperature range for the FERD20H100SB-TR is from -65°C to 175°C.
This model is classified as a general purpose rectifier.
The maximum forward voltage drop for this diode is 705 mV, which helps to minimize power loss during conduction.
The peak non-repetitive forward surge current rating for this diode is 150 A.
Yes, the FERD20H100SB-TR is compliant with the Automotive Standard AEC-Q101.
This diode has a pin count of 3.
The peak reverse current for the FERD20H100SB-TR is rated at 16 mA.
This diode is suitable for applications such as battery chargers, compact adapters, and switched-mode power supplies.
The country of origin for the FERD20H100SB-TR is India.
