| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 0.45mm |
| Length | 1.4mm |
| Model | BAS40L-HG3-08 |
| Width | 0.6mm |
| Mount Type | Surface |
| Series | BAS40L |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 300mA |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 500mA |
| Maximum Forward Voltage Vf | 1V |

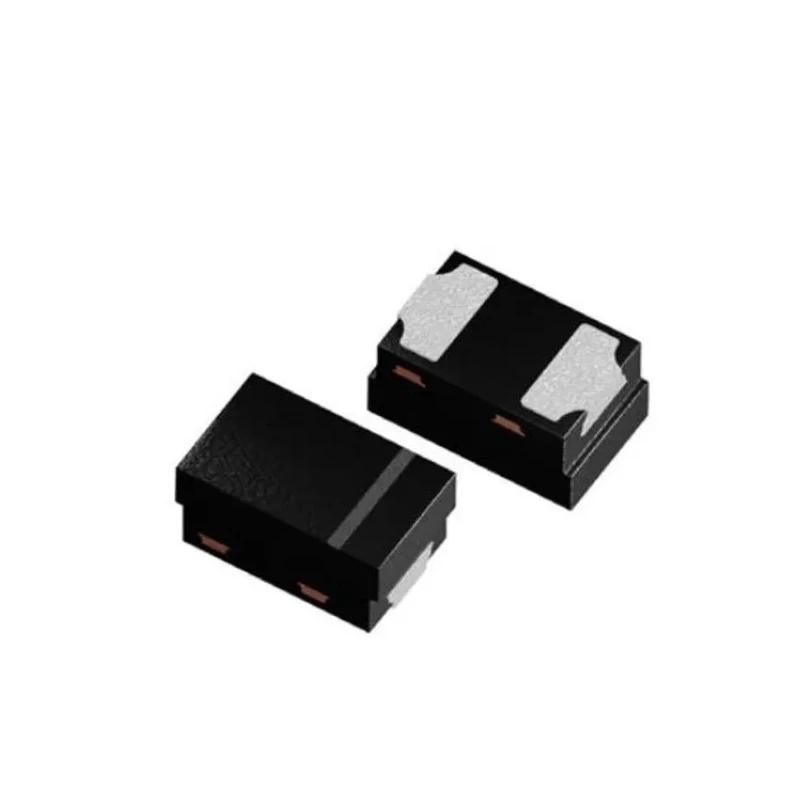

Vishay BAS40L-HG3-08 is a high-performance Schottky diode designed for surface mount applications, featuring a maximum reverse voltage of 40V and a continuous forward current of 300mA. The device is provided in a compact, leadless DFN1006-2A package, enabling designers to save PCB space while maintaining performance in fast switching and low voltage circuits.
40V peak reverse repetitive voltage (Vrrm) ensures circuit protection. 300mA maximum continuous forward current (If) supports small signal rectification. Single diode configuration simplifies integration in high-speed switching applications.
Low forward voltage (Vf) of 1V minimizes power loss during operation. Ultra-small DFN package (1.4mm × 0.6mm × 0.45mm) suits miniature designs. Wide operational temperature range from -55°C to 150°C for robust performance.
AEC-Q101 automotive standard guarantees reliability in automotive and industrial environments.
The Vishay BAS40L-HG3-08 Schottky diode is ideal for applications including signal rectification, voltage clamping, circuit protection, and fast switching in electronic devices and automotive systems. Its leadless ultra-small package supports high-density assemblies and is particularly advantageous for power-efficient portable and embedded devices.
Industrial, automotive, laboratory, and commercial sectors benefit from the diode's fast response, reliable performance, and robust build quality. Featuring PN junction guard protection against electrostatic discharges and very low turn-on voltage, this component is suitable for demanding circuitry and environments.
