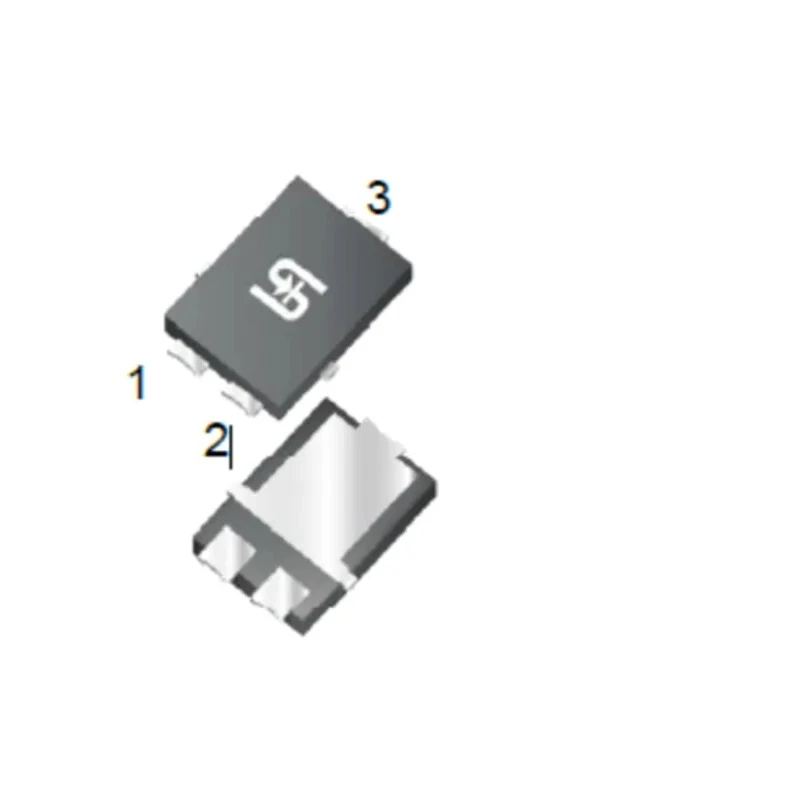

Taiwan Semiconductor Schottky Diode 45V 10A, 3-Pin SMPC4, PCB Mount TSUP10M45SH
Specifications
| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 1mm |
| Length | 4.45mm |
| Model | TSUP10M45SH |
| Width | 6.35mm |
| Mount Type | PCB |
| Maximum Operating Temperature | 175°C |
| Package Type | SMPC4 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 10A |
| Peak Reverse Repetitive Voltage Vrrm | 45V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 9mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 330A |
| Maximum Forward Voltage Vf | 0.6V |
| Moisture Sensitivity Level | level 1, per J-STD-020 |
| Halogen-free | IEC 61249-2-21 |
Key Features
- Schottky barrier diode providing low forward voltage drop and fast switching response.
- Supports a continuous forward current of up to 10A for high-power circuits.
- 45V peak reverse voltage ensures robust performance in demanding environments.
- SMPC4 surface-mount package with wettable flanks for easy PCB assembly.
- Exceeds automotive AEC-Q101 standards, suitable for high-reliability use.
- Halogen-free and RoHS compliant for sustainable electronic design.
- Operates reliably from -55°C to 175°C, meeting industry thermal requirements.
- Moisture sensitivity level 1, per J-STD-020, for optimal manufacturing.
Product Description
Taiwan Semiconductor TSUP10M45SH is a high-performance Schottky diode engineered for efficient rectification and fast-switching operations in electronic circuits. Delivering a continuous forward current of 10A and capable of withstanding a peak reverse repetitive voltage of 45V, this diode is ideal for power management and protection in demanding applications.
The device features a robust 3-pin SMPC4 surface-mount package with wettable flanks, facilitating reliable integration into PCB designs. Its low forward voltage drop of 0.6V ensures minimized power loss and improved efficiency in power conversion circuits. With support for a peak non-repetitive forward surge current of 330A, the TSUP10M45SH provides superior reliability in high-stress environments.
Schottky barrier technology enables fast switching and low power dissipation. 10A maximum continuous forward current supports high-demand loads. 45V peak reverse repetitive voltage offers strong protection against reverse voltage spikes.
Package conforms to SMPC4 standards, fitting seamlessly into compact electronic assemblies. Compatible with automotive AEC-Q101 reliability standard, suitable for automotive and industrial electronics. Halogen-free design according to IEC 61249-2-21 and RoHS certification ensures compliance with environmental regulations.
Operates across -55°C to 175°C, making it suitable for extended temperature ranges in industrial, laboratory, and commercial systems. Moisture sensitivity level 1, per J-STD-020, for ease of manufacturing and storage.
The TSUP10M45SH is well-suited for use in power supply rectification, voltage protection, switch mode power supplies (SMPS), and battery-powered electronics. Its durability and automotive-grade rating make it an excellent choice for sectors such as industrial automation, laboratory instrumentation, commercial equipment, and automotive control units.
For those seeking a reliable Schottky diode that combines advanced performance with rigorous compliance standards, Taiwan Semiconductor's TSUP10M45SH stands out in the category of discrete semiconductors and rectifiers.
Explore more Schottky diodes and discrete semiconductor products from Taiwan Semiconductor and other industry leaders in the Schottky Diodes & Rectifiers category at EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TSUP10M45SH supports a maximum continuous forward current of 10A.
The diode has a length of 4.45mm, a width of 6.35mm, and a height of 1mm.
It operates reliably within a temperature range of -55°C to 175°C.
The TSUP10M45SH is packaged in a 3-pin SMPC4 surface-mount package.
The maximum forward voltage drop is 0.6V.
Yes, it exceeds automotive AEC-Q101 standards, making it suitable for high-reliability automotive applications.
The moisture sensitivity level is 1, per J-STD-020, which is optimal for manufacturing.
This diode can handle a peak non-repetitive forward surge current of 330A.
It is suitable for power supply rectification, voltage protection, switch mode power supplies (SMPS), and battery-powered electronics.
Yes, it is halogen-free according to IEC 61249-2-21 and is RoHS compliant.
The diode configuration is single, designed for efficient rectification.
