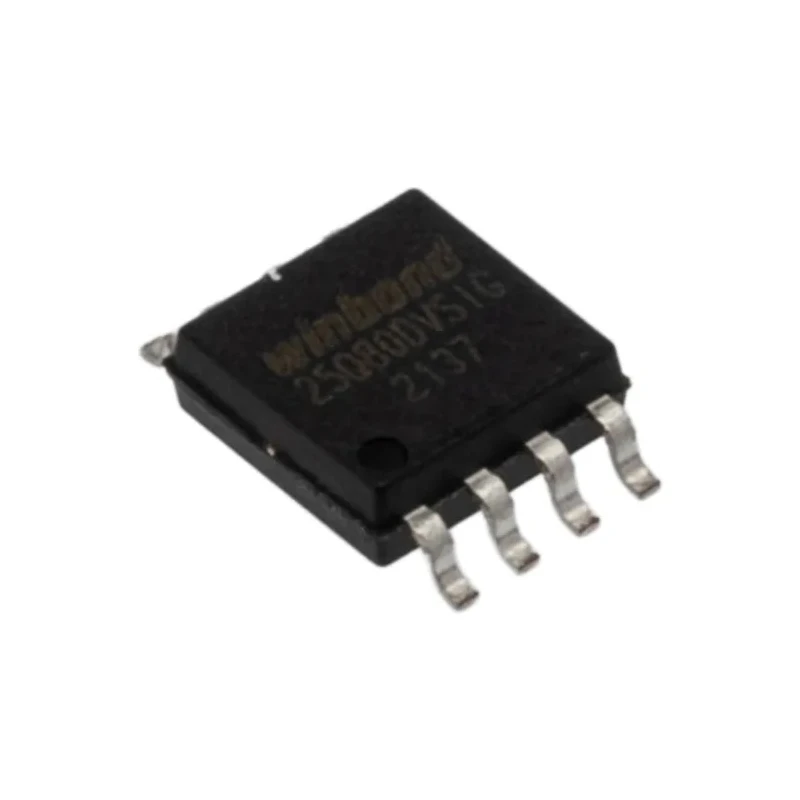

Winbond NOR 8 MB SPI Flash Memory 8-Pin SOIC W25Q80DVSSIG/TRAY

Winbond W25Q80DVSSIG/TRAY is a high-performance 8 M-bit NOR SPI Flash Memory chip supplied in an 8-Pin SOIC surface-mount package optimized for electronic and embedded applications needing efficient non-volatile storage.

This flash memory features a 1M x 8 bit organisation and operates at clock speeds up to 104MHz, facilitating rapid read and write operations. The device supports Single, Dual, and Quad SPI modes enabling data transfer rates up to an equivalent of 416MHz with Quad I/O Read. It includes uniform 4KB erasable sectors and larger 32KB/64KB erasable blocks, combined with fast page program times of approximately 0.8ms.

The wide supply voltage range from 2.7V to 3.6V coupled with the industrial operating temperature range of -40°C to +85°C ensures reliable operation in harsh environments. The memory supports erase/program suspend and resume functions allowing efficient multitasking. Hardware and software write protection features guard the top or bottom protected blocks, enhancing security alongside factory-programmed unique IDElectronic ID.

The compact SOIC package measures just 5.38mm length, 4mm width, and 1.91mm height, making it suitable for space-constrained PCB designs. With very low power consumption including 1μA power down current and 25mA supply current during operation, it is ideal for battery-operated devices as well.

This Winbond serial flash memory is widely used in consumer electronics, industrial controls, automotive electronics, and other embedded systems requiring fast, stable, and secure code and data storage.

Memory size 8MB with 1M x 8 bit organisation. Dual and Quad SPI interface for high-speed data access. Operating frequency up to 104MHz and equivalent 416MHz Quad I/O Read. Wide voltage supply from 2.7V to 3.6V. Extended industrial temperature range -40 to 85°C.

Suspend/resume erase/program for flexible operation. Hardware/software write protection with factory-programmed unique ID. Compact 8-Pin SOIC package dimensions 5.38 x 4 x 1.91 mm. Low power consumption suited for embedded and portable devices.

Applications include embedded systems, consumer electronics, automotive, and industrial equipment. Explore more from Winbond and other flash memory products in the Flash Memory category at EnvMart for reliable semiconductor solutions.
