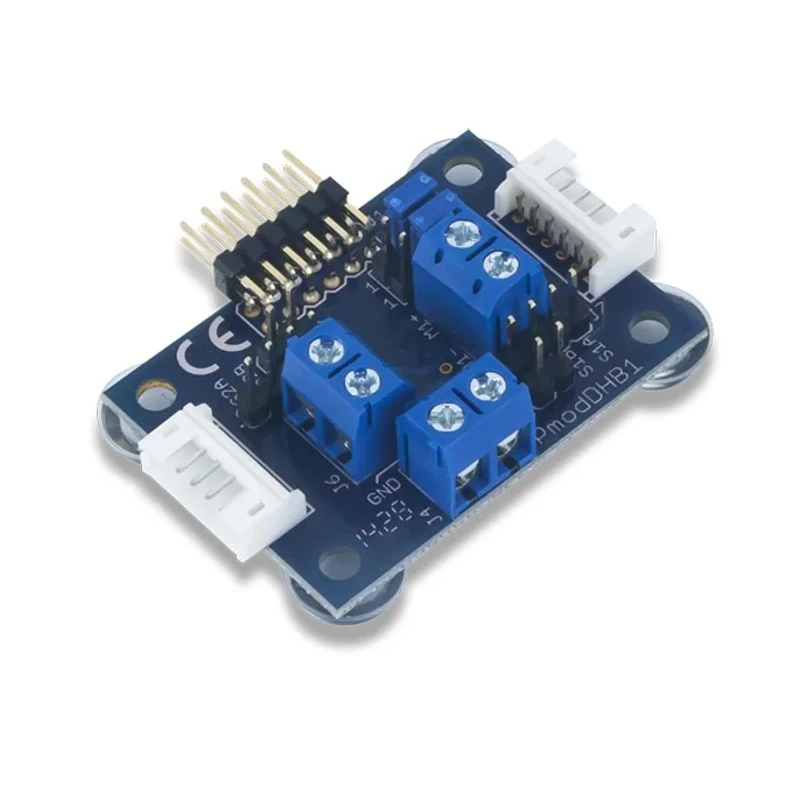

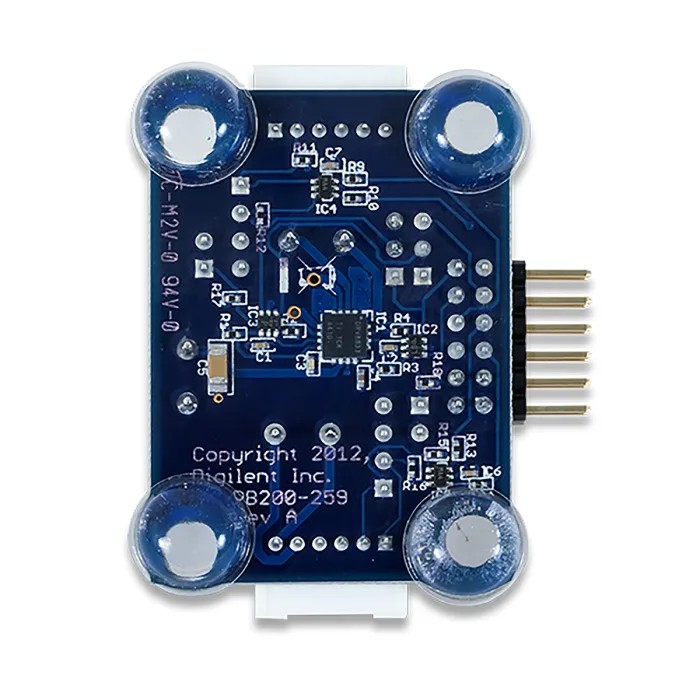

Digilent PmodDHB1 Module Half-Bridge Driver for DRV8833 Dual H-Bridge Motor Driver PmodDHB1

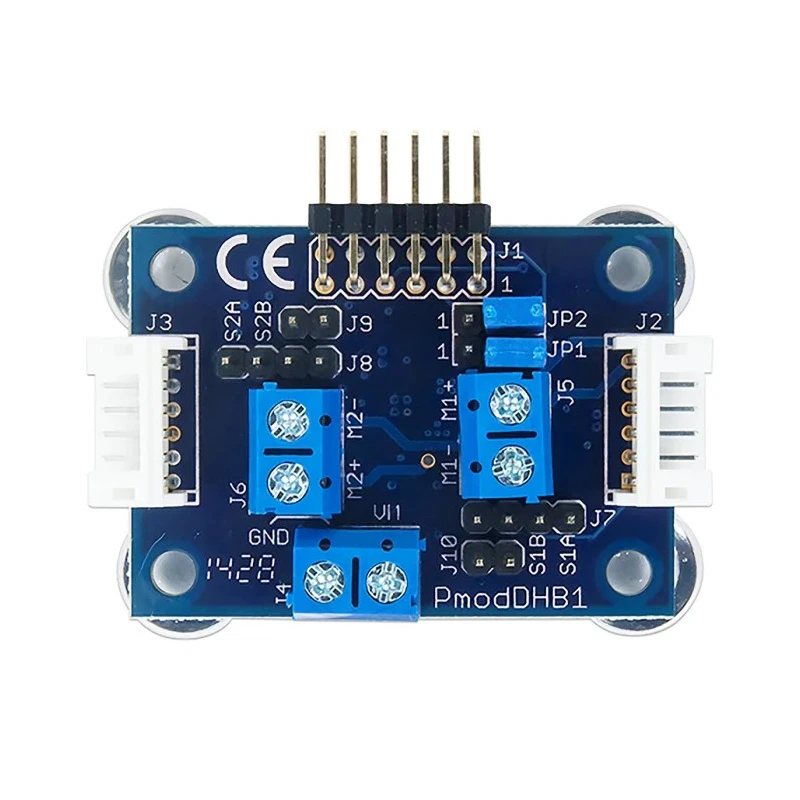

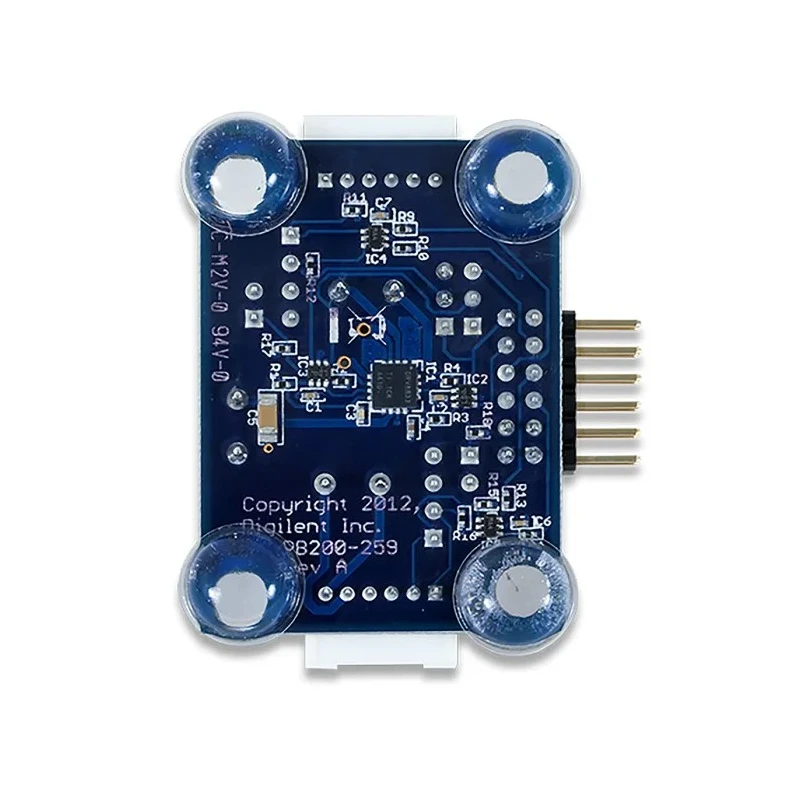

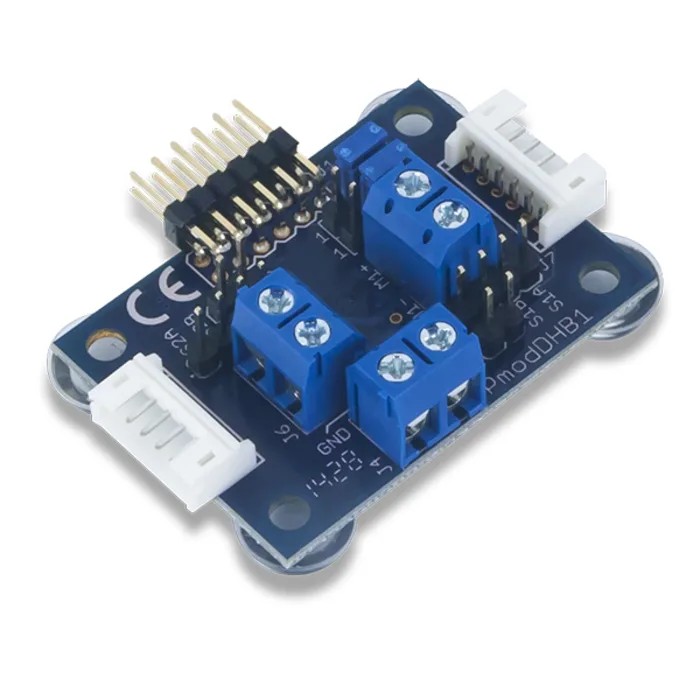

Digilent PmodDHB1 Module Half-Bridge Driver (Model: PmodDHB1) is a compact development kit designed to drive two DC motors or a single stepper motor using the Texas Instruments DRV8833 dual H-Bridge motor driver chip. It delivers reliable motor control with a dual H-Bridge capable of 1.5A RMS current, suitable for small to medium power applications in robotics, motor control systems, and STEM education projects.

The module includes two quadrature encoder channels for precise motor feedback, enhancing control accuracy. Two JST 6-pin ports allow easy connection to Digilent motors or gearboxes. Over-current protection safeguards the module during motor stall or overload scenarios, ensuring durability and safety. It operates at a recommended maximum motor voltage of 10.8 V, with a logic input voltage range from 2.5 V to 5 V, making it compatible with a wide range of controllers and microprocessors.

The PmodDHB1 features a small PCB size of 3.3 cm by 4.6 cm to support flexible design integration while following the Digilent Pmod Interface Specification Type 5. This enables easy interfacing with various Digilent development boards and systems.

This module is ideally suited for industrial, laboratory, educational, and robotics applications that require compact, efficient, and precise motor drive solutions. Its dual H-Bridge architecture supports driving DC motors independently or controlling a stepper motor in bipolar configuration, expanding versatility.

Key features such as current limiting, motor feedback, and compact design make this module a practical component for electronic and robotics developers aiming to build efficient motor control systems.

Uses Texas Instruments DRV8833 dual H-Bridge motor driver chip. Dual H-Bridge capable of 1.5A RMS current. Includes two quadrature encoder channels for motor feedback. Two JST 6-pin ports allow connection to Digilent motor or gearbox.

Over-current protection ensures device safety. Recommended maximum motor voltage of 10.8 V for optimal operation. Logic input voltage range from 2.5 V to 5 V supports various logic levels. Compact PCB size of 3.3 cm x 4.6 cm enables flexible integration.

Follows Digilent Pmod Interface Specification Type 5 for compatibility. Ideal for robotics, motor control, and educational development projects. Explore the range of Digilent Power, Motor & Robotics Development Tools for advanced motor driving solutions on EnvMart.
