STMicroelectronics Motor Configuration Brushless DC Motor Evaluation Board X-NUCLEO-IHM11M1

Free Delivery in India | Lowest Global Shipping Charges

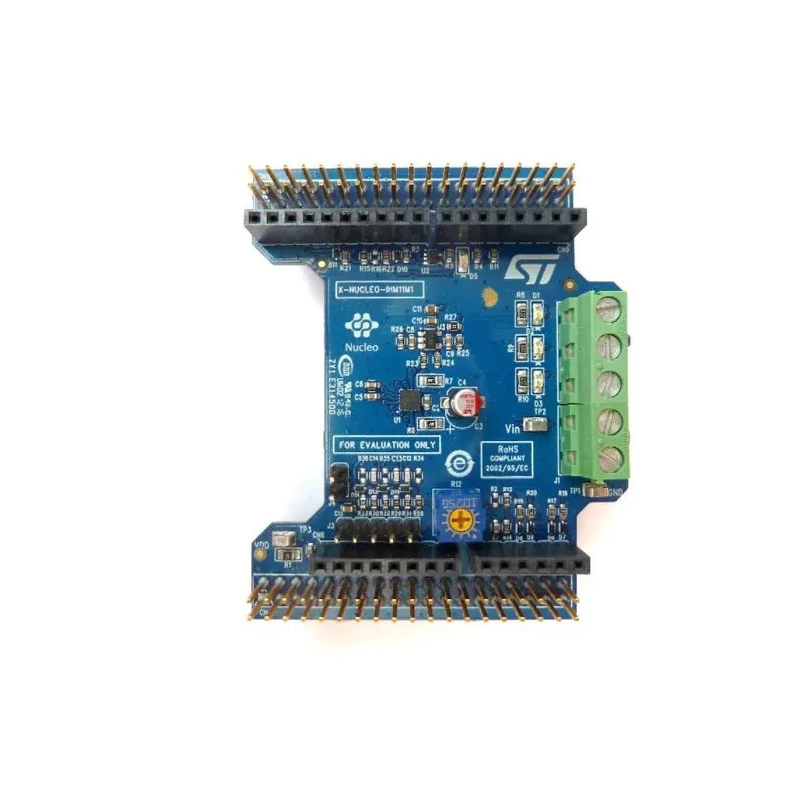

STMicroelectronics Motor Configuration Brushless DC Motor Evaluation Board X-NUCLEO-IHM11M1

Name: STMicroelectronics Motor Configuration Brushless DC Motor Evaluation Board X-NUCLEO-IHM11M1
Brand: STMicroelectronics
SKU: 209582
Price: 20.09 USD
Availability: InStock



Category Motor Driver Boards Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Model	X-NUCLEO-IHM11M1
Output Current	1.3 Arms
For Use With	STM32 Nucleo
Standards/Approvals	RoHS
Kit Classification	Evaluation Board
Featured Device	STSPIN230
Kit Name	Motor Configuration

Key Features

This expansion board operates on low voltage from 1.8V to 10V DC.
Supports three-phase brushless DC motor control with up to 1.3 Arms output current.
Provides adjustable off-time current control for optimized motor performance.
Includes low standby consumption mode for battery-powered applications.
Complies with RoHS standards ensuring environmental safety.
Designed as an evaluation board for motor configuration in embedded development.
Compatible specifically with STM32 Nucleo development kits.

Product Description

STMicroelectronics X-NUCLEO-IHM11M1 is a dedicated brushless DC motor driver expansion board designed for motor configuration applications using the STSPIN230 triple half-bridge chip. This motor driver board is intended for use with STM32 Nucleo development kits, providing a comprehensive solution for controlling three-phase brushless DC motors.

The board operates efficiently at a low voltage range of +1.8 to +10 V DC and supports a maximum output current of 1.3 Arms, making it suitable for compact and battery-powered applications. It incorporates adjustable off-time current control, allowing precise motor current management to enhance performance and efficiency. Additionally, the device can enter a zero-consumption standby state, significantly extending battery life in portable systems.

This evaluation board complies with RoHS environmental standards, ensuring it meets strict ecological guidelines. It is classified as an evaluation board and is part of the motor configuration kit category, designed specifically for embedded development and prototyping within industrial, robotics, and electronics sectors.

Key applications include motor control development, power management in embedded systems, and educational purposes in STEM development tools. The X-NUCLEO-IHM11M1 offers developers a flexible and reliable platform to experiment with brushless DC motors integrating seamlessly with the STM32 Nucleo ecosystem.

This expansion board operates on a low-voltage range of 1.8 to 10 V DC. Supports a maximum output current of 1.3 Arms. Features adjustable off-time current control for optimized motor operation. Includes a low power standby mode for extended battery life.

Designed specifically for use with STM32 Nucleo development kits. Complies with RoHS standards ensuring environmental compliance. Based on the STSPIN230 triple half-bridge motor driver chip. Explore a wide range of Motor Driver Boards and evaluation kits on EnvMart for all your embedded motor development needs.
