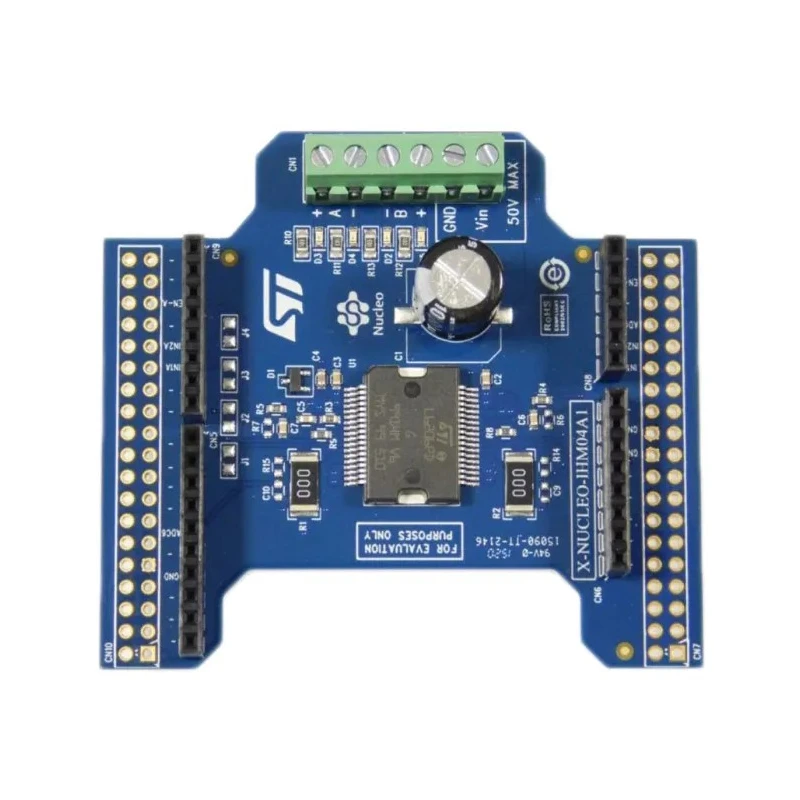

STMicroelectronics Motor Driver Expansion Board X-NUCLEO-IHM04A1 for L6206 DC and Stepper Motors, 8 - 50V, 2.5A, STM32 Nucleo
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Model | X-NUCLEO-IHM04A1 |
| Output Current | 2.5 A per half-bridge |
| For Use With | STM32 Nucleo |
| Standards/Approvals | RoHS |
| Kit Classification | Evaluation Board |
| Featured Device | L6206 |
| Kit Name | Motor Configuration |
| PWM Control Frequency | 100 kHz |
Key Features
- Supports DC and stepper motor control with L6206 quad half-bridge driver.
- Up to 2.5A output per half-bridge for high-current motor applications.
- Wide supply voltage range from 8V to 50V DC for multiple motor types.
- PWM control frequency up to 100kHz for precise speed regulation.
- Integrated protection circuits including overcurrent, thermal, and undervoltage lockout.
- Compatible with STM32 Nucleo MCU platforms and Arduino Uno R3 shields.
- Jumper links and screw terminals for easy configuration and connection.
- Motor activity LEDs provide clear operational feedback.
Product Description
STMicroelectronics X-NUCLEO-IHM04A1 is a versatile motor driver expansion board designed for STM32 Nucleo microcontroller platforms, supporting both brushed DC and stepper motor operation. Utilizing the L6206 DMOS quad half-bridge driver, this board allows for precise motor control in industrial automation, robotics, and laboratory equipment.
The board can be configured to drive multiple types and numbers of motors: up to 2 x bidirectional 2.5A brushed DC motors, 4 x unidirectional 2.5A brushed DC motors, 2 x unidirectional 5A brushed DC motors, 1 x unidirectional 10A brushed DC motor, or 1 x 2.5A bipolar stepper motor. Motor supply voltage ranges from 8V to 50V DC, providing compatibility for various motor choices and applications.
Key features include PWM control frequencies up to 100kHz, programmable high-side overcurrent detection and protection, cross-conduction protection circuits, undervoltage lockout, thermal shutdown for safe operation, and integrated inductive-load protection diodes. The expansion board is equipped with shield headers for Arduino Uno R3 compatibility along with STM32 Nucleo MCU boards, offering flexibility for development and experimentation.
Interface components such as jumper links for motor configuration and screw terminals for signal and power connections enhance ease of installation. The board also features activity LEDs for motor status indication. These capabilities make the X-NUCLEO-IHM04A1 suitable for industrial, laboratory, educational, and robotics environments requiring reliable and adaptable motor control solutions.
Applications include direct current motor control, stepper motor drive, laboratory instrumentation, industrial automation, robotics prototyping, and embedded system evaluation. The robust protection suite ensures prolonged operational reliability under demanding electrical conditions.
Browse more STM32 Nucleo-compatible boards and motor driver solutions in the Motor Driver Boards category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can deliver up to 2.5 A per half-bridge, allowing for high-current motor applications.
It supports a wide supply voltage range from 8V to 50V DC, accommodating various motor types.
It is compatible with STM32 Nucleo microcontroller platforms and Arduino Uno R3 shields.
The board supports PWM control frequencies of up to 100 kHz for precise speed regulation.
This unit can control up to 2 x bidirectional 2.5A brushed DC motors, 4 x unidirectional 2.5A brushed DC motors, 2 x unidirectional 5A brushed DC motors, 1 x unidirectional 10A brushed DC motor, or 1 x 2.5A bipolar stepper motor.
It includes overcurrent protection, thermal shutdown, undervoltage lockout, and inductive-load protection diodes for safe operation.
The board features jumper links for motor configuration and screw terminals for easy signal and power connections.
The X-NUCLEO-IHM04A1 is manufactured in India.
This model is classified as an Evaluation Board, designed for testing and development purposes.
It complies with RoHS standards, ensuring it meets environmental regulations.
It is suitable for applications in industrial automation, robotics, laboratory instrumentation, and embedded system evaluation.
The featured device in this model is the L6206 DMOS quad half-bridge driver, which enables its motor control capabilities.
