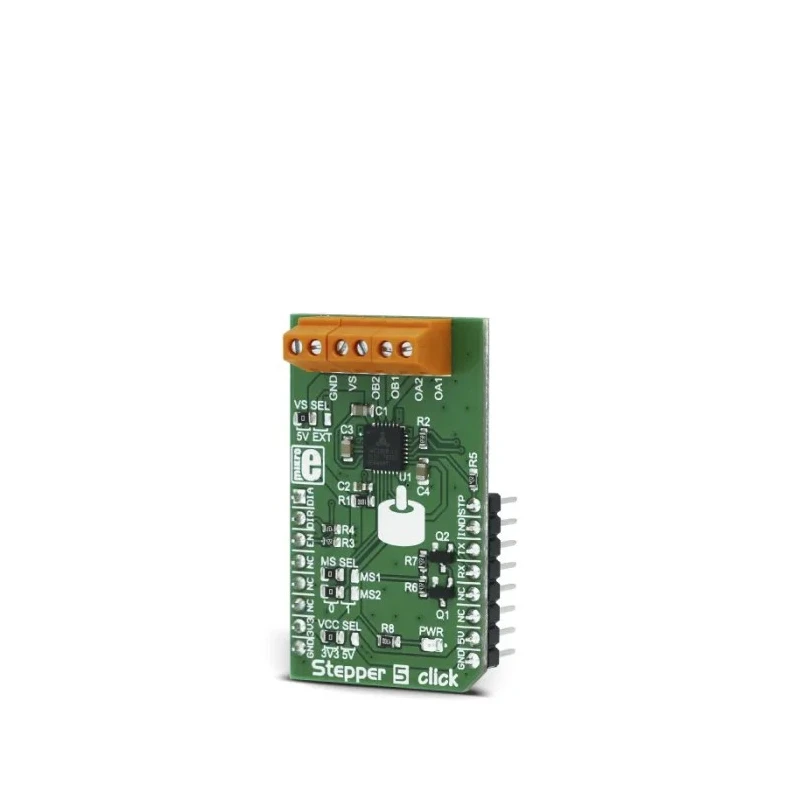

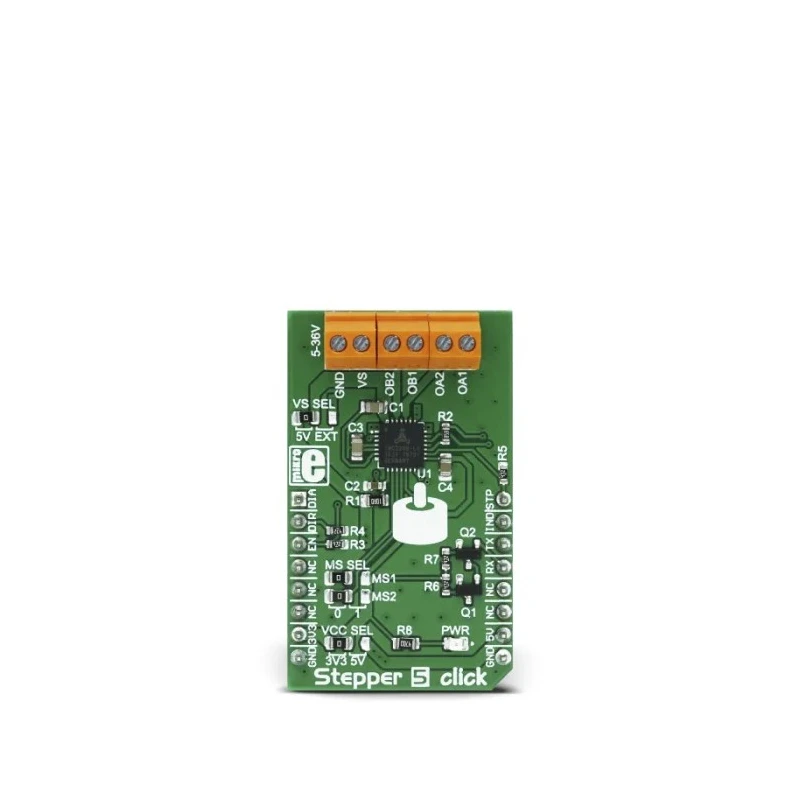

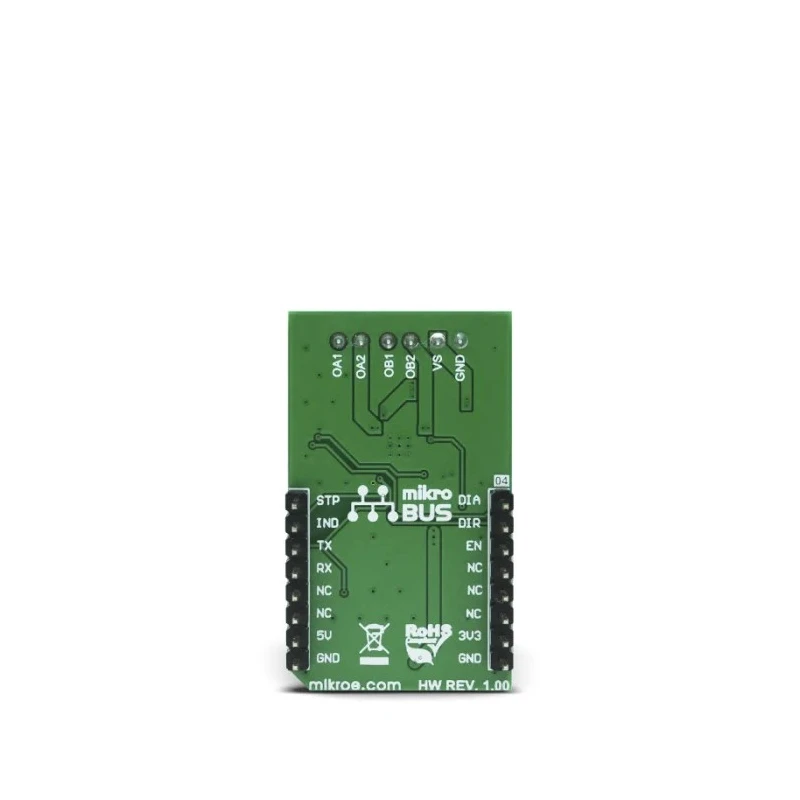

MikroElektronika Stepper 5 Click Board Stepper Motor Driver for TM2208, 2-Phase, 2A Peak, 4.75 - 36V DC, MIKROE-2624

MikroElektronika MIKROE-2624 Stepper 5 Click Board is a high-performance stepper motor driver module designed specifically for applications requiring precision and silent motor operation. Centered around the TM2208 driver IC, this board enables advanced stepper motor control in CNC plotters, milling machines, 3D printers, and office automation setups. The reliable performance and versatility make it suitable for laboratory, manufacturing, HVAC, and security systems.

With a 2-phase configuration and a peak coil current of 2A, the board supports a broad voltage range (4.75 - 36V DC), making it compatible with various industrial power standards. Multiple microstepping options (2, 4, 8, 16, or 32 microsteps) allow for fine-tuned positioning and smooth motor movement. The microPlyer™ interpolation enables a resolution of up to 256 microsteps, delivering exceptional precision in motor control tasks.

Silent operation is achieved through stealthChop2™ technology and spreadCycle™ dynamic chopper control, ensuring quiet performance without sacrificing torque or responsiveness. Built-in features include automatic standby current reduction, internal sense resistor options, passive braking and freewheeling, as well as an integrated pulse generator for standalone motion capability.

Advanced configuration is accessible via single-wire UART and OTP memory, facilitating custom motor profiles or diagnostics. Full protection mechanisms and error diagnostics add safety and reliability for mission-critical applications. The board is designed with low RDSon values (LS 280mΩ, HS 290mΩ typical at 25°C) for optimized efficiency and reduced heat generation.

Installation and integration are streamlined by the board's compact form factor, making it ideal for embedded systems and upgrades in 3D printers, CNC machines, textile equipment, surveillance systems (CCTV), ATMs, cash recycling stations, and HVAC controls. This module is compatible with a wide selection of stepper motor packages (QFN, TQFP, HTSSOP) and can serve both standalone systems and complex automation platforms.

Industrial sectors including manufacturing, robotics, laboratory automation, textile processing, security, and HVAC benefit from this robust driver board. The module comes with comprehensive protection and diagnostics, ensuring reliable operation in demanding environments.

Features TM2208 stepper driver for smooth and silent motor operation. Supports 2-phase stepper motors up to 2A coil current (peak). Wide voltage range (4.75 - 36V DC) for flexible integration. Configurable microstepping options (2, 4, 8, 16, 32) and advanced interpolation.

Automatic standby current reduction and integrated pulse generator. Low RDSon values for efficient, cool operation. Full protection and diagnostics for safe, reliable use. Compatible with CNC, milling, 3D printing, office automation, and HVAC applications.
