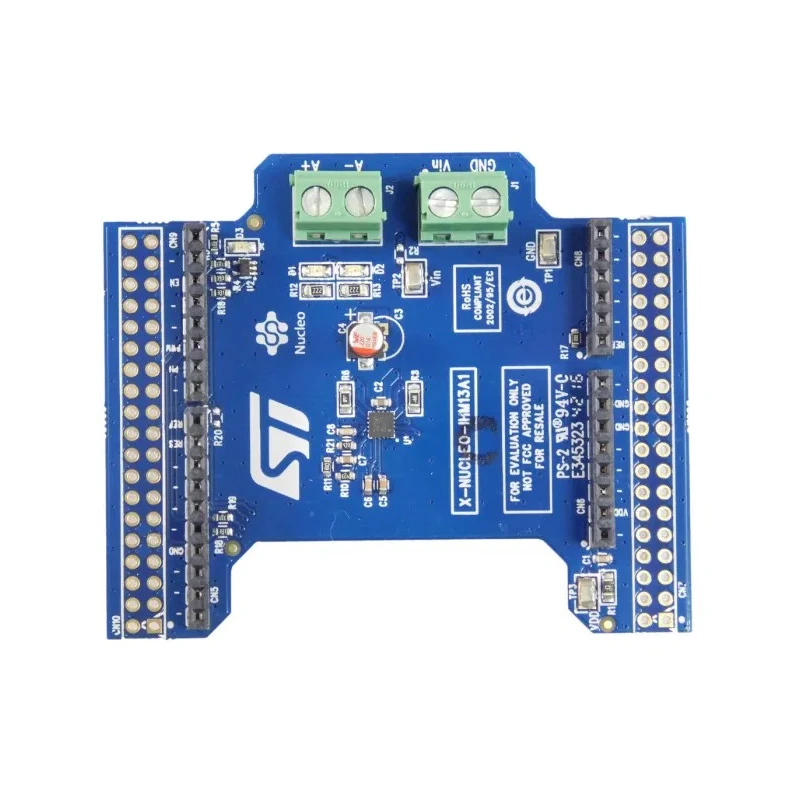

STMicroelectronics Motor Configuration DC Motor Expansion Board 1.8 to 10 Vdc, 2.6 Arms Output X-NUCLEO-IHM13A1

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics Motor Configuration DC Motor Expansion Board 1.8 to 10 Vdc, 2.6 Arms Output X-NUCLEO-IHM13A1

Name: STMicroelectronics Motor Configuration DC Motor Expansion Board 1.8 to 10 Vdc, 2.6 Arms Output X-NUCLEO-IHM13A1
Brand: STMicroelectronics
SKU: 209586
Price: 19.77 USD
Availability: InStock



Category Motor Driver Boards Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Model	X-NUCLEO-IHM13A1
For Use With	STM32 Nucleo
Standards/Approvals	RoHS
Kit Classification	Evaluation Board
Featured Device	STSPIN250
Kit Name	Motor Configuration

Key Features

The board operates with a voltage range of 1.8 to 10 Vdc.
Provides output current up to 2.6 Arms for driving low-voltage brushed DC motors.
Features current control with adjustable off-time for precise motor management.
Includes a low-power standby mode for reducing battery consumption in portable applications.
Designed as an evaluation board compatible with STM32 Nucleo development kits.
Compliant with RoHS standards ensuring environmental safety.
Utilizes the STSPIN250 quad half-bridge chip for reliable motor driving.

Product Description

The STMicroelectronics X-NUCLEO-IHM13A1 is a motor configuration DC motor expansion board designed for use with STM32 Nucleo development platforms. It is built on the efficient STSPIN250 quad half-bridge chip and is targeted at low-voltage brushed DC motor applications, especially those operating within a voltage range from 1.8 V to 10 V DC.

This evaluation board provides a maximum output current of 2.6 Arms and features current control with an adjustable off-time function, enabling precise regulation and efficient power management of connected motors. Its design supports battery-powered applications by offering a low consumption standby mode that helps to significantly extend battery life during periods of inactivity.

Thanks to the compact form factor and compatibility with STM32 Nucleo kits, the X-NUCLEO-IHM13A1 is ideal for rapid prototyping, education, robotics, and embedded motor control development. The board complies with RoHS environmental standards, ensuring safe use within environmentally conscious projects and industrial applications.

Key highlights include use of the STSPIN250 driver IC, adjustable current control, support for low-voltage DC motors, and energy-efficient standby operation. This expansion board is suitable for a variety of use cases including robotics, automation, portable devices, and experimental control systems requiring efficient brushed DC motor management.

The board operates with a voltage range of 1.8 to 10 V DC. Maximum output current capability of 2.6 Arms. Features current regulation with adjustable off-time control. Battery friendly standby mode reduces power consumption.

Compatible with STM32 Nucleo development kits for easy integration. Compliant with RoHS directives ensuring environmental safety. Utilizes the STSPIN250 quad half-bridge motor driver chip. Explore the STMicroelectronics category for more evaluation boards and motor drivers suitable for various industrial, robotics, and embedded applications on EnvMart.
