Microchip 8-bit PIC Microcontroller, 28kB FLASH, 20 MHz, 28-Pin SOIC PIC16F1518

Microchip PIC16F1518 is an 8-bit PIC microcontroller combining Microchip's enhanced mid-range RISC architecture with a 28kB Flash program memory and operating at a maximum clock frequency of 20 MHz. Intended for high-efficiency embedded systems, it supports up to 25 programmable I/O pins and includes 1kB RAM for data handling.

This microcontroller includes extensive peripherals such as a 17-channel 10-bit Analog to Digital Converter (ADC), multiple timer modules including two 8-bit and one 16-bit timer, and communication interfaces like SPI, I2C, and Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART). It features power-saving technologies such as Power-On Reset, Power-Up Timer, Low Power Brown-Out Reset, and an Extended Watchdog Timer to maintain reliable operation in diverse environments.

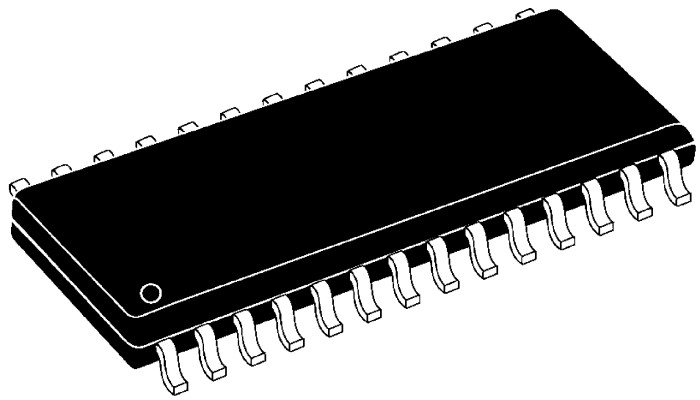

The device operates within a voltage range of 2.5V to 5.5V, making it suitable for low-power and battery-operated applications. It comes housed in a 28-Pin SOIC surface mount package with dimensions of 17.9 mm length, 7.5 mm width, and a height of 2.35 mm, facilitating compact PCB designs.

Designed for a wide range of uses including industrial automation, automotive systems, consumer electronics, and embedded control applications. The PIC16F1518 supports in-circuit serial programming and debugging, enhancing development efficiency.

This microcontroller is RoHS compliant and manufactured in Thailand under strict quality standards. Features 25 programmable I/O pins for versatile interfacing. Operates at a voltage range of 2.5V to 5.5V suitable for various applications.

Includes 1kB RAM for data storage during operation. Incorporates 17 channels of 10-bit ADC for analog input conversion. Supports multiple timers including two 8-bit and one 16-bit timer. Offers enhanced mid-range RISC architecture with 49 instructions.

Equipped with power management features including Power-On Reset and Low Power Brown-Out Reset. Designed for surface mount on standard 28-Pin SOIC package. Suitable for industrial, automotive, embedded system, and consumer electronics applications.

Certified RoHS compliant and manufactured in Thailand. Explore more Microcontrollers and electronic components to find the best fit for your project at EnvMart.
